volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73580
>
210000001
>

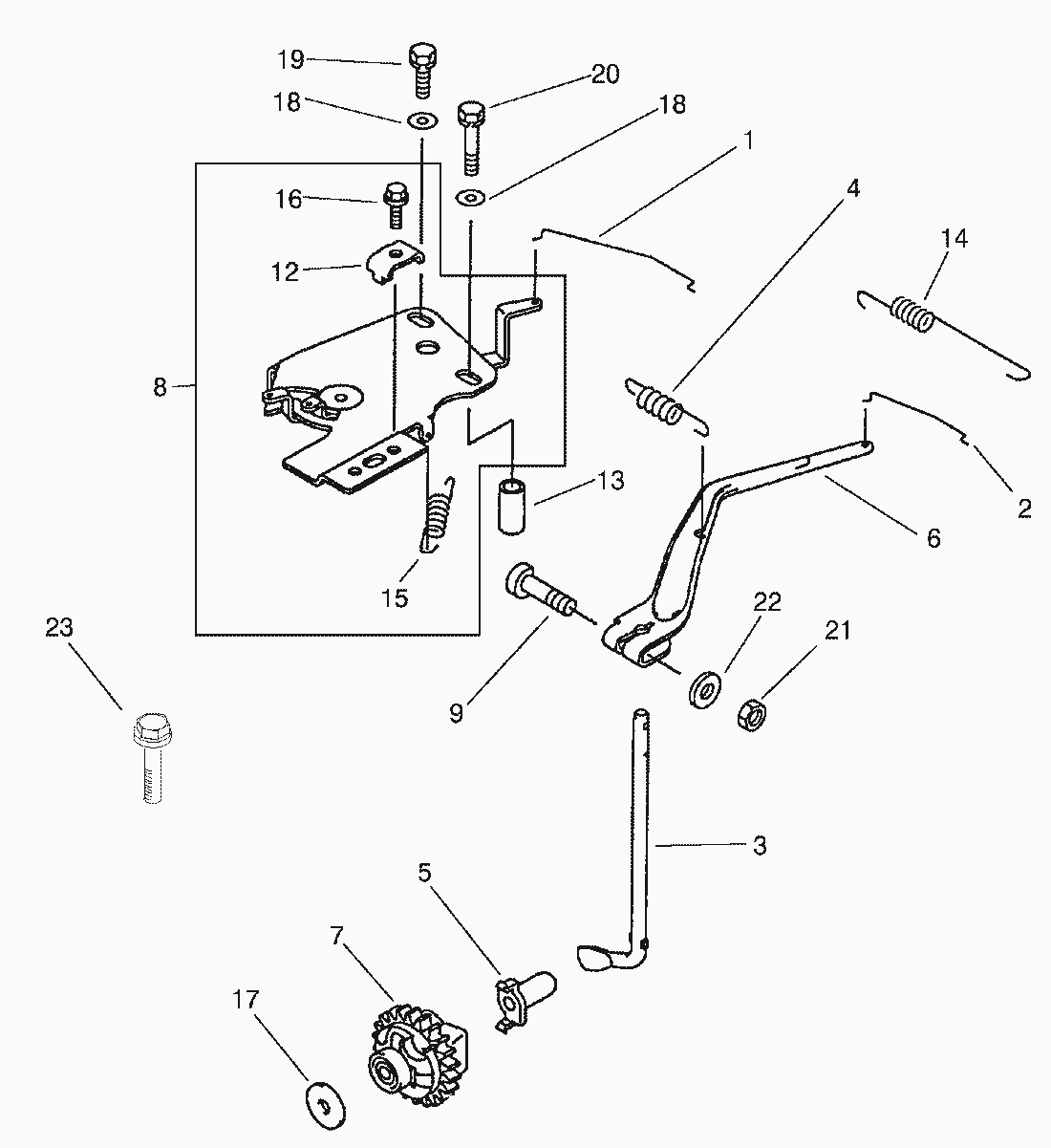

Governor Assy.
Lista de repuestos para Toro Roth / TORO Governor Assy.
pos.
descripción
Número de pieza
1
Link-Choke
95-9840
2
Link
95-9841
3
Arm-Pivot
98-7362
4
Spring-Governor
98-7363
5
Sleeve-Governor
KW10140
6
Arm-Governor
98-7364
7
Governor ASM
98-7365
8
Panel-Comp-Control
95-9846
9
Bolt
93-8606
12
Clamp
95-9849
13
Collar
95-9850
14
Spring
95-9851
15
Spring
95-9852
16
Bolt (Only On: 73545)
95-9853
17
Washer
93-8612
18
Washer
95-9854
19
Bolt-Upset-Ws
95-9855
20
Bolt-Upset-Ws
95-9856
21
Nut 6mm
KW10101
22
Washer
93-8645
23
Bolt 5x25
KW10028
