> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 210000001 > Fender, Footrest, & Seat Assy.

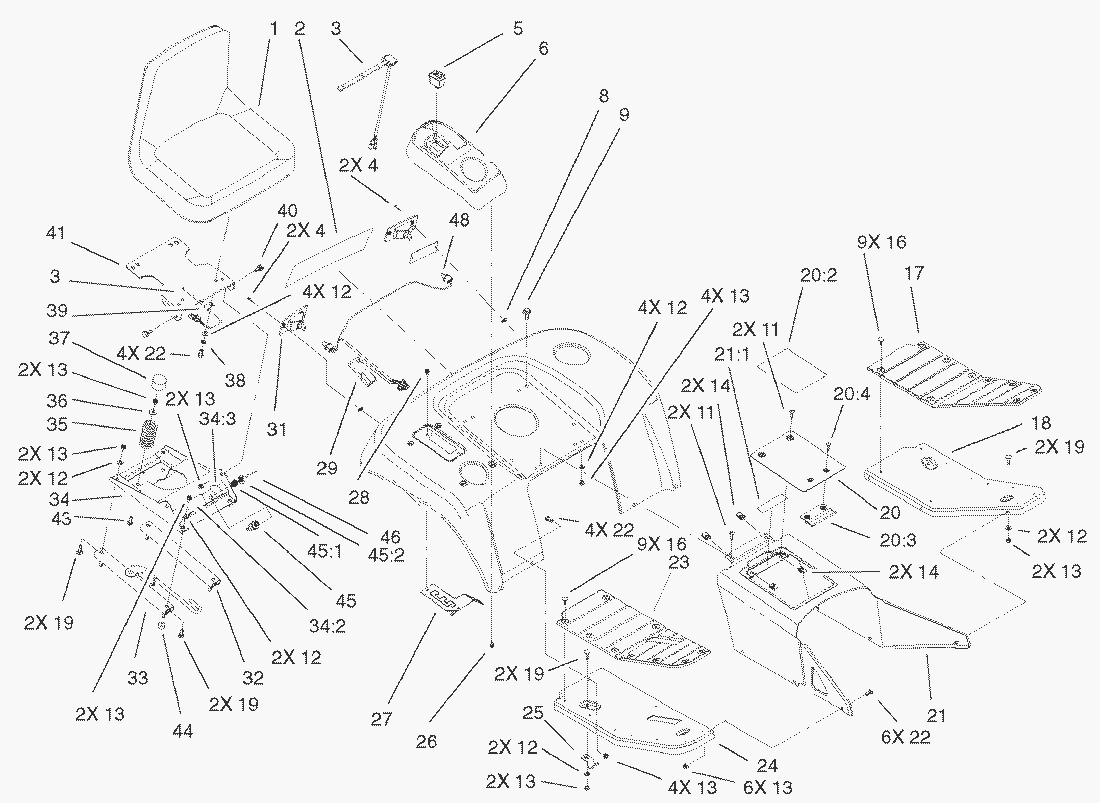

Lista de repuestos para Toro Roth / TORO Fender, Footrest, & Seat Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Seat V-811 (Only On: 73540, 73541)94-3518
2Decal-Fender95-4262
3Switch-Seat38-1420
4Screw3250-29
5Switch Cruise (Only On: 73540, 73541)94-7602
6Pod-Control (Only On: 73540)94-2120
6Pod-Control (Only On: 73541)95-4000
8Nut-Speed95-4115
9Screw-Hex Flange Hd.3234-29
11Screw-TTH92-7020
12Washer3256-23
13MUTTER3296-29
14Nut-Speed107069
16Fastener-Panel3290-479
17Pad-Footrest94-2096
18Footrest94-2090-01
19Carriage Bolt3230-16
20Tunnel Cover ASM (Only On: 73541)98-1623
20ASM Cover/Decal (Only On: 73471, 73542)99-6089
202Decal-Danger (Only On: 73541)98-1608
202Decal-Danger (Only On: 73471, 73542)99-6090
203Retainer-Cover95-4107
204Screw94-4496
21ASM-Tunnel w/Decal Europe (Only On: 73570)98-5058
21ASM-Tunnel w/Decal (Only On: 73471, 73542)98-5025
211Decal-Warning (Only On: 73541)98-5015
211Decal-Danger (Only On: 73470, 73540)80-8760
22Capscrew322-3
23Pad-Footrest94-2095
24Footrest94-2089-01
25Bracket-Footrest95-3858
26Screw32144-20
27Gate-Hi Lo Shift98-8711-03
28Screw Thread Forming32144-4
29Harness-Rear (Only On: 73542, 73570)99-3726
31Lamp-Taillight (Only On: 73540, 73541)94-2124
32Slide-Seat94-2112
33Seat Slide-Latch94-2177
