> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 210000001 > Cruise Control Assy.

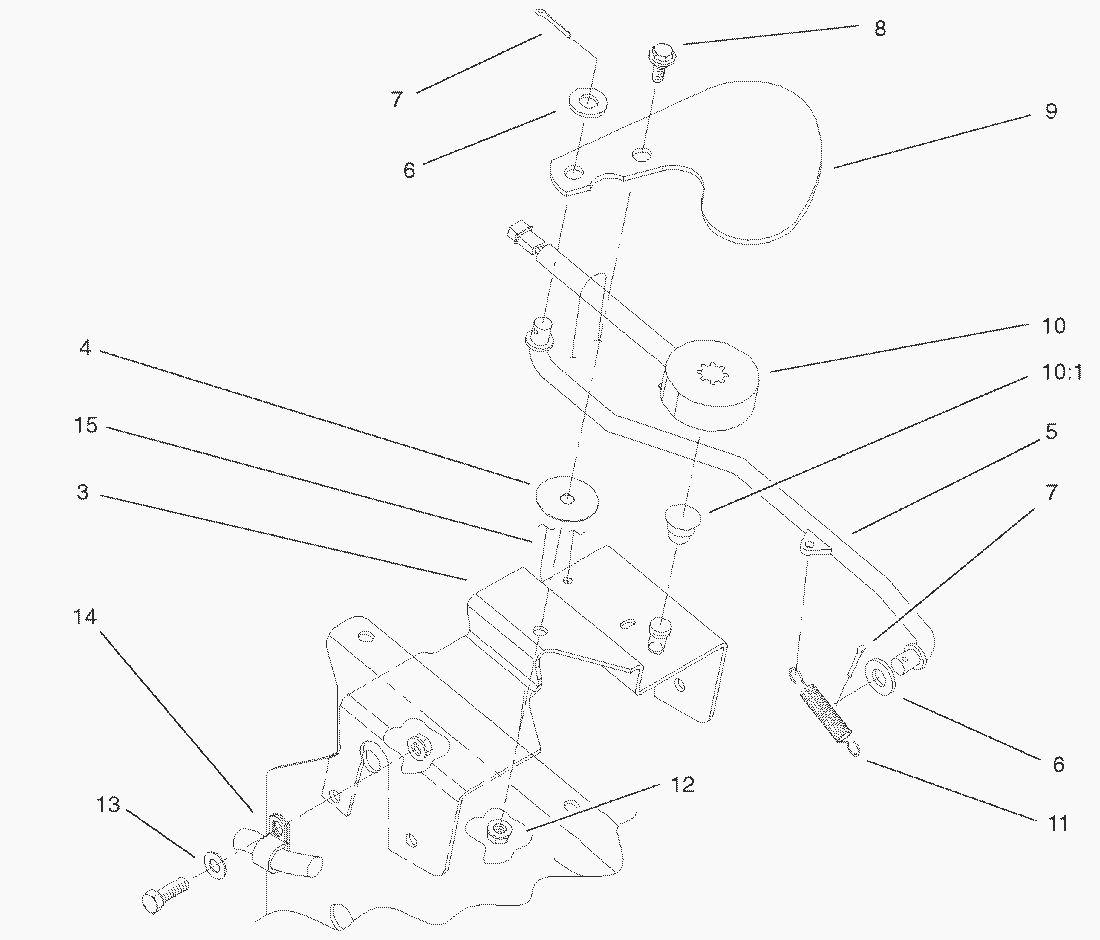

Lista de repuestos para Toro Roth / TORO Cruise Control Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
3Brkt-Cruise (Only On: 73542, 73570)99-6097-03
4Spacer-Cruise (Only On: 73540, 73541)94-7575
5Rod-Cruise Control (Only On: 73540, 73541)94-7980
6Washer3256-26
7Pin-Cotter3272-10
8Bolt-Shoulder94-7582
9Plate-Magnet (Only On: 73542, 73570)99-5309
10Magnet Assy (Only On: 73542, 73570)99-8090
101Spring-Conical (Only On: 72103)93-6601
11Spring (Only On: 73540, 73541)66-4160
12Nut-Lock108881
13Flat Washer3256-24
14Clamp-R98-2358
15Tie Strap614249
