Shifting Components

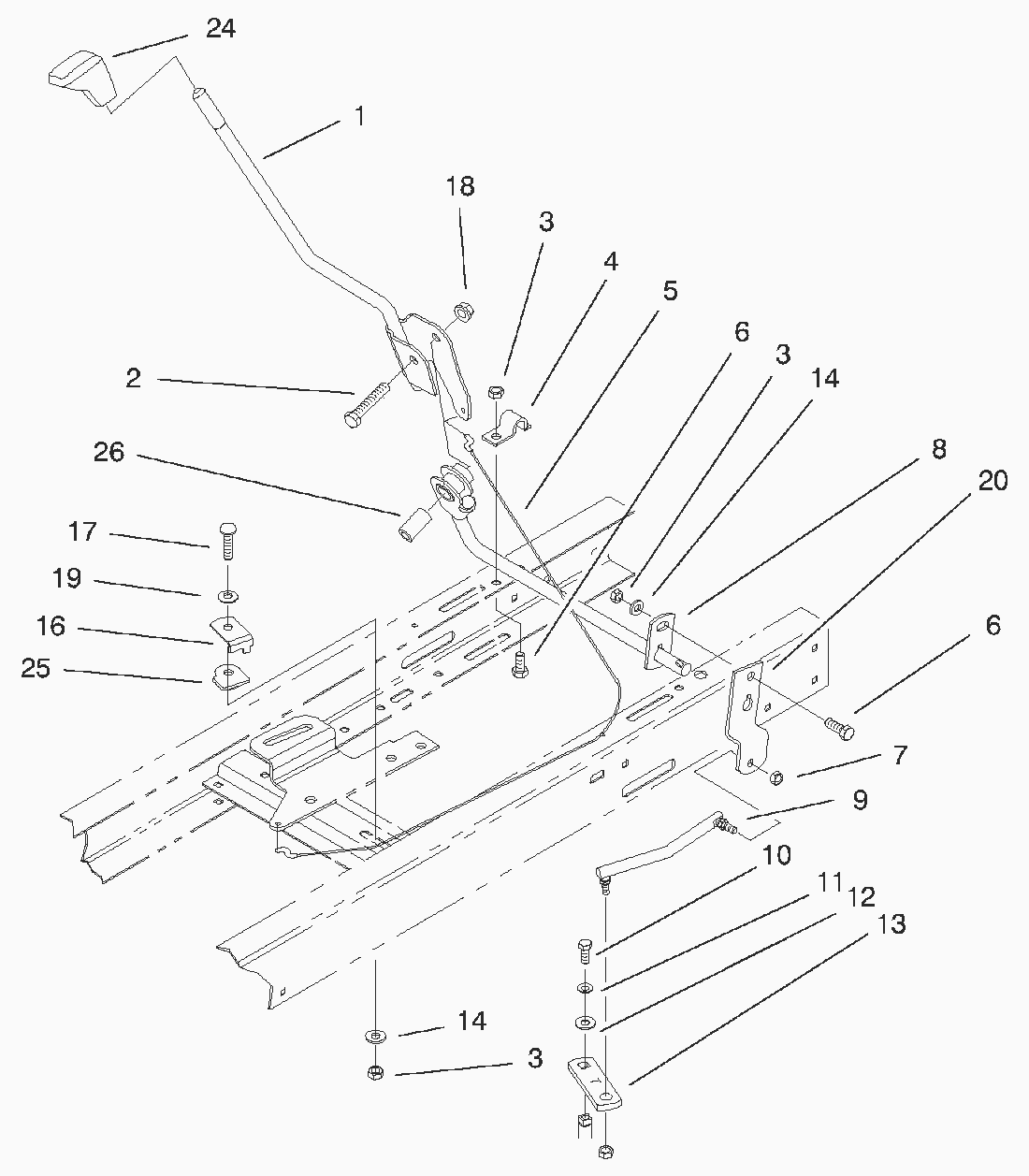

Lista de repuestos para Toro Roth / TORO Shifting Components
pos.
descripción
Número de pieza
1
Shift Lever Wa
94-1991-03
2
Capscrew
323-10
3
MUTTER
3296-29
4
Clamp-Shift Pivot
88-4810
5
Cable-Clutch
55-9321
6
Capscrew
322-3
7
Nut-Lock
3296-3
8
Wa-Shift Pivot*
94-1993-10
9
Link-Shift
94-5431
10
Capscrew Hex. Hd.
329-23
11
Lockwasher
3253-3
12
Spacer
7-5461
13
Lever-Trans. Shift
88-5340
14
Washer
3256-23
16
Keeper-Cable
88-5930
17
Carriage Bolt
3230-3
18
Locknut
3296-39
19
Washer-Flat
3256-25
20
Lever-Shift Pivot
94-1968
24
Knob-Control
94-5565
25
Guide-Cable
84-5610
26
Bushing-Shift Lever
94-1997
