Lista de repuestos para Toro Roth / TORO Engine B&S Model 28Q777-0690-E1

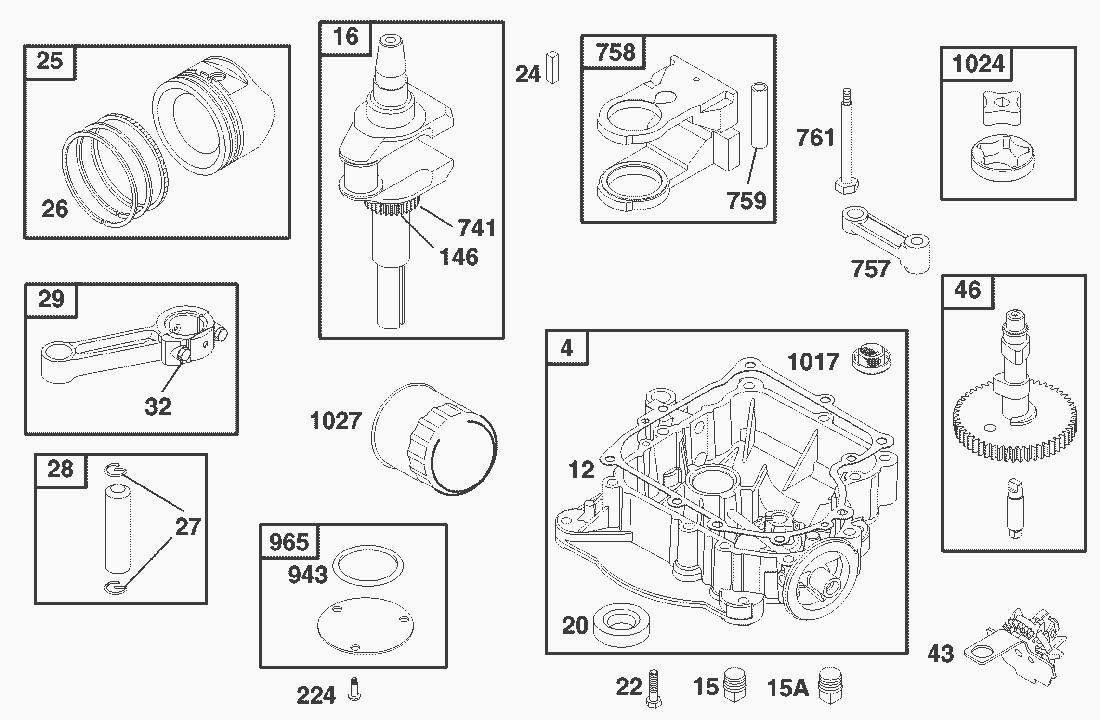

pos.	descripción	Número de pieza
4	Base-Engine	693582
	Gasket-Crkcse Cover, .005 Thick * Included in Gasket Set Part No. 494241.	271997
	Gasket-Crkcse Cover, .009 Thick * Included in Gasket Set Part No. 494241.	271996
15	Plug-Oil Drain	94239
15	Plug-Oil Pressure Switch	91488
16	Crankshaft	690136
20	Seal-Oil	291675
22	Screw-Sem	692125
24	Key-Flywheel	222698
25	Piston Assembly (Standard)	499284
26	Ring Set (Standard)	495854
27	Lock-Piston Pin	263129
28	Pin Assy.-Piston (Standard)	498319
	Pin Assy.-Piston (.005 O.S.)	498320
29	Rod-Connecting (Standard)	692419
32	Screw-Conn. Rod	692852
43	Oil Slinger	490815
46	Camshaft	693450
146	Key-Timing Gear	94196
224	Screw-SternantriebêHex.	691033
741	Gear-Timing	262932
757	Link-Counterweight	213998
758	Counterweight Assy.	499994
759	Pin-Counterweight	230787
761	Screw-Counterweight	94593
943	Seal-O-Ring	280801
965	Cover-Pump	499613
1017	Screen-Oil Pump	491722
1024	Pump-Oil	499054
1027	Filter-Oil	492932

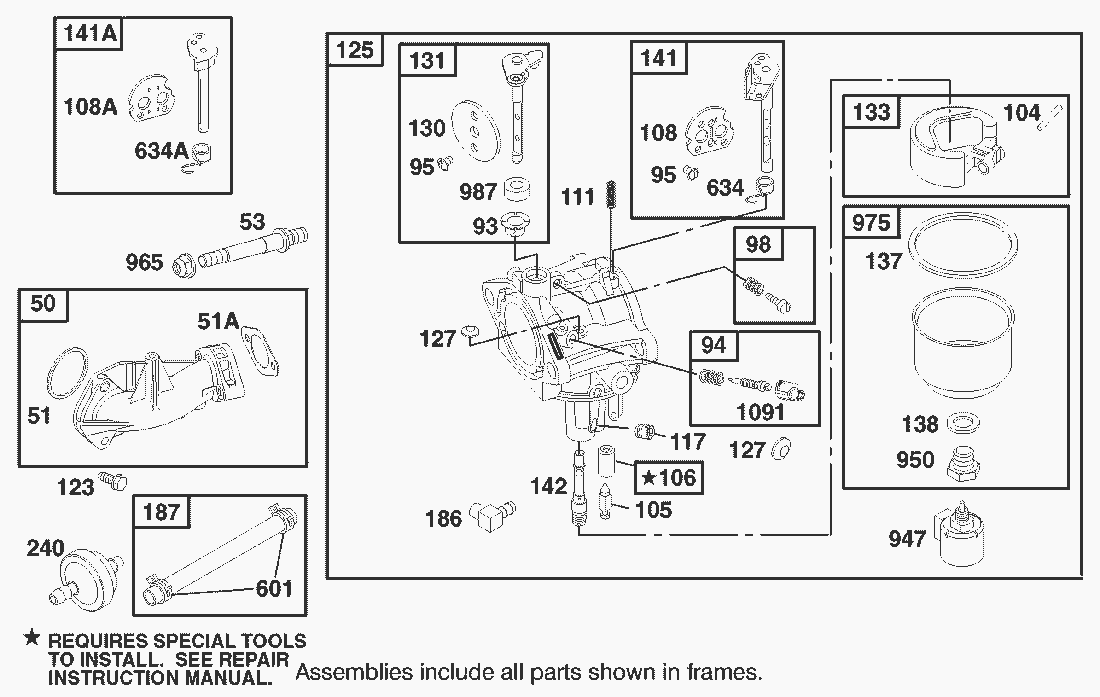

pos.	descripción	Número de pieza
50	Manifold-Intake	690193
51	Gasket-Carburetor	273650
53	Stud-Carb. Mtg.	690227
93	Bushing-Throttle	281346
94	Valve-Needle	498030
95	Screw-Throttle Valve Mounting Sem	94098
98	Screw-ldle Speed	495800
104	Pin-Float Hinge	231789
105	Valve Assy.-Inlet Needle	231855
106	Inlet Valve Seat	231854
108	Valve-Choke	224558
108	Valve-Choke	224540
111	Spring-Friction	262715
117	Jet-Main (Standard)	232118
	Jet-Main (High Altitude)	232119
123	Screw-Elbow Mtg.	95160
125	Carburetor	499153
127
130	Valve-Throttle	224539
131	Shaft and Lever-Throttle	494379
133	Float-Carburetor	494381
137	Gasket-Float Bowl	281165
138	Washer-Float Bowl Screw	281164
141	Shaft Kit-Choke (Manual)	495097
141	Shaft and Lever-Choke	495931
142	Nozzle-Carburetor	232117
186	Elbow-Fuel Pipe	493496
187	Line-Fuel	298049
240	Filter-Fuel (In Fuel Line)	394358
601	Clamp-Fuel Pipe	93053
634	Seal-Spring Assembly	494453
634	Seal-Spring Assembly	494455
947	Solenoid	497672
950	Screw-Fuel Bowl	94642
965	Locknut-Air Cleaner Mtg.	94010
975	Bowl-Float	495933
987	Seal-Throttle Shaft	281166
1091	Cap-Limiter	281364

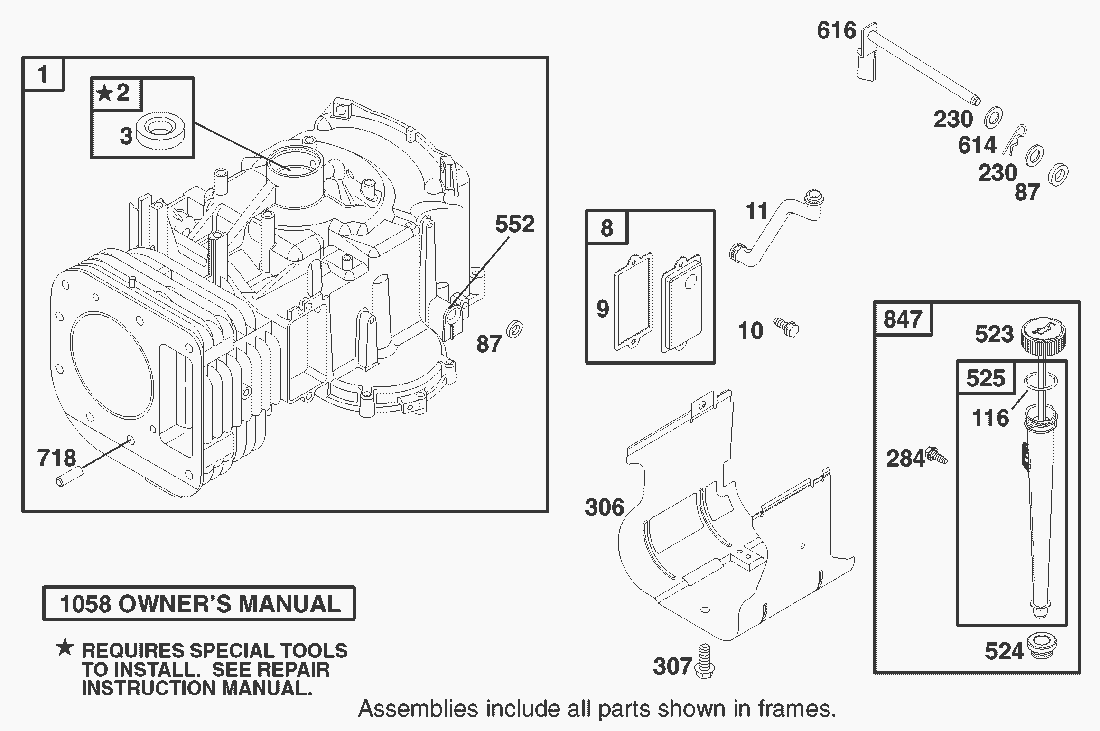

pos.	descripción	Número de pieza
1	Cylinder Assembly	496412
2	Bearing-Cylinder Note: Installation Requires Special Tools	399265
3	Seal-Oil	391086
8	Breather Assembly	495735
9	Gasket-Valve Cover	27803
10	Screw	94621
11	Tube-Breather	281246
87	Seal-Oil	491323
116	Seal-Oil Filler Cap	270920
230	Washer-Flat	94927
284	Screw-Shoulder	94903
306	Shield-Cylinder	225020
307	Screw-Hex. Head	94930
523	Cap and Dipstick Oil Filler	495230
524	Seal-Filler Tube	281370
525	Tube-Oil Filler	496113
552	Bushing-Crank, Gov.	491986
614	Cotter, Hair Pin	93306
616	Crank-Governor	495157
718	Pin-Cylinder	230192
847	Fill Group-Oil	496415
1058	Owner s Manual	273683

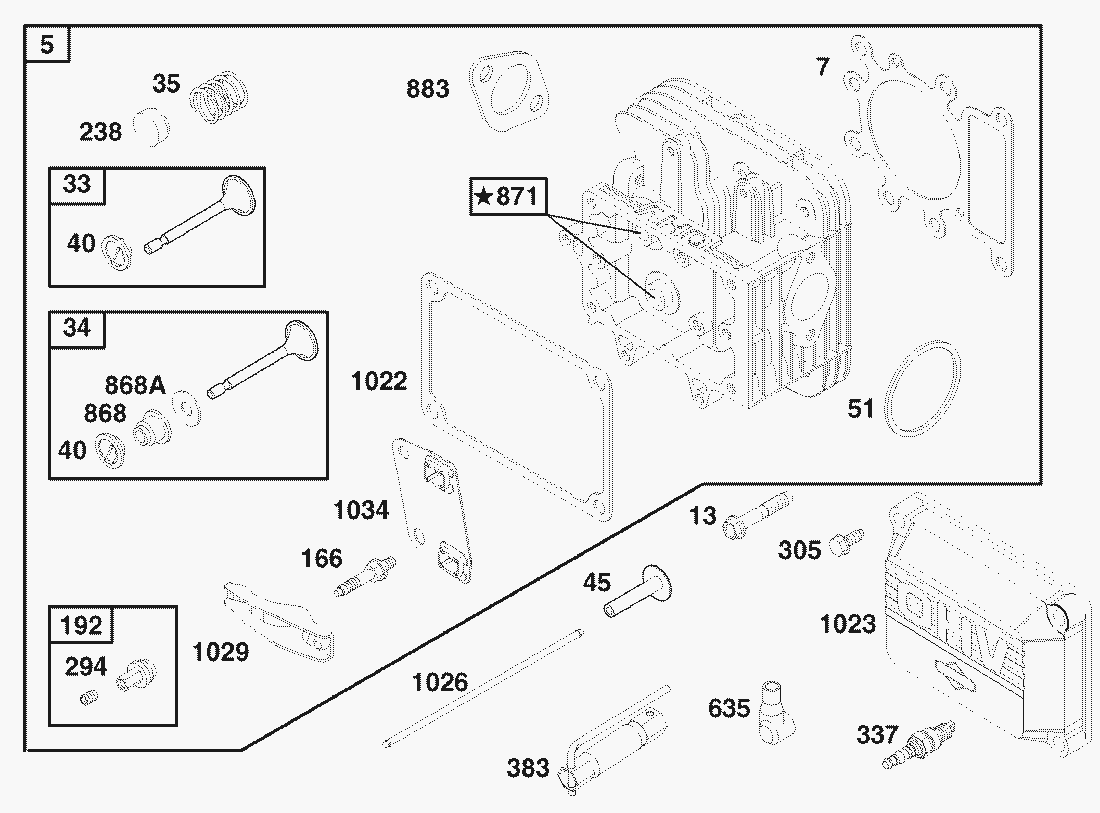

pos.	descripción	Número de pieza
5	Head-Cylinder	691165
7	Gasket-Cylinder Head	273280
13	Screw-Cylinder Head	94728
33	Valve-Exhaust	495856
34	Valve-lntake	495857
35	Spring-Valve	262811
40	Retainer-Valve	224641
45	Tappet-Valve	690564
51	Gasket-Intake	692138
166	Stud-Rocker Arm	94555
192	Ball & Screw-Rocker Arm	492160
238	Cap-Valve	262836
294	Screw-Set	810104
305	Screw-Cover Mtg.	94682
337	Plug-Spark	491055
383	Wrench-Spark Plug	89838
635	Elbow-Spark Plug	280872
868	Seal-Valve	499236
868	Seal-Valve	272610
871	Bushing-Guide (Intake and Exhaust)	262835
883	Gasket-Exhaust Pipe	272293
1022	Gasket-Rocker Cover	272475
1023	Cover-Rocker	214314
1026	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	484432
1029	Arm-Rocker	224554
1034	Guide-Push Rod	495248

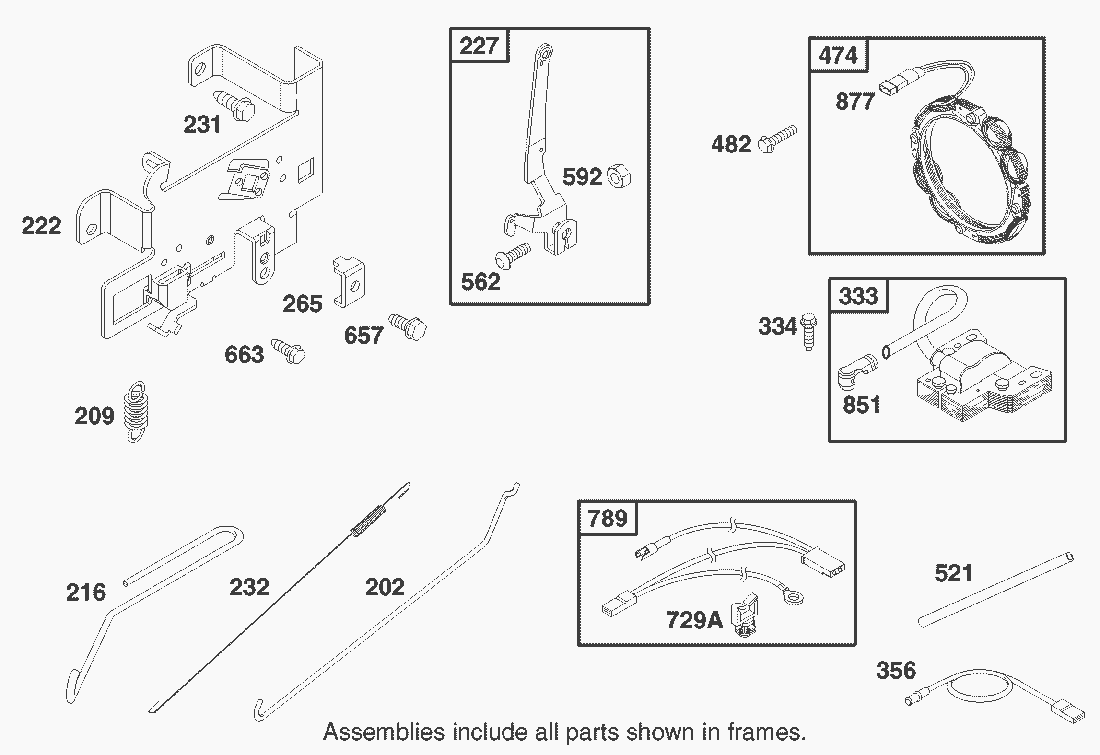

pos.	descripción	Número de pieza
202	Link-Governor	262767
209	Spring-Governor	692208
216	Link-Choke	262766
222	Plate-Governor Control	495611
227	Lever Assy.-Governor	493935
231	Screw-Hex. Hd.	94929
232	Spring-Governor Link	262785
265	Clamp, Casing	221535
333	Armature-Magneto	495859
334	Screw-Armature Mounting	94731
356	Wire Stop	494705
474	Stator-Alternator (Dual Circuit)	393474
482	Screw-Sem	93621
521	Shielding-Cable	272699
562	Bolt-Governor Lever	94907
592	Nut-Hex.	231978
657	Screw-Sem	94906
663	Screw-Hex. Hd.	94929
729	Clip-Wire	281390
789	Harness-Wiring	692037
851	Terminal-lgnition Cable	224110
877	Diode and Connector Assy. (Dual Circuit)	393456

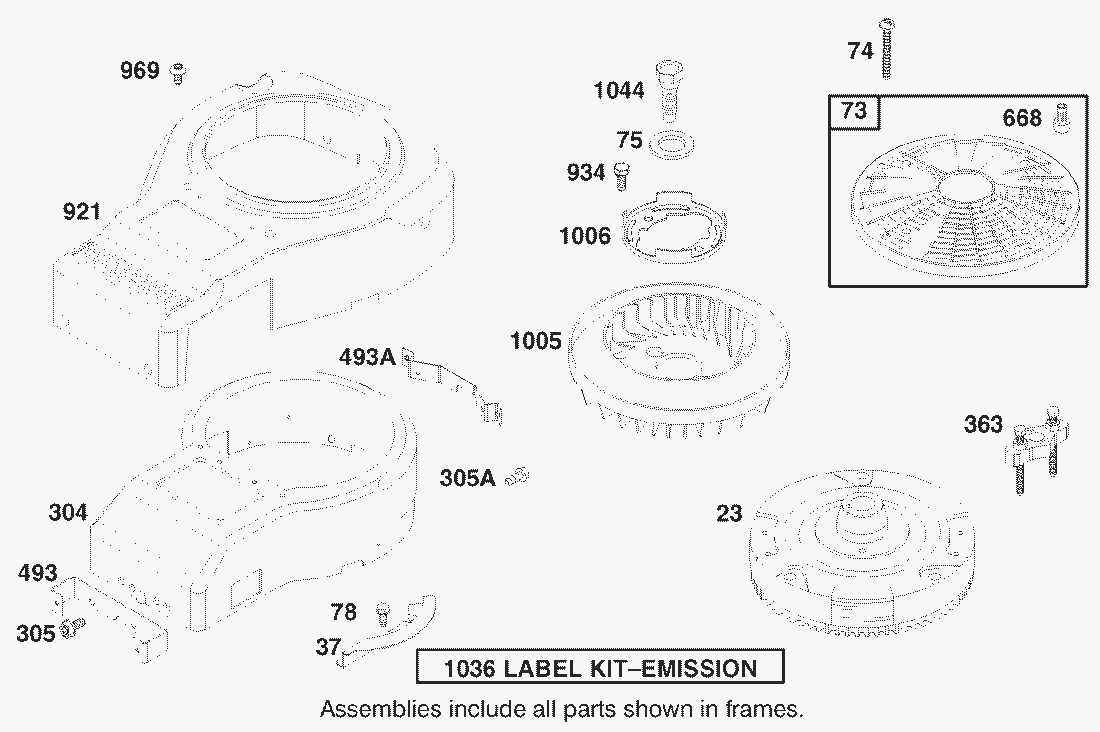

pos.	descripción	Número de pieza
23	Flywheel	693557
37	Guard-Flywheel	224502
73	Screen-Rotating	494439
74	Screw-Sem	94821
75	Washer-Spring	224061
78	Screw-Hex. Head	94896
304	Housing-Blower (Outer)	225017
305	Screw-Hex. Head	690960
305	Screw-SternantriebêHex.	692127
363	Puller-Flywheel(Optional Accessory)	19203
493	Bracket-Front	224968
493	Bracket-Rear	224969
668	Spacer	280848
921	Cover-Blower Housing	225016
934	Screw	94627
969	Screw-Sem	94822
1005	Fan-Flywheel	281400
1006	Retainer-Fan	224413
1036	Label Kit-Emission	499364
1044	Screw-Hex. Head	94673
