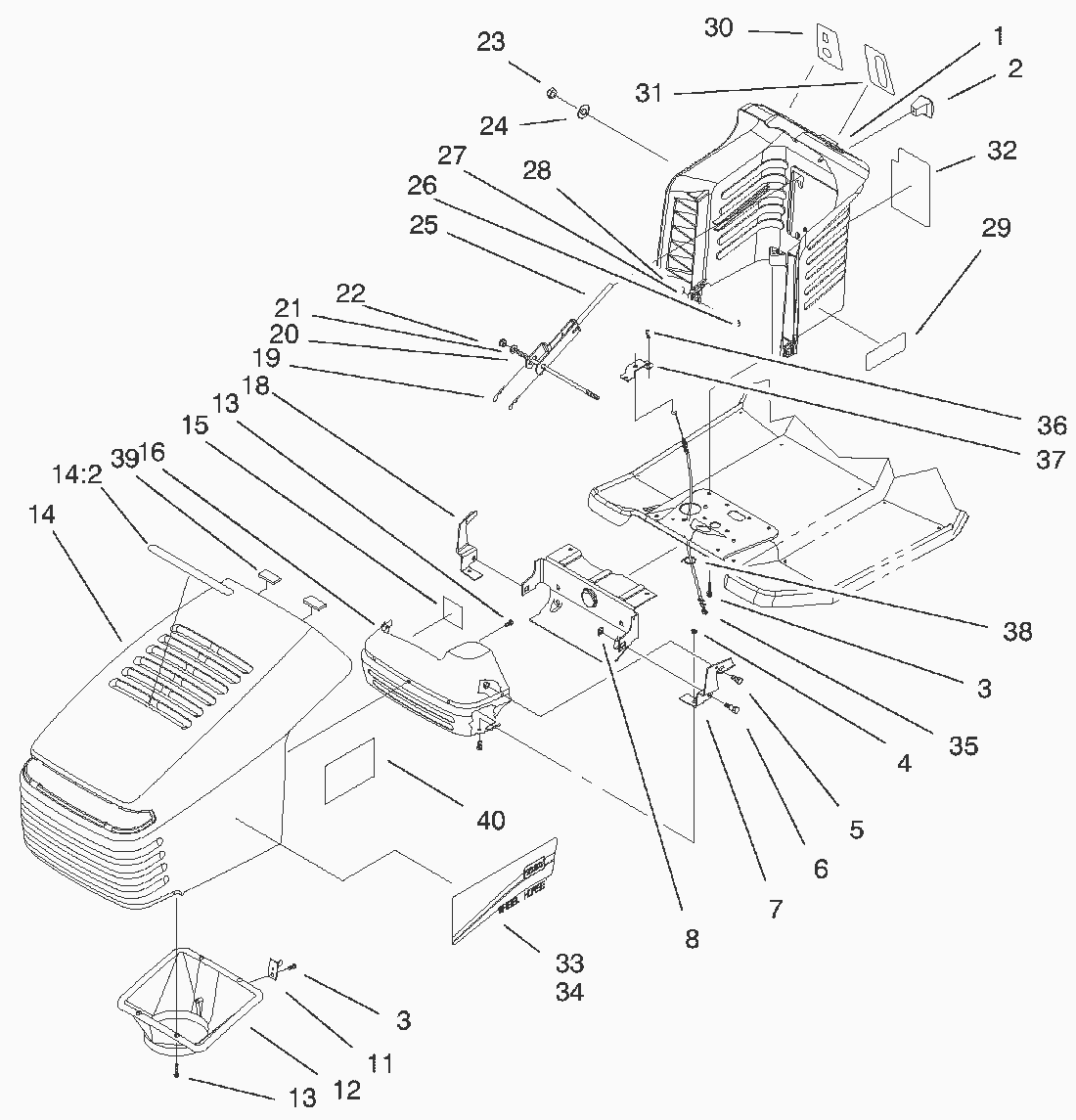

Lista de repuestos para Toro Roth / TORO Hood & Tower Assy.

pos.	descripción	Número de pieza
1	Tower-Steering [Service]	99-1947
2	Knob-Control	94-5565
3	Screw-Handle	46-8091
4	MUTTER	3296-42
5	Capscrew	321-2
6	Bolt-Shoulder	28-0540
7	Bracket-Hinge	88-6050-03
8	Nut-Retained	3290-496
11	Pin-Latch	94-1984
12	Duct-Hood Air	88-4050
13	Screw-Self Tapping	46-8090
14	Hood	92-8650
14
142	Decal-Air Duct	92-5748
15	Patch-Heat Tape	92-5782
16	Shield-Heat	93-3864-03
18	Bracket-Hinge	88-6040-03
19	Hair Pin Cotter	3290-307
20	Rod-Tower Pivot	100-7401
21	Flat Washer	3256-24
22	Nut-Hex Jam	3218-3
23	Nut-Cap	100-7402
24	Washer-Flat	100-7403
25	Lever W.a.-Deck Engage	88-5190-03
26	MUTTER	3296-29
27	Washer	3256-23
28	Capscrew	322-3
29	Decal-1638 Xl	100-6247
30	Decal-Ignition/Lights (Only On: 71220)	99-8141
30	Decal-Ignition/Lights (Only On: 71198)	99-8139
31	Decal-Throttle (Model No. 71140)	92-2461
31	Decal-Throttle (Model No. 71200	92-5730
32	Decal-Deck Engage (Model No. 71140)	92-2462
32	Decal-Deck Engage(Model No. 71200)	93-6673
33	Decal-Side Panel L.H.	95-0808
34	Decal-Side Panel R.H.	95-0807
35	Cable ASM-Deck Engage	99-6837
36	Screw-HWHTF	9266714
37	Bracket-Cable Upper	93-3849
38	Tie Strap	614249
39	Foam-Hood	94-1980
40	Decal-Service, 71223 (only on: 71223)	100-6221
