volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
16-38 XLE
>
358/71226
>
200000001
>

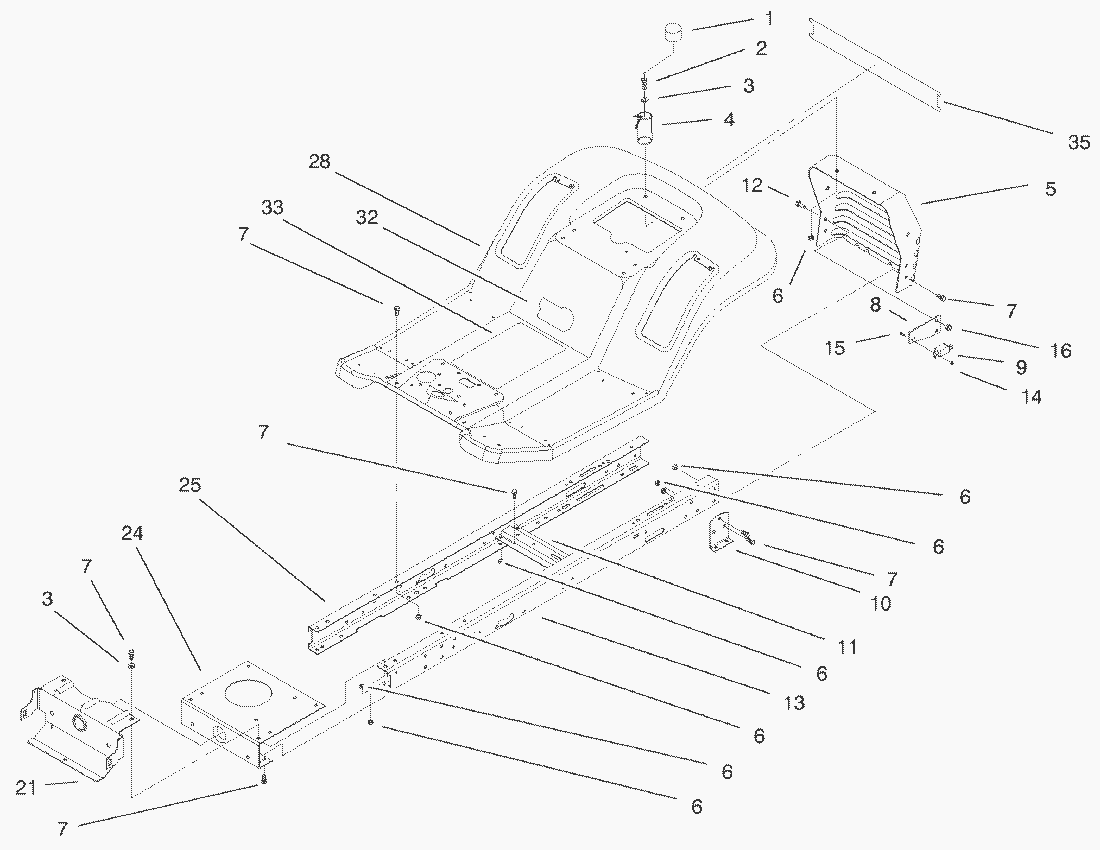

Frame & Body Assy.
Lista de repuestos para Toro Roth / TORO Frame & Body Assy.
pos.
descripción
Número de pieza
1
Cap-Protector
701178
2
Hex Hd. Capscrew
322-5
3
Washer
3256-23
4
Spring-Compression
88-6220
5
Panel-Rear Hitch
99-2957-03
6
MUTTER
3296-29
7
Capscrew
322-3
8
Plate-Switch
99-2953-03
9
Switch-Single Pole
95-1653
10
Bracket-Transaxle Mounting
88-5260-03
11
Bracket-Idler Pivot
88-4620-03
12
Capscrew
322-3
13
Rail-LH Frame
99-2958-03
14
Locknut
3296-1
15
Screw-HH
3290-392
16
MUTTER
3296-29
21
Support-Axle
98-3575-03
24
Plate-Engine Mounting
88-4630-03
25
Rail-RH Frame
99-2959-03
28
Body ASM-Rear
99-2971
32
Decal-USA (Only On: 72042, 72043, 72083)
76-1340
33
Decal-Instruction(Model No. 71200 Only)
93-6675
33
Decal-Instruction (Only On: 71198)
99-6094
35
Decal-Rear Fender
95-0809
