> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 200000001 > HOC Components

Lista de repuestos para Toro Roth / TORO HOC Components


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4


pos.descripciónNúmero de pieza
100-6203
100-6201
Pulley-Deck88-5330

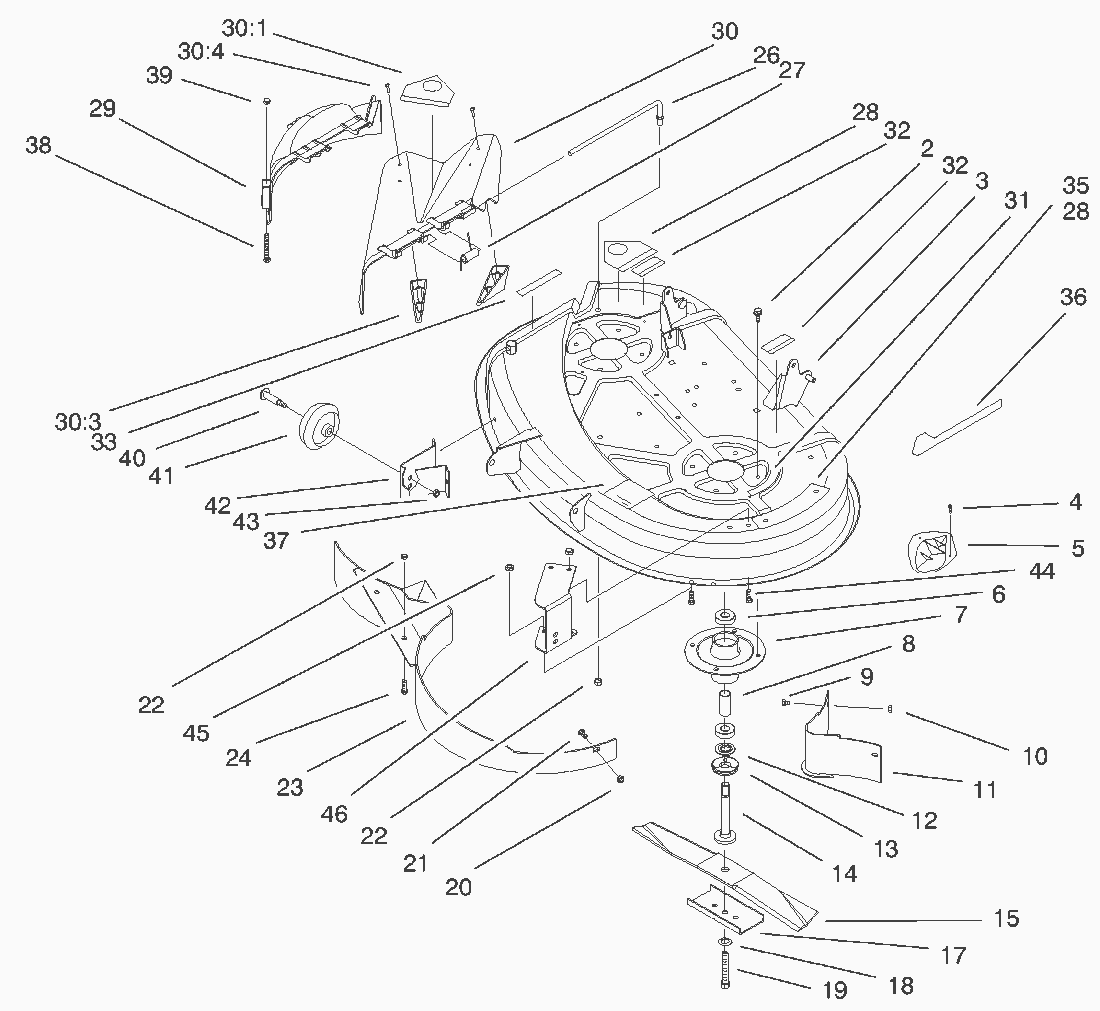

Lista de repuestos


pos.descripciónNúmero de pieza
2Thread Forming Screw32144-41
3Deck ASM-Service,Intl (Only On: 71220)99-5847
3Deck Asm-service (Only On: 71198)99-5846
4Screw-Pan Hd.32144-111
5Plate-Kicker Left Rear (H.P. Models Only)76-2160
6Ball Bearing38-7820
7Housing-Spindle88-4510
8Spacer-Bearing62-3661
9Capscrew321-4
10MUTTER3296-42
11Baffle (Model No. 78226 Only)79-1640-03
12Spacer-Hardened80-4380
13Shield-Bearing80-4360
14Shaft-Spindle80-4341
15Blade- Recycler79-3061
17Blade-Stiffener (Model No. 78226)80-0510-03
18Washer-Belleville3290-465
19Screw-Blade26-0671
20MUTTER3296-29
21Carriage Bolt3230-1
22Locknut3296-39
23Baffle (Model No. 78226 Only)79-1600-03
24Bolt323-5
26Rod-Pivot95-1661
27Spring-Torsion57-6950
28Decal-Danger (Model No. 71200 Only)93-7010
28Decal-Danger93-1122
29Cover-Recycler88-4430
30Deflector Assembly (Incl. Ref.93-7695
301Decal-Danger93-1122
301Decal-Danger (Model No. 71200 Only)93-7010
303Kicker-C.E.(Model No. 71200 Only)93-7696
304Screw-Pan Hd.93-0231
31Decal-Shield Danger93-6677
31Decal-Shield Danger68-3660
32Decal Warning55-4300
32Decal-Warning (Model No. 71200 Only)93-6674
33Decal-Deflector Danger (Model No. 71200 Only)93-7009
33Decal-Deflector Danger68-3650
35Decal-Danger79-3140
37Decal-Belt Guide93-6679
38Capscrew321-15
39Capnut32111-7
40Bolt-Shoulder56-6591
41Wheel-Deck701756
42Bracket-Deck Wheel RH (Only On: 71217)88-5740-03
43Locknut3296-39
44Capscrew322-3
45MUTTER3296-29
46Bracket-Deck Wheel LH (Only On: 71217)93-3896-03

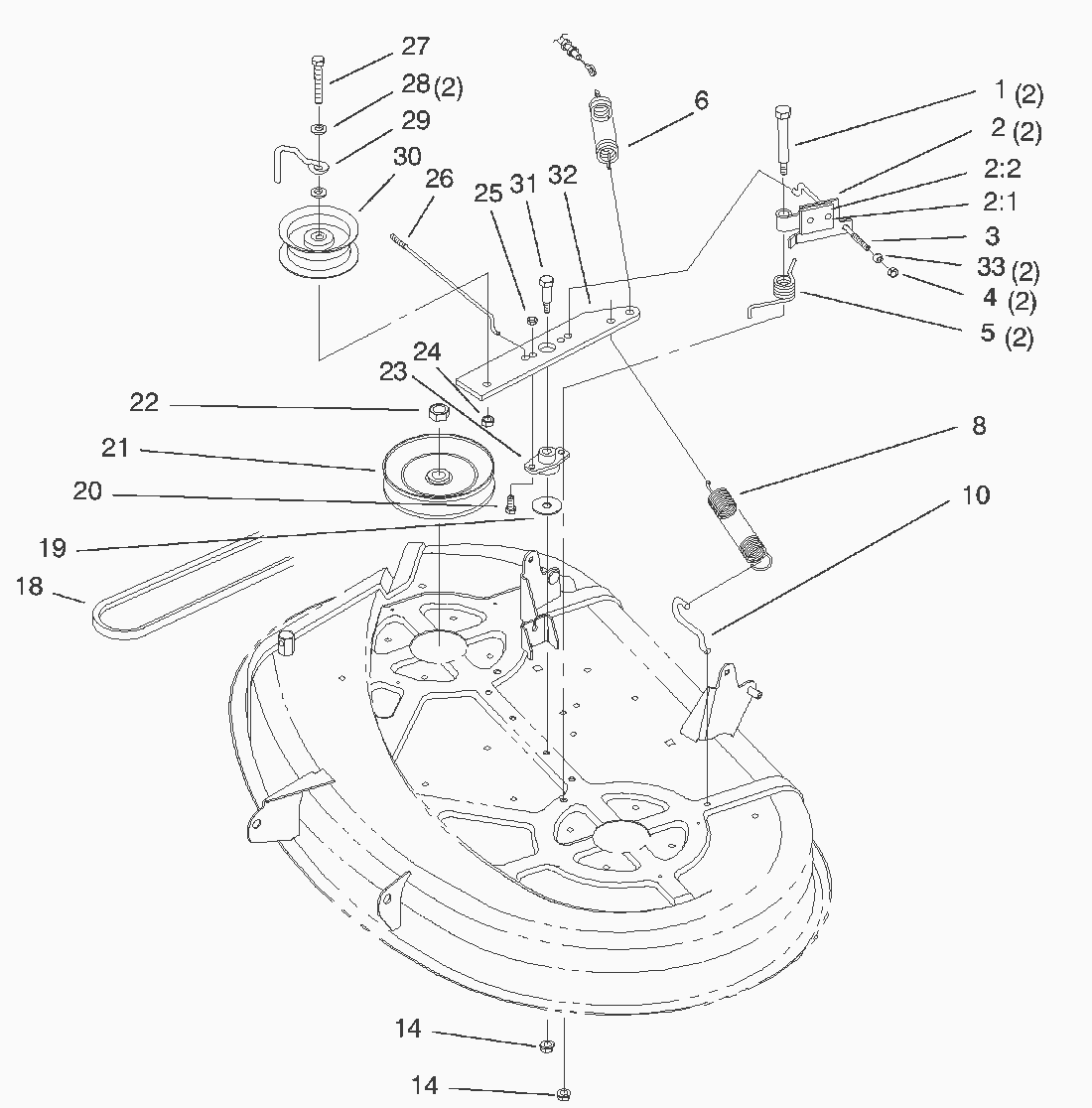

Lista de repuestos


pos.descripciónNúmero de pieza
1Bolt-Shoulder88-4590
288-6100
21Rivet-Pop3290-282
22Pad-Brake56-9830
3Rod-Deck Brake L.H.88-5550
4MUTTER3296-42
5Spring-Torsion88-5910
6Spring-Deck Engage88-6130
8Spring-Extension92-8934
10Hook-Spring Return88-5970
14Nut-Flange Lock3296-58
18V-Belt-Deck88-6250
19Washer3256-68
20Hex Hd. Capscrew322-5
22Nut-Lock3219-6
23Bushing-Idler Arm88-4980
24Locknut3296-39
25MUTTER3296-29
26Rod-Deck Brake R.H.88-5540
27Hex Hd. Capscrew323-12
28Flat Washer3256-24
29Guide-Idler Belt88-5070
30Pulley-Idler88-5630
31Bolt-Shoulder7-0030
32Arm-Idler88-4870-03
33Ball-Swivel67-0710

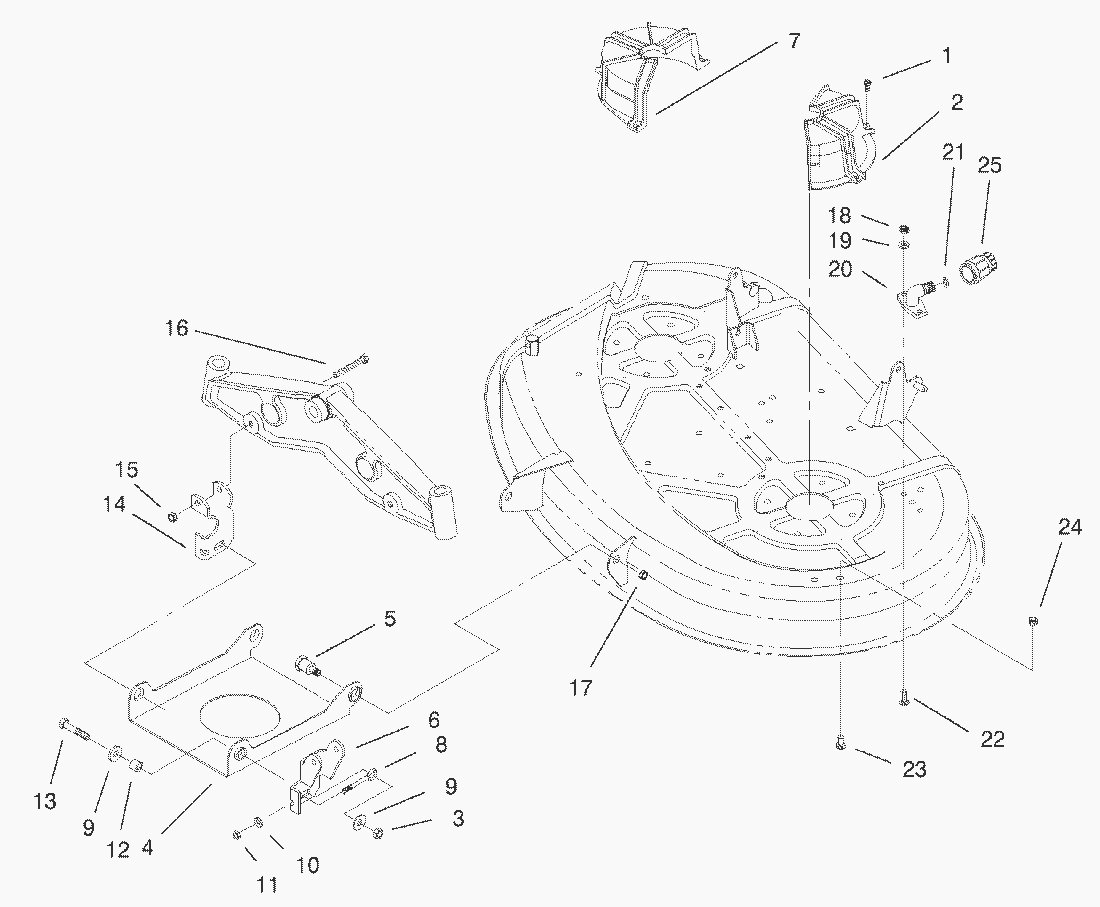

Lista de repuestos


pos.descripciónNúmero de pieza
1Self Tapping Screw32104-76
2Guide-Deck Belt L.H.88-4030
3Locknut3296-39
4Pan-Front Deck Suspens93-3881-03
5Bolt-Shoulder94-5823
6Bracket-Deck Susp94-1971-03
7Guide-Deck Belt R. H.88-4020
8Screw-Adjusting61-9980
9Washer-Hardened80-6990
10Washer3256-22
11MUTTER3296-42
12Spacer93-9847
13Capscrew323-9
14Bracket-Deck Susp94-1970-03
15MUTTER3296-29
16Screw-Cap Hex. Hd.322-12
17Nut-Lock3296-23
18Locknut3296-16
19Washer-Plain3256-1
20Fitting-Washout (Model No. 22045 Only)95-2747
21O-Ring-Seal (Model No. 22045 Only)46-6290
22Carriage Bolt3229-1
23Capscrew-Hex. Hd.322-1
24MUTTER3296-29
25Connector-Hose95-3270

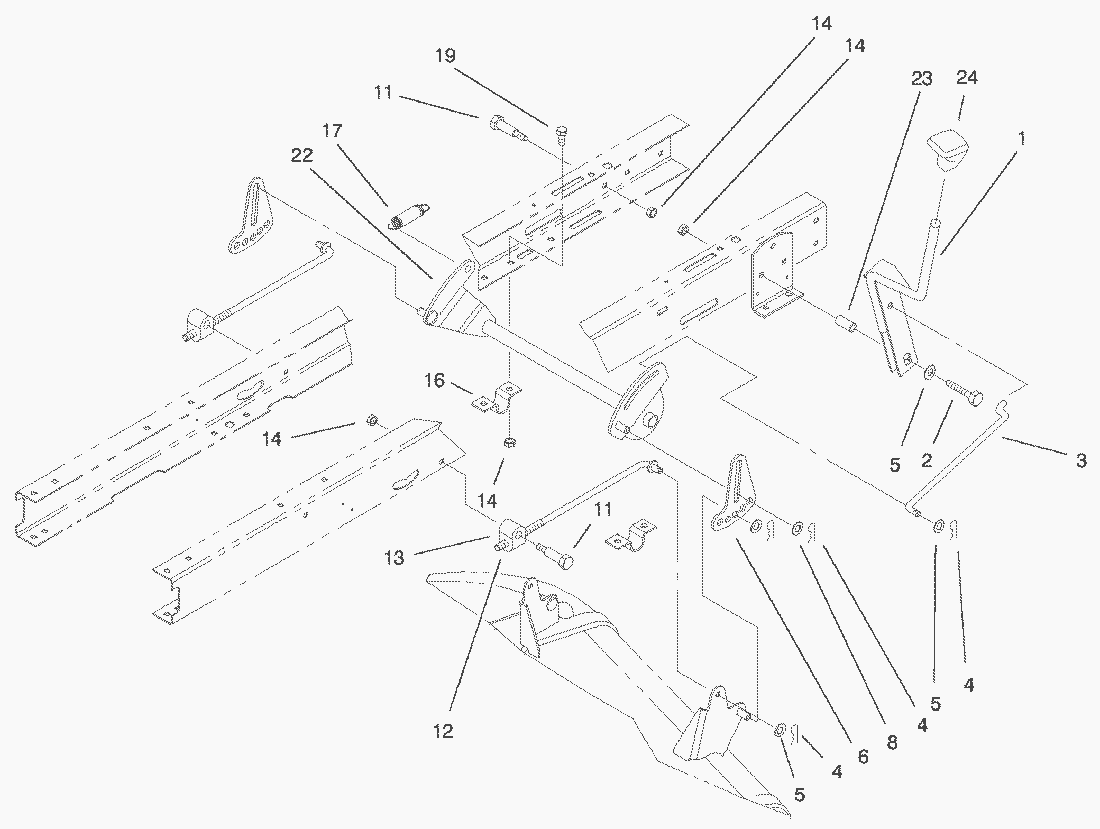

Lista de repuestos


pos.descripciónNúmero de pieza
1Lever W.a. (H.o.c.)93-3822-03
2Screw-HH322-39
3Link-H.O.C.88-5900
4Hair Pin Cotter3290-307
5Flat Washer3256-24
6Link-Adjusting (H.o.c.)88-5570-03
8Washer-Hardened80-6990
11Bolt-Shoulder7-0030
12Rod-Hanger Rear88-5450
13Trunnion-H.O.C. Rear88-4230
14MUTTER3296-29
16Clamp-H.O.C. Pivot88-4730
17Spring-Extention88-6460
19Capscrew322-3
22Pivot W.a. (H.o.c.)88-5110-03
23Spacer65-7210
24Knob-Control94-5565
