BOSTITCH AIR COMPRESSOR CWC100 Listas de piezas de repuesto y dibujos

CWC100 AIR COMPRESSOR

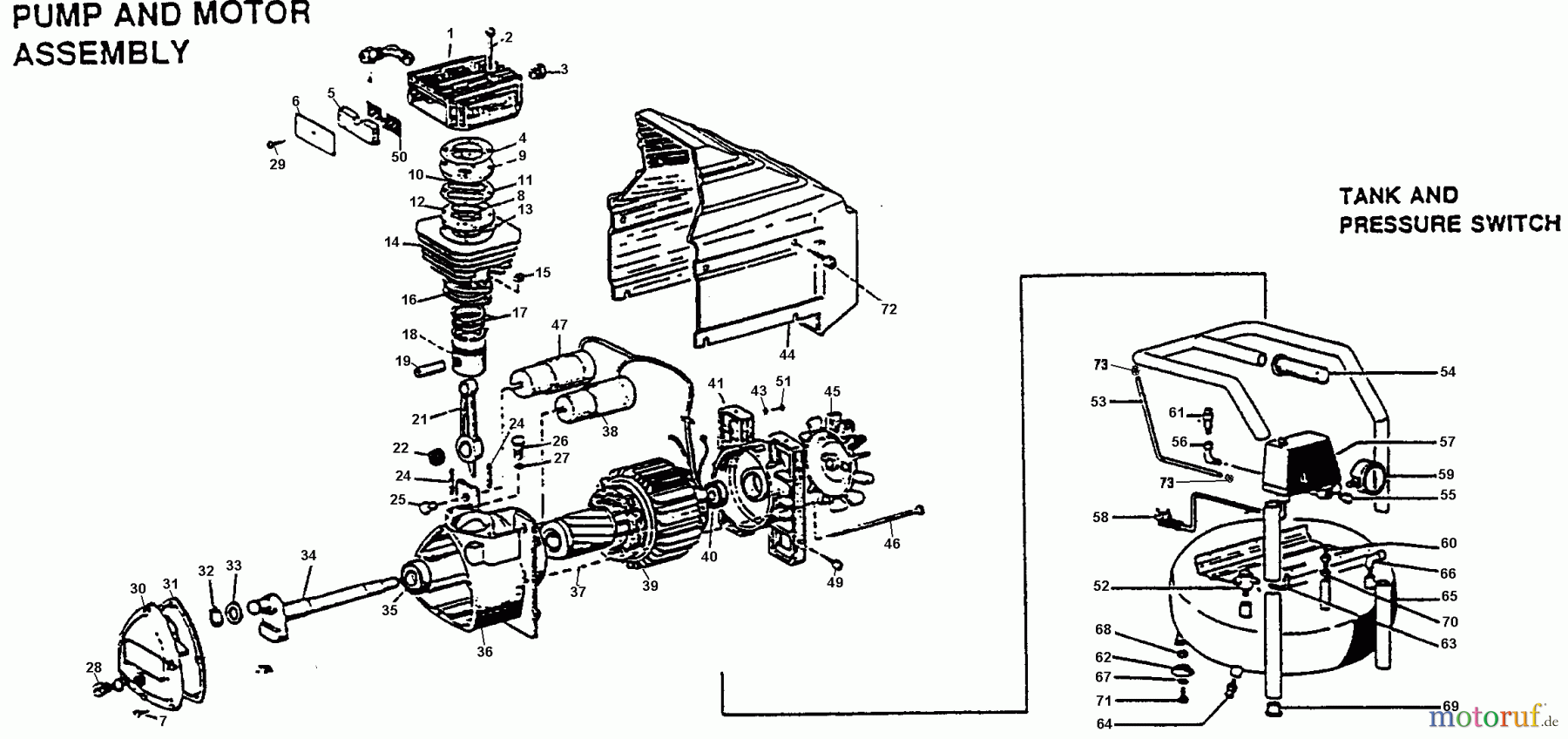

BOSTITCH COMPRESSORS AIR COMPRESSOR CWC100 Seite 1
PosNúmero de artículoDescripción
1 SB-5030011008BOSTITCH OBSOLETE PT
2 SB-7011010000SCREW-HHCS-M6X1.0X5.
3 SB-7196010000STARTING VALVE 3/8
4 SB-7084040000JUNTA
5 SB-7210010000FILTER ELEMENT
6 SB-7458011000FILTER PLATE
7 SB-7012100000TORNILLO
8 SB-4081010000REED VALVE KIT 10PZ
9 SB-7458020000BOSTITCH OBSOLETE PT
10 SB-4081010000REED VALVE KIT 10PZ
11 SB-4081010000REED VALVE KIT 10PZ
12 SB-7458020000BOSTITCH OBSOLETE PT
13 SB-4081010000REED VALVE KIT 10PZ
14 SB-7575100000CILINDRO
15 SB-7020070000TUERCA
16 SB-4081010000REED VALVE KIT 10PZ
17 SB-4080020000PISTON RING KIT
18 SB-5140053-23PISTON
19 SB-7050020000WRIST PIN
21 SB-5050091008CONNECTING ROD CWC1
22 SB-7061010000ROLLER BEARING DB20
24 SB-7015020000STUD M8 X 32 ZINC
25 SB-7028010000TUERCA
26 SB-7098010000OIL PLUG
27 SB-7070010000O-RING-2.874X.070
28 SB-7180050000OIL LEVEL SIGHT GLAS
29 SB-7012060000SCREW-CRPHS-M4X0.7X1
31 SB-7078320000CRANK CASE COVER GAS
32 SB-7040040000RETAINING RING
33 SB-7038010000PLAIN WASHER
34 SB-5040020008CRANK SHAFT GM130
35 SB-7060020000BALL BEARING 6205 2R
37 SB-5090040008ROTOR D80 L75 GM100
38 SB-7310100000CONDENSER MF20 V450
39 SB-4010520000BOSTITCH OBSOLETE PT
40 SB-7060010000COJINETE
41 SB-5110060008MOTOR HOUSING BACK P
43 SB-7031020000ARANDELA
44 SB-7150810000MONTANTE
45 SB-7201280000ENVTILADOR
46 SB-7018010000HOUSING BOLTS M6 X 1
47 SB-7310140000CONDENSER MF40 V250
49 SB-7012090000MOTOR BASE SCREWS
50 SB-7458031000FILTLER SCREEN PLATE
51 SB-7013060000TORNILLO
52 SB-7190040000HEAD UNLOADER VALVE
53 SB-7239160000FILLER PIPE
54 SB-7280030000HAND GRIP
55 SB-7090070000ENCHUFE
56 SB-7080180000ELBOW
57 SB-7250320000BOSTITCH OBSOLETE PT
58 SB-7328620000POWER CORD
59 SB-7110180000MEDIDOR DE PRESIÓN
60 SB-7081140000JUNTA
61 SB-7192270000SAFETY VALVE
62 SB-7270010000RUBBER FOOT PAD
63 SB-7230010000MANGUERA SA
64 SB-7130280000DRAIN VALVE
65 SB-5153170008BOSTITCH OBSOLETE PT
66 SB-7080170000ELBOW
67 SB-7030020000LOCK WASHER
68 SB-7020060000HEX NUT
69 SB-7360040000CAUCHO
70 SB-7023040000TUERCA
71 SB-7011040000PERNO
72 SB-7012060000SCREW-CRPHS-M4X0.7X1
