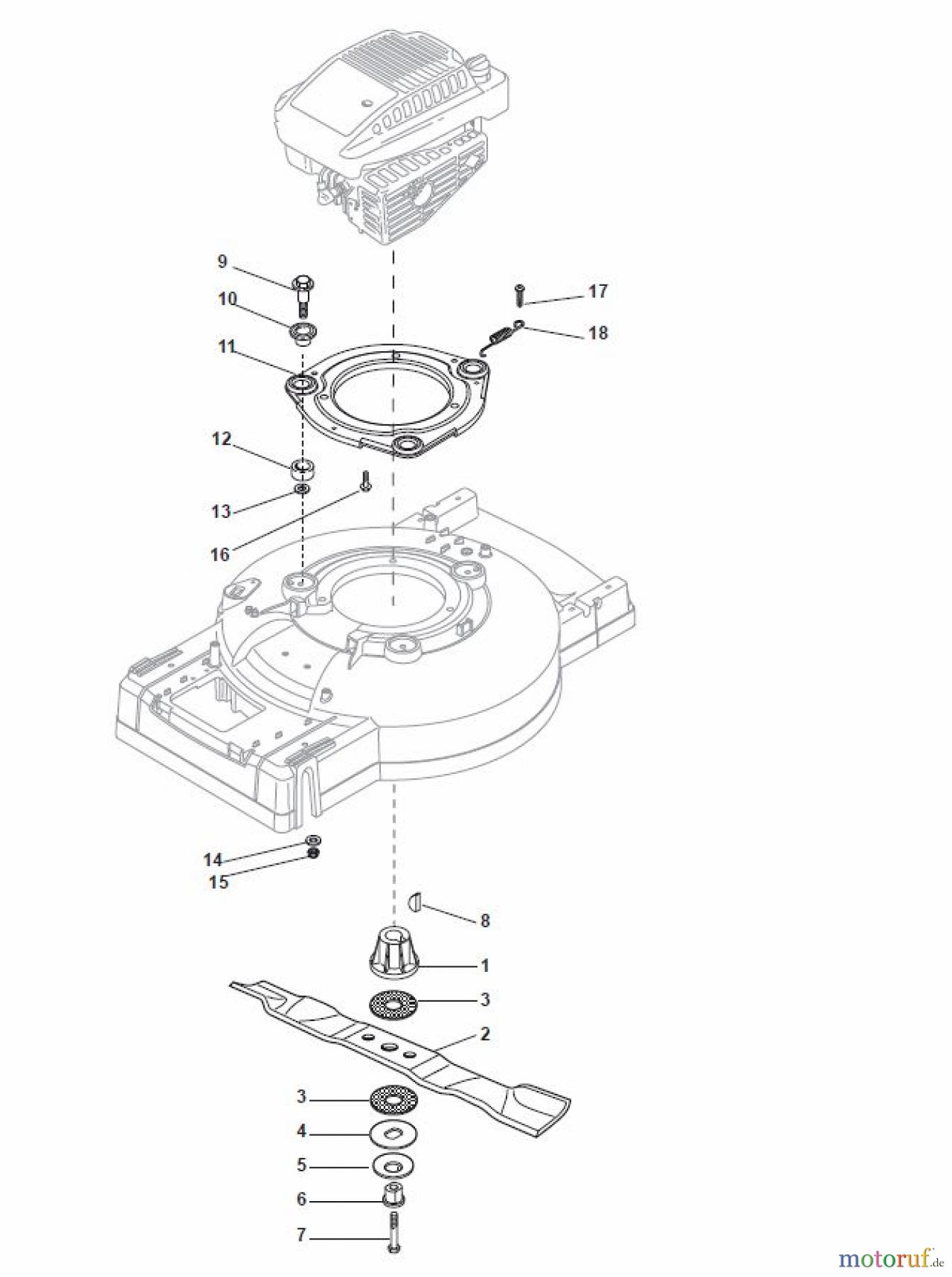

Global Garden Products GGP Benzin Mit Antrieb 2017 MC 534 TR Blade with AVS System Listas de piezas de repuesto y dibujos

Blade with AVS System MC 534 TR

Baujahr 2017
Global Garden Products GGP Rasenmäher Benzin Mit Antrieb 2017 MC 534 TR Blade with AVS System
PosNúmero de artículoDescripción
1 122465621/0Hub, Crankshaft Ø 22.2 for B&S and GGP Engine
1 122465632/0Hub With Pulley, Crankshaft Ø 25 for Honda Engine
2 181004139/0Mulching Blade
3 Global Garden Products GGP Washer322672110/1Washer
4 322672105/0Washer
5 Global Garden Products GGP Cup Spring112508120/0Cup Spring
6 Global Garden Products GGP Bushing122041940/0Bushing
7 112736850/0Screw
8 Global Garden Products GGP Feather, Crankshaft Ø 22,2 for B&S and GGP Engine112139100/0Feather, Crankshaft Ø 22,2 for B&S and GGP Engine
8 112139150/0Feather, Crankshaft Ø 25 for Honda Engine
9 122524329/0Pin
10 Global Garden Products GGP Washer322672201/0Washer
11 322207221/1Black Flange Black
11 381207225/1Yellow Motor Flange Yellow
12 322250012/0No Vibrations Rubber
13 122671651/0Washer
14 112521350/0Washer
15 Global Garden Products GGP Nut112155000/0Nut
16 112735108/1Screw
17 112729601/1Screw
18 122450444/0Spring
18 122450449/0Spring Variator Models
