MTD Accessories Spreader 45-0527 (196-545-000) 196-545-000 (2017) Basic machine Listas de piezas de repuesto y dibujos

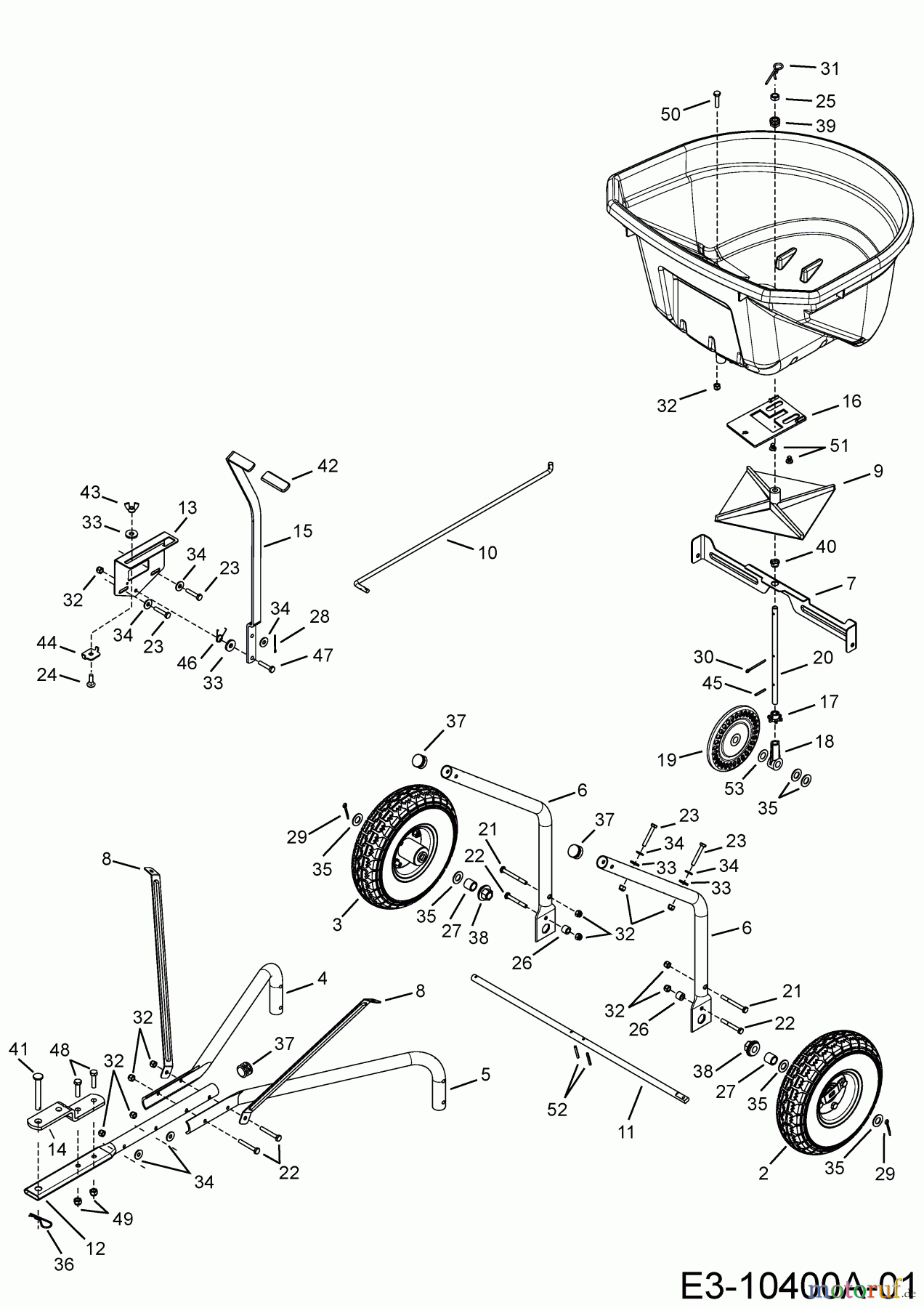

Basic machine 196-545-000 (2017)

MTD Accessories Accessories garden and lawn tractors Spreader 45-0527 (196-545-000) 196-545-000 (2017) Basic machine
PosNúmero de artículoDescripción
2 AF-48865DRIVE WHEEL ASSEMBLY
3 AF-46503WHEEL, & TIRE 4.10/3.5-4
4 AF-42009TUBE, RL HITCH SUPPORT
5 AF-42008TUBE, RH HITCH SUPPORT
6 AF-28322SUPPORTING TUBE
7 AF-27313CROSS BRACE
8 AF-28329BRACE-VAR SP
9 AF-04367SPREADER PLATE
10 AF-41930ROD FLOW CONTROL
11 AF-28332ROD
12 AF-41937TUBE HITCH
13 AF-27322BRACKET FLOW CONTROL
14 AF-23687BRACKET, HITCH
15 AF-27314ARM FLOW CONTROL
16 AF-45344PLATE FLOW
17 AF-44468SPROCKET-GEAR SUB ASS`Y 38"
18 AF-44672COLLAR-SUPPORT
19 AF-62798DRIVE DISC
20 AF-28323SHAFT-HI/LO SHIFTER
21 AF-49870BOLT ASSY-HEX
22 AF-46699HEX. SCREW 1/4-20X2"LG
23 710-0136HHCS:1/4-20:1.75:GR5:STD
24 MTD Accessories SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
25 AF-23625BUSHING, PIVOT .385x5/8x.27
26 AF-28325SPACER .31IDX.56ODX.438
27 AF-28324SPACER .51IDX.76ODX.70
28 AF-44101PIN, COTTER 3/32 x 3/4 PLTD
29 MTD Accessories PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
30 AF-43093COTTER PIN 1/8X1-1/2
31 AF-48934COTTER PIN 5/32"x2"
32 AF-47189HEX LOK NUT,NYLON UNSERT1/4-20
33 AF-1543-69WASHER, NYLON 21/64
34 AF-43088WASHER, 1/4 STD WRT PLTD
35 AF-R19171616WASHER
36 AF-43343PIN-COTTER
37 AF-49449TUBE CLOSURE
38 AF-47963BEARING-FLANGE
39 AF-44285BUSHING, HOPPER BOTTOM BLACK
40 MTD Accessories BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
41 AF-47623CLEVIS PIN
42 AF-43848HANDLE
43 AF-47141WING NUT
44 AF-24858ADJUSTABLE STOP
45 AF-43850USE 715-0247
46 AF-42347TORSION SPRING
47 AF-43661BOLT, HEX 1/4-20x1 GR 5
48 AF-43840BOLT,HEX HD 5/16-18x1-1/4GR5PL
49 MTD Accessories NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
50 710-0106HHCS:1/4-20:1.25:GR5:SPEC
51 AF-48402PIN-LOCK
52 AF-44665PIN, ROLL 5/32x1-1/4
53 AF-44137WASHER
