Toro 74832 (ZX5450) - TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) TRACTION DRIVE ASSEMBLY Listas de piezas de repuesto y dibujos

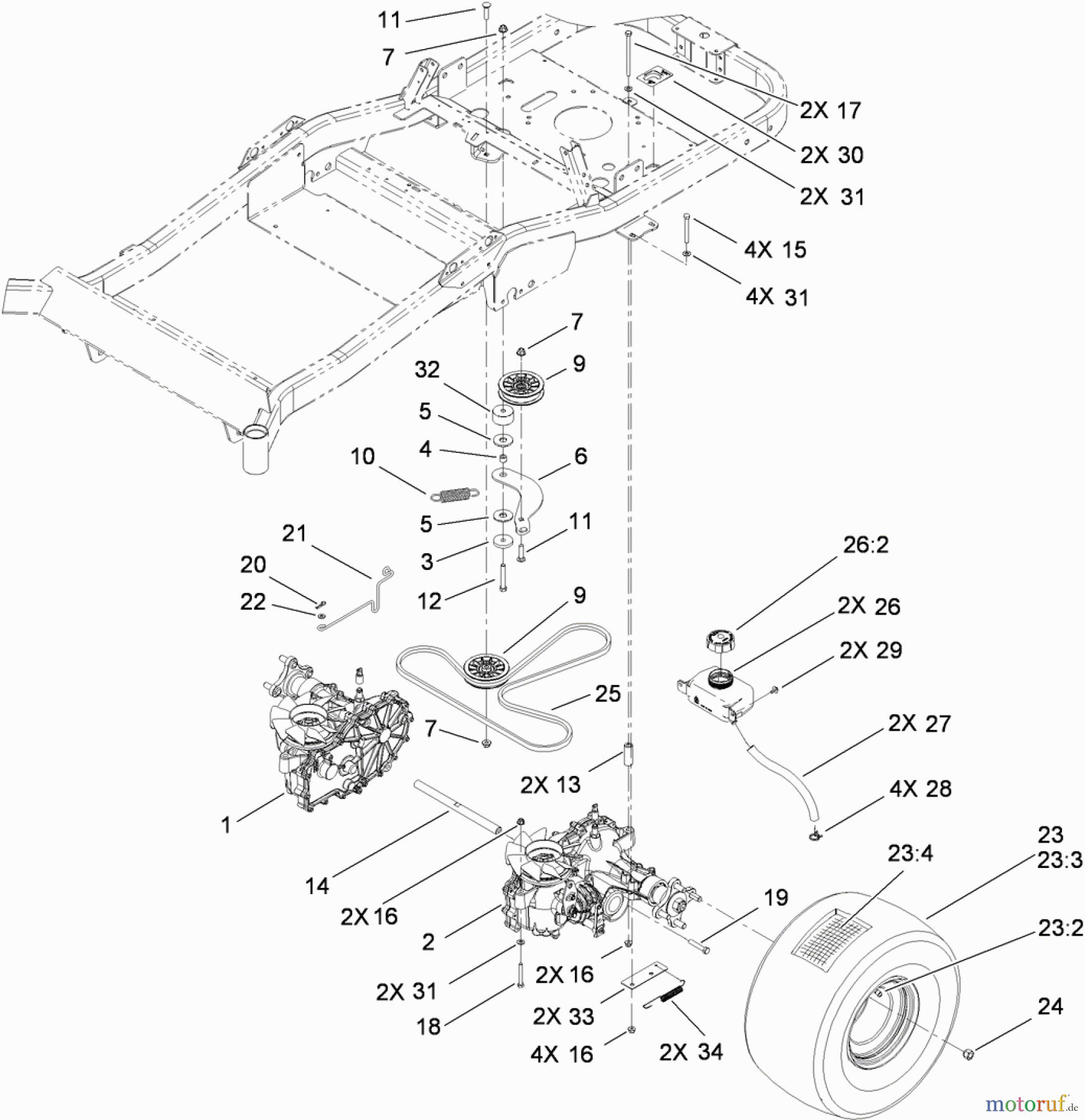

TRACTION DRIVE ASSEMBLY 74832 (ZX5450) - Toro TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74832 (ZX5450) - Toro TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) TRACTION DRIVE ASSEMBLY
PosNúmero de artículoDescripción
1 TR115-2550RH HYDRO TRANSMISSION ASM
2 TR115-2551LH HYDRO TRANSMISSION ASM
3 TR110-9981WASHER-PLAIN
4 TR115-4986SPACER
5 TR114-0463WASHER-FRICTION, COMPOSITE
6 TR117-5350ARM-IDLER
7 TR104-8301Mutter
9 Toro PULLEY-IDLER, FLATTR109-3397PULLEY-IDLER, FLAT
10 TR1-603402Zugfeder
11 TR3231-4Schraube
12 Toro SchraubeTR3231-2Schraube
13 TR109-3652SPACER-HYDRO
14 TR115-2559SHAFT-CROSS, HYDRO
15 TR322-13SCREW-HH
16 TR104-8300Mutter
17 TR322-38SCREW-HH
18 TR322-11SCREW-HH
19 TR323-10Schraube
20 TR1-806003HAARNADELSICHERUNG
21 TR115-4990ROD-BYPASS
22 TR3256-22Scheibe
23 TR115-2593TIRE AND RIM ASM
23:2 TR232-27Ventil
23:3 TR99-2994Reifen (20X10X8)
23:4 TR93-3893Schlauch
24 TR242-50Mutter
25 TR115-9613V-BELT
26 TR115-9618HYD RESERVIOR ASM
26:2 TR109-3320CAP-RESERVOIR, HYD
27 TR115-4969HOSE-OVERFLOW
28 TR117-1193CLAMP-HOSE
29 TR46-8560SCREW-HHFTF
30 TR117-1158DECAL-BYPASS
31 TR3256-23Scheibe
32 TR117-5351SPACER
33 TR117-7248-03PLATE-SPRING
34 TR110769Feder
