Toro 74830 (ZX4800) - TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) 48 INCH DECK ASSEMBLY Listas de piezas de repuesto y dibujos

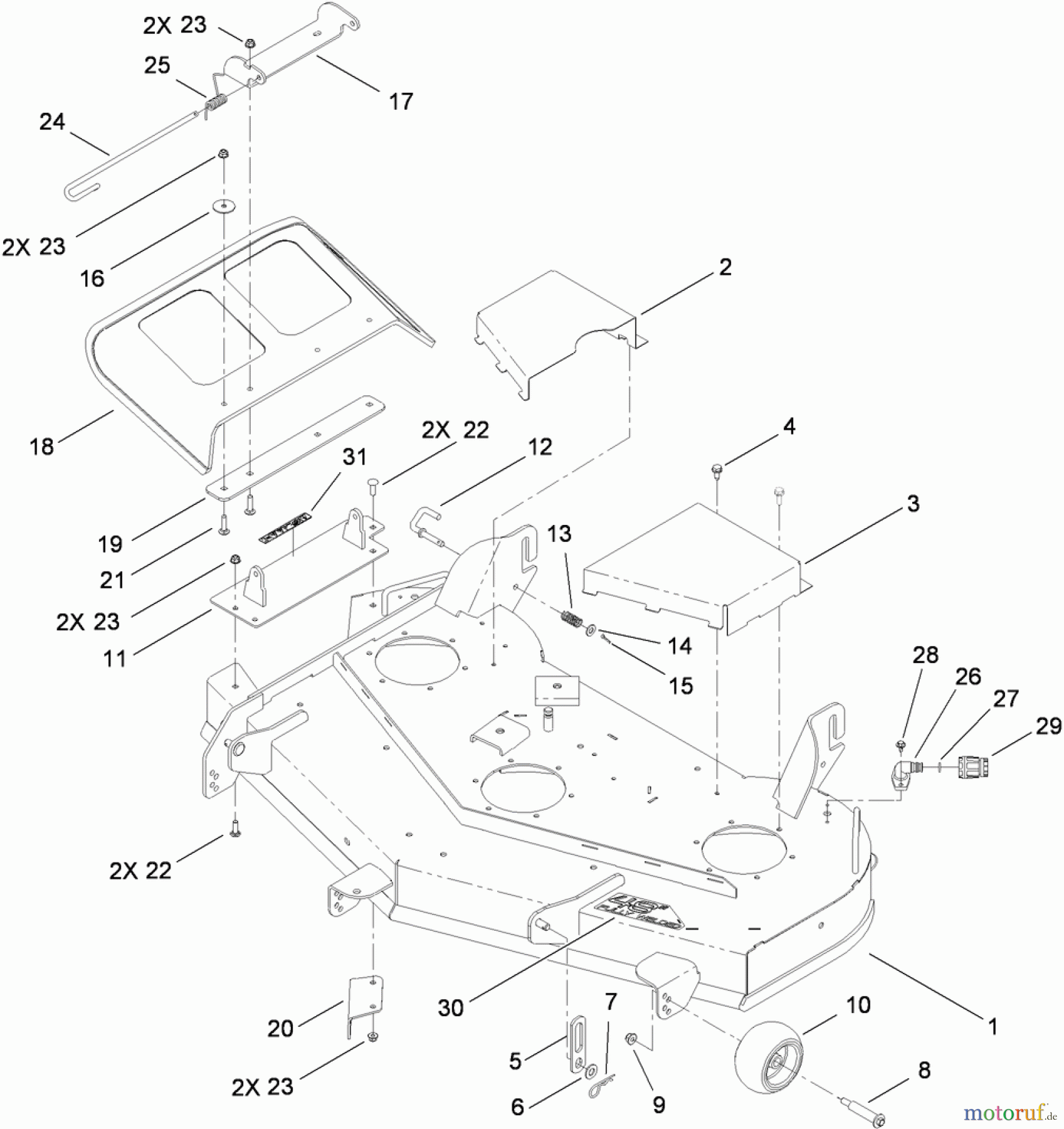

48 INCH DECK ASSEMBLY 74830 (ZX4800) - Toro TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74830 (ZX4800) - Toro TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) 48 INCH DECK ASSEMBLY
PosNúmero de artículoDescripción
1 TR119-338348 INCH DECK AND DECAL ASM
2 TR117-7396-03COVER-BELT, RH
3 TR117-7397-03COVER-BELT, LH
4 TR32144-70Schraube
5 TR115-2622LINK-LIFT
6 TR3256-26WASHER-FLAT
7 TR1-806005PIN-HAIR
8 TR112-3977BOLT-SHOULDER
9 TR104-8301Mutter
10 TR1-603299LAUFROLLE
11 TR117-7367-03PLATE ASM
12 TR115-2470PIN-LATCH
13 TR101853SPRING-COMPRESSION
14 Toro WASHER-FLATTR3256-24WASHER-FLAT
15 TR3272-10PIN-COTTER
16 TR3256-68Scheibe
17 TR114-1648-03BRACKET-DEFLECTOR, UPPER
18 TR117-1270DEFLECTOR-MOLDED
19 TR115-5048-03PLATE-DEFLECTOR
20 TR117-7418-03BAFFLE-CUTOFF
21 TR3230-3Schraube
22 TR3230-22Bolzen
23 TR104-8300Mutter
24 TR109-8854PIN-CHUTE
25 TR115-9641SPRING-TORSION
26 TR95-2747FITTING-WASHOUT
27 TR46-6290O-RING, SEAL
28 TR46-8560SCREW-HHFTF
29 TR95-3270SCHLAUCHFITTING
30 TR119-3382DECAL-DECK
31 TR937009
