Toro 74801 (Z18-52) - Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999) CARBURETOR ASSEMBLY KAWASAKI FH 531V-AS07 Listas de piezas de repuesto y dibujos

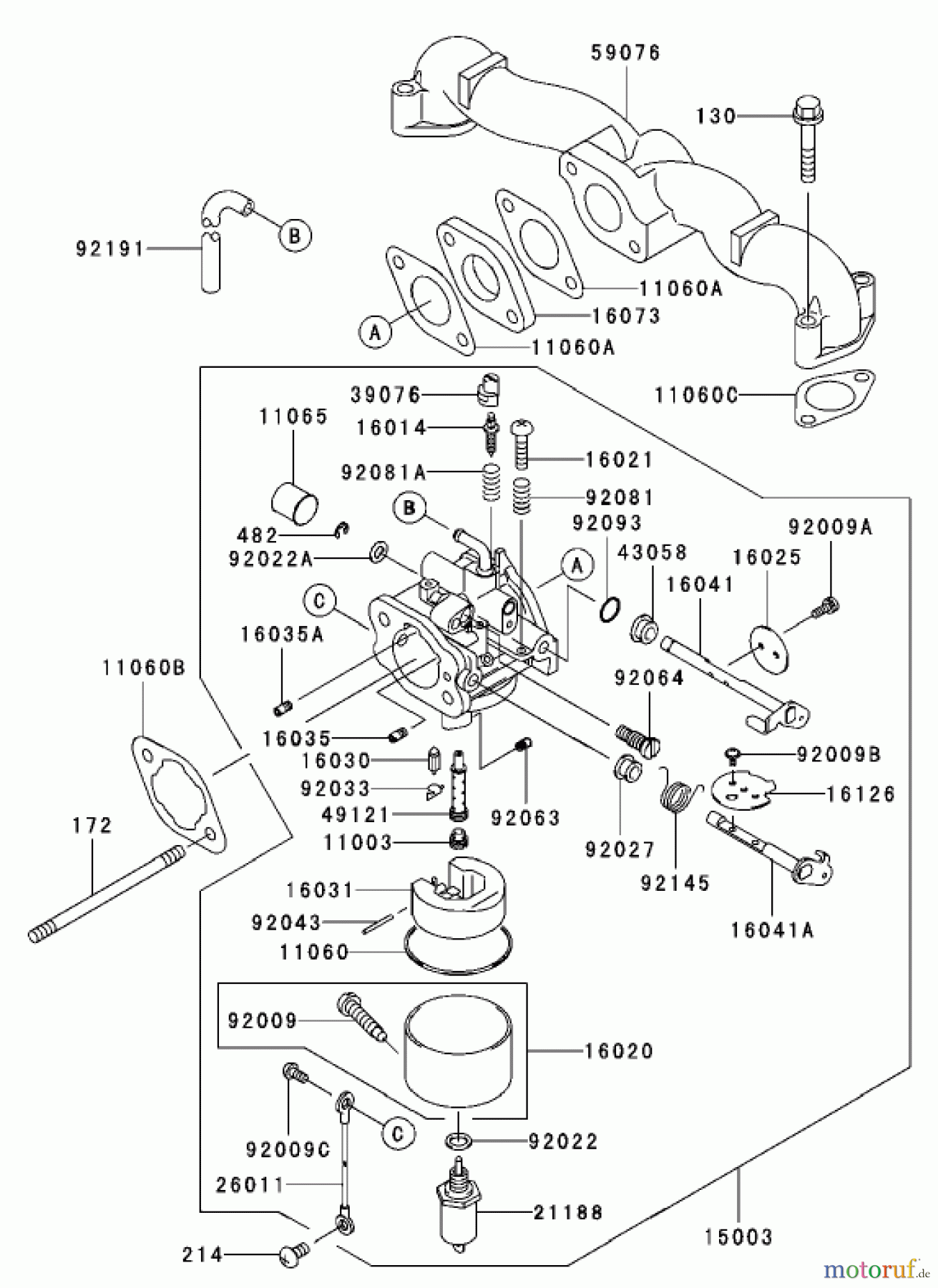

CARBURETOR ASSEMBLY KAWASAKI FH 531V-AS07 74801 (Z18-52) - Toro Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999)

Toro Neu Mowers, Zero-Turn 74801 (Z18-52) - Toro Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999) CARBURETOR ASSEMBLY KAWASAKI FH 531V-AS07
PosNúmero de artículoDescripción
11003 KA110032105VENTILSITZ
11060 KA110602406DICHTUNG
11060A KA110617004GASKET,MANIFOLD-CARB
11060B KA110617018GASKET,AIR CLEANER
11060C Toro GASKETKA110617019GASKET
11065 KA110652061CAP
16014 KA160142080SCREW-PILOT-AIR
16020 KA160202141CHAMBER-FLOAT
16021 KA160212060SCREW,THROTTLE ADJUST
16025 KA160252195VALVE-THROTTLE,#135
16030 KA160302067VALVE-FLOAT
16031 KA160312066FLOAT
16035 KA160352051JET-AIR,#1.4
16035A KA160352077JET-AIR,#0.8
16041 KA160412253SHAFT-CARB, THROTTLE
16041A KA160417006SHAFT-CARBURETOR
16073 KA160737007INSULATOR
16126 KA161267008VALVE
21188 KA211882011SOLENOID
26011 KA260112281WIRE-LEAD
39076 KA390762053LIMITER
43058 KA430583716RING
49121 KA491212227NOZZLE-MAIN
59076 KA590767017MANIFOLD-INTAKE
92009 KA920092015SCREW
92009A KA920092024SCREW
92009B Toro SCREWKA920092081SCREW
92009C KA920092400SCREW
92022 KA920222231WASHER
92022A KA920222239SCHEIBE
92027 KA920272025COLLAR
92033 KA920332067RING-SNAP
92043 KA920432226PIN
92063 KA920632267HAUPTDUESE
92064 KA920642103LEERLAUFDUESE
92081 KA920812009SPRING
92081A KA920812256FEDER
92093 KA920932002SEAL
92145 KA921452061SPRING
92191 KA921917016TUBE,4.76X7.94X225
130 KA130AA0635BOLT-FLANGED
172 KA172BA0685BOLT-STUD
214 KA214AA0510SCREW-PAN+-
482 KA482EA4000
