Toro 74630 (5000) - TimeCutter SS 5000 Riding Mower, 2011 (311000001-311999999) 50 INCH DECK BELT, SPINDLE AND HI-LIFT BLADE ASSEMBLY Listas de piezas de repuesto y dibujos

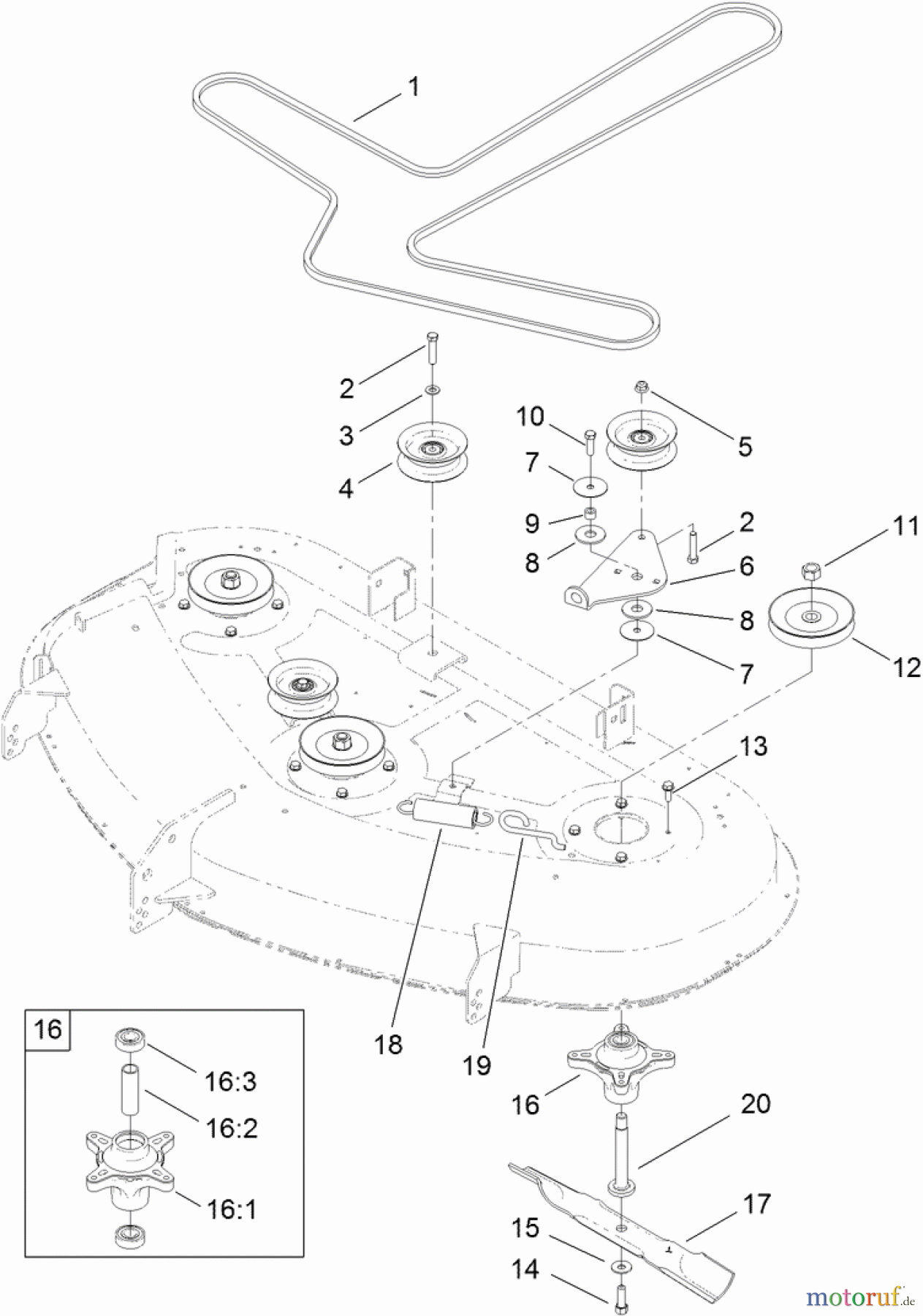

50 INCH DECK BELT, SPINDLE AND HI-LIFT BLADE ASSEMBLY 74630 (5000) - Toro TimeCutter SS 5000 Riding Mower, 2011 (311000001-311999999)

Toro Neu Mowers, Zero-Turn 74630 (5000) - Toro TimeCutter SS 5000 Riding Mower, 2011 (311000001-311999999) 50 INCH DECK BELT, SPINDLE AND HI-LIFT BLADE ASSEMBLY
PosNúmero de artículoDescripción
1 TR119-8820V-BELT
2 TR323-9Schraube
3 Toro WASHER-FLATTR3256-24WASHER-FLAT
4 TR106-2175Spannrolle
5 TR104-8301Mutter
6 TR114-8540ARM-IDLER
7 TR120-2229WASHER-IDLER PIVOT
8 TR114-0463WASHER-FRICTION, COMPOSITE
9 TR115-4986SPACER
10 TR323-7Schraube
11 TR3219-6Mutter
12 TR110-6865PULLEY
13 Toro SchraubeTR32144-41Schraube
14 Toro SCHRAUBETR26-0671SCHRAUBE
15 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
16 TR117-7439SPINDLE ASM
16:1 TR117-7267
16:2 TR117-7269SPACER
16:3 TR100-1048Kugellager
17 TR115-5059-03BLADE-HI LIFT, 17.50 INCH
18 TR1-603414Zugfeder
19 TR112-3973HOOK-RETURN, SPRING
20 TR117-7268SHAFT-SPINDLE
