Toro 74381 (Z4202) - TimeCutter Z4202 Riding Mower, 2008 (280000001-280999999) BLOWER HOUSING ASSEMBLY KOHLER SV710-0027 Listas de piezas de repuesto y dibujos

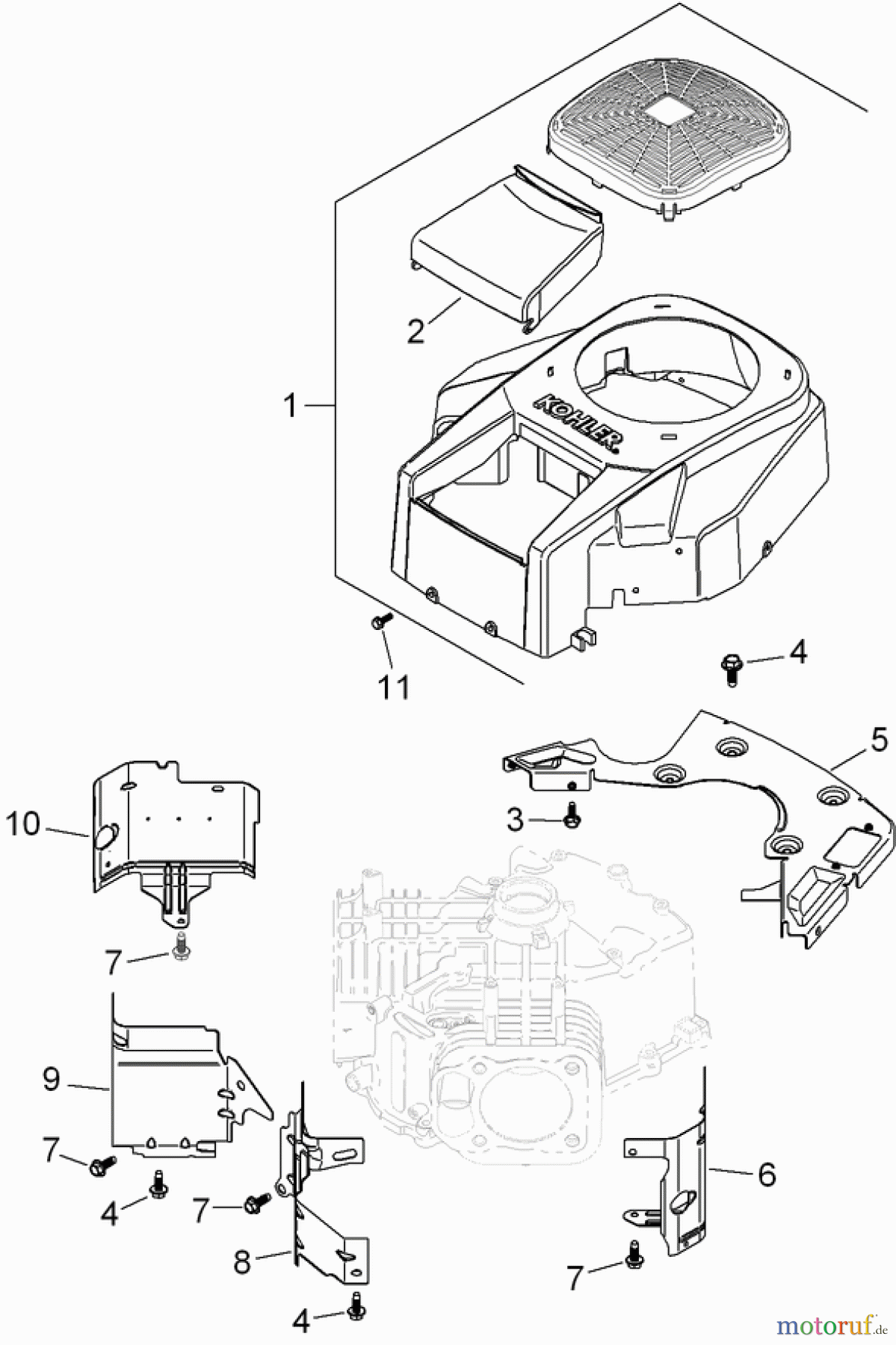

BLOWER HOUSING ASSEMBLY KOHLER SV710-0027 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74381 (Z4202) - Toro TimeCutter Z4202 Riding Mower, 2008 (280000001-280999999) BLOWER HOUSING ASSEMBLY KOHLER SV710-0027
PosNúmero de artículoDescripción
1 KH3202708-SKIT, BLWER HOUSING-FIXED GUARD
2 KH3209608-SCOVER, AIR CLEANER
3 KHM-545010-SSCREW, FLG THD FRM M5X.8X10
4 KH25086426-SSCREW, THREAD FORMING
5 KH3214605-SKIT, BACKING PLATE
6 KH3206312-SBAFFLE, CYL BARREL - #2 SIDE
7 KH25086397-SSCREW, THREAD FORMING
8 KH2406394-SBAFFLE, VALLEY #2 CYLINDER
9 KH2406393-SBAFFLE, VALLEY #1 CYLINDER
10 KH3206310-SBAFFLE, CYL BARREL - #1 SIDE
11 KH2408612-SSCREW, TAP M6X1.7X18
KH3211311-SDECAL, FIXED GUARD
KH4103710-SNAMEPLATE, SERVICE
