Toro 74373 (Z5030) - TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) CONTROL ASSEMBLY Listas de piezas de repuesto y dibujos

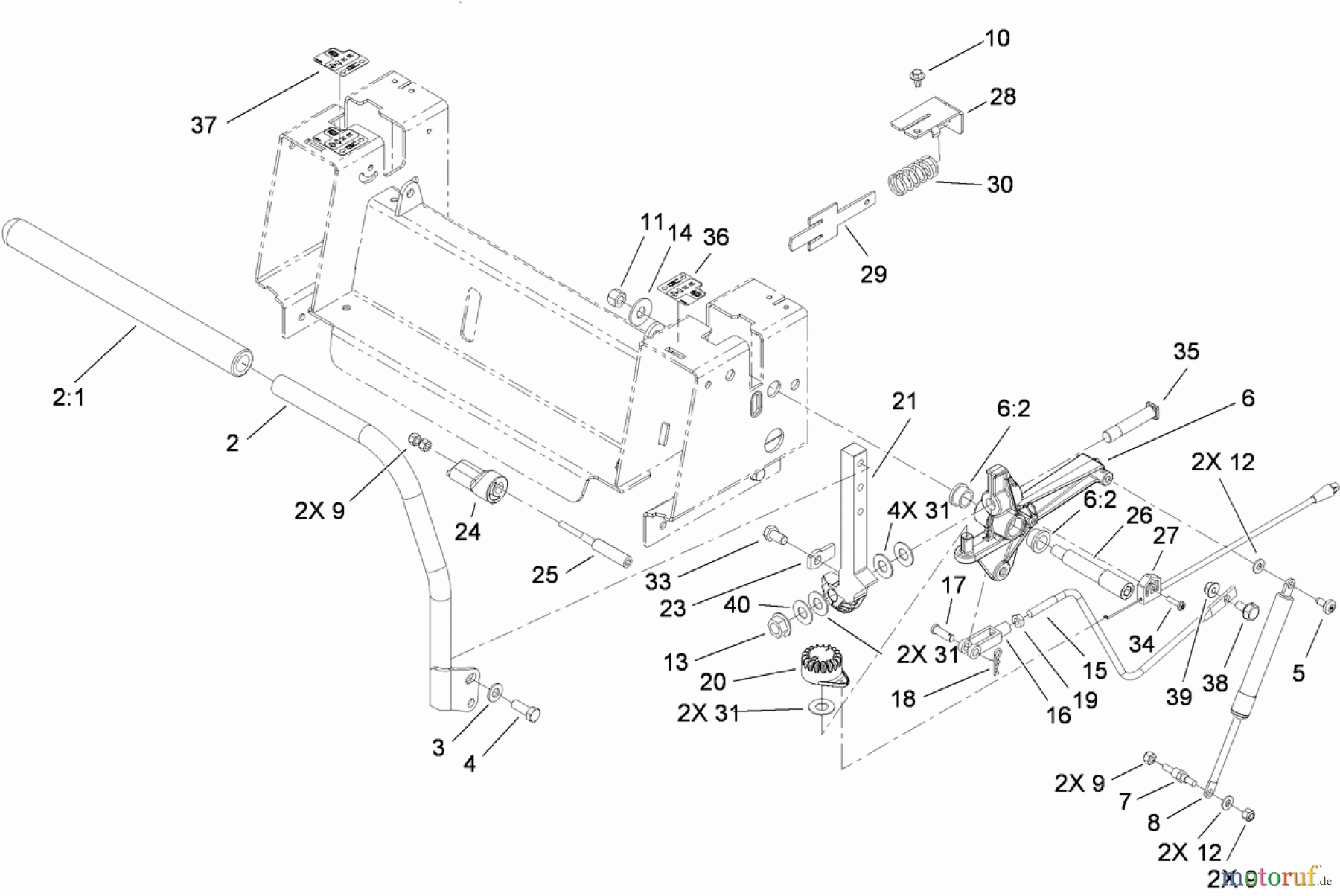

CONTROL ASSEMBLY 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012)

Toro Neu Mowers, Zero-Turn 74373 (Z5030) - Toro TimeCutter Z5030 Riding Mower, 2009 (290000001-290004012) CONTROL ASSEMBLY
PosNúmero de artículoDescripción
1:1 TR108-6187GRIP
1 TR117-5339RH CONTROL HANDLE ASM
2 TR110-6815LH HANDLE ASM
2:1 TR108-6187GRIP
3 Toro WASHER-FLATTR3256-24WASHER-FLAT
4 TR323-6Schraube
5 TR112-4004SCREW-SHOULDER
6 TR110-6828ACTIVATOR ARM ASM
6:2 TR105-3455BUSHING
7 TR110-6810STUD-DAMPER
8 TR103-2913Stossdaempfer
9 Toro MutterTR3296-42Mutter
10 TR46-8560SCREW-HHFTF
11 TR3296-48Stopmutter
12 TR3256-22Scheibe
13 TR32128-23Mutter
14 TR3256-5Scheibe
15 TR110-6693LINK-HYDRO
16 TR1-303105YOKE-ADJUSTABLE
17 TR1-808280PIN-CLEVIS
18 TR1-806003HAARNADELSICHERUNG
19 TR3220-2Mutter
20 TR110-6845GEAR-CONTROL
21 TR110-6783-05ARM-ACTUATOR, LH
22 TR110-6782-05ARM-ACTUATOR, RH
23 TR115-5023TAB-STOP
24 TR110-6873ECCENTRIC
25 TR110-6874SCREW-ECCENTRIC
26 TR110-6875BOLT-SHOULDER
27 TR110-6858CABLE-BRAKE, PARKING
28 TR110-6751BRACKET-RETURN
29 TR110-6750PLATE-RETURN
30 TR110-6752SPRING-COMPRESSION
31 TR110-6894WASHER-PIVOT
33 TR323-4Schraube
34 TR110-0863SCREW-TORX
35 TR1-106784DISCONTINUED
36 TR112-9750DECAL-CONTROL LEVER, LH
37 TR112-9751DECAL-CONTROL LEVER, RH
38 TR37-8771Schraube
39 TR104-8300Mutter
40 TR112-9771WASHER-TEFLON
