Compact Utility Loaders STARTER ASSEMBLY Listas de piezas de repuesto y dibujos

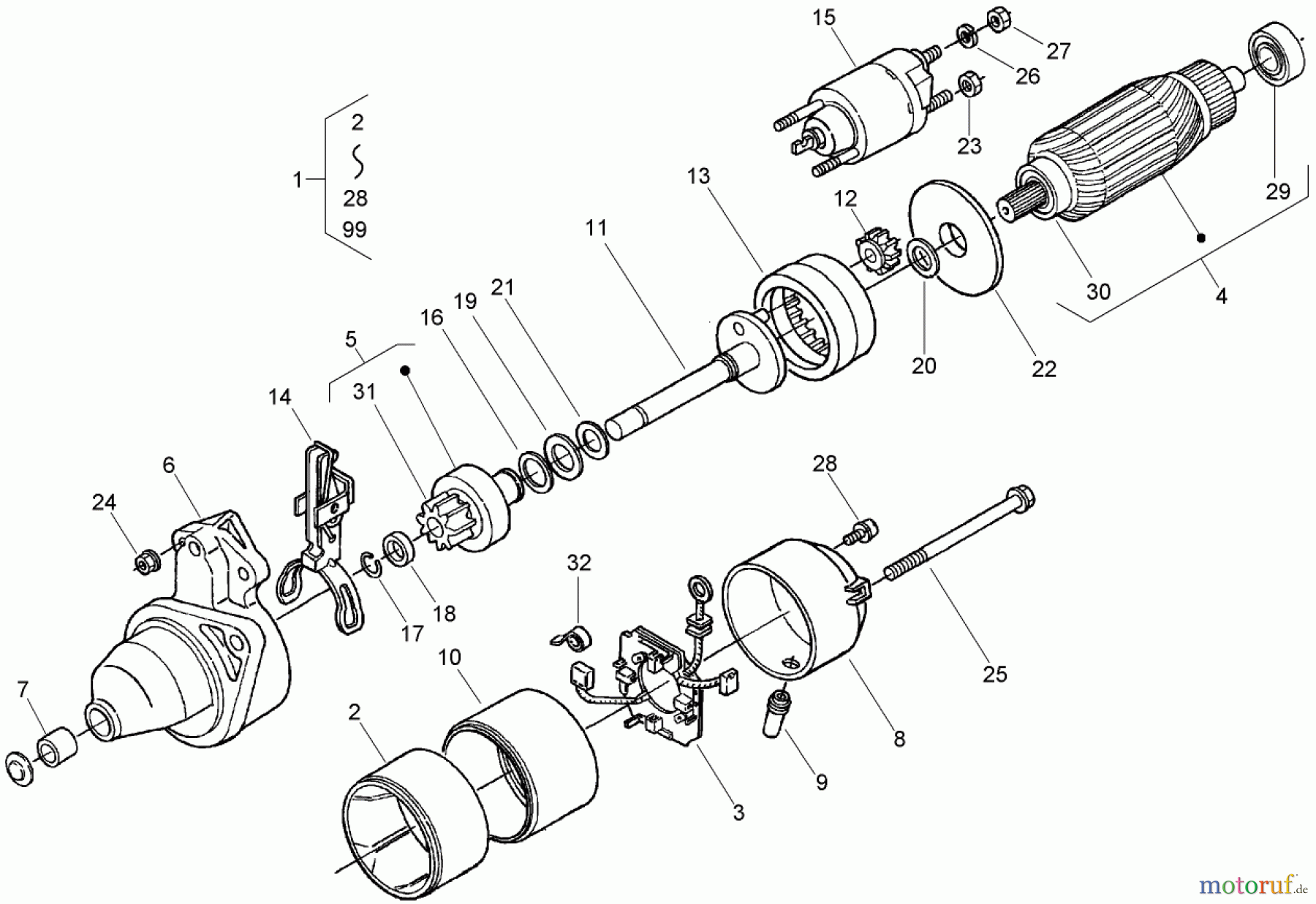

STARTER ASSEMBLY 22337CP - Toro Dingo 320-D Compact Utility Loader (SN: 311000001 - 311999999) (2011)

Compact Utility Loaders 22337CP - Toro Dingo 320-D Compact Utility Loader (SN: 311000001 - 311999999) (2011) STARTER ASSEMBLY
PosNúmero de artículoDescripción
1 TR100-2179STARTER ASM
2 TR100-2181STARTER YOKE ASM
3 TR100-2222HOLDER ASM
4 TR100-2182ARMATURE ASM
5 TR100-2185STARTER CLUTCH ASM
6 TR100-2180STARTER HOUSING ASM
7 TR100-2183BEARING
8 TR100-2186FRAME ASM
9 TR100-2213COVER
10 TR100-2223BEARING ASM
11 TR100-2187STARTER SHAFT ASM
12 TR100-2220GEAR
13 TR100-2221GEAR
14 TR100-2218LEVER
15 TR100-2211MAGNETIC SWITCH ASM
16 TR100-2219RING-SNAP
17 TR100-2212RING-SNAP
18 TR100-2216COLLAR
19 TR100-2224WASHER-PLAIN
20 TR100-2225WASHER-PLAIN
21 TR100-2226WASHER-PLAIN
22 TR100-2227PLATE
23 TR99-8371NUT-HEX
24 TR100-1813MUTTER
25 TR100-2210BOLT-THROUGH
26 TR100-2215WASHER-SPRING
27 TR100-2171NUT-HEX
28 TR100-2188SCREW
29 TR98-9412BEARING-BALL
30 TR98-9411BEARING-BALL
31 TR112-2833GEAR-PINION
32 TR98-7750Feder
99 TR99-1434WIRE-LEAD
