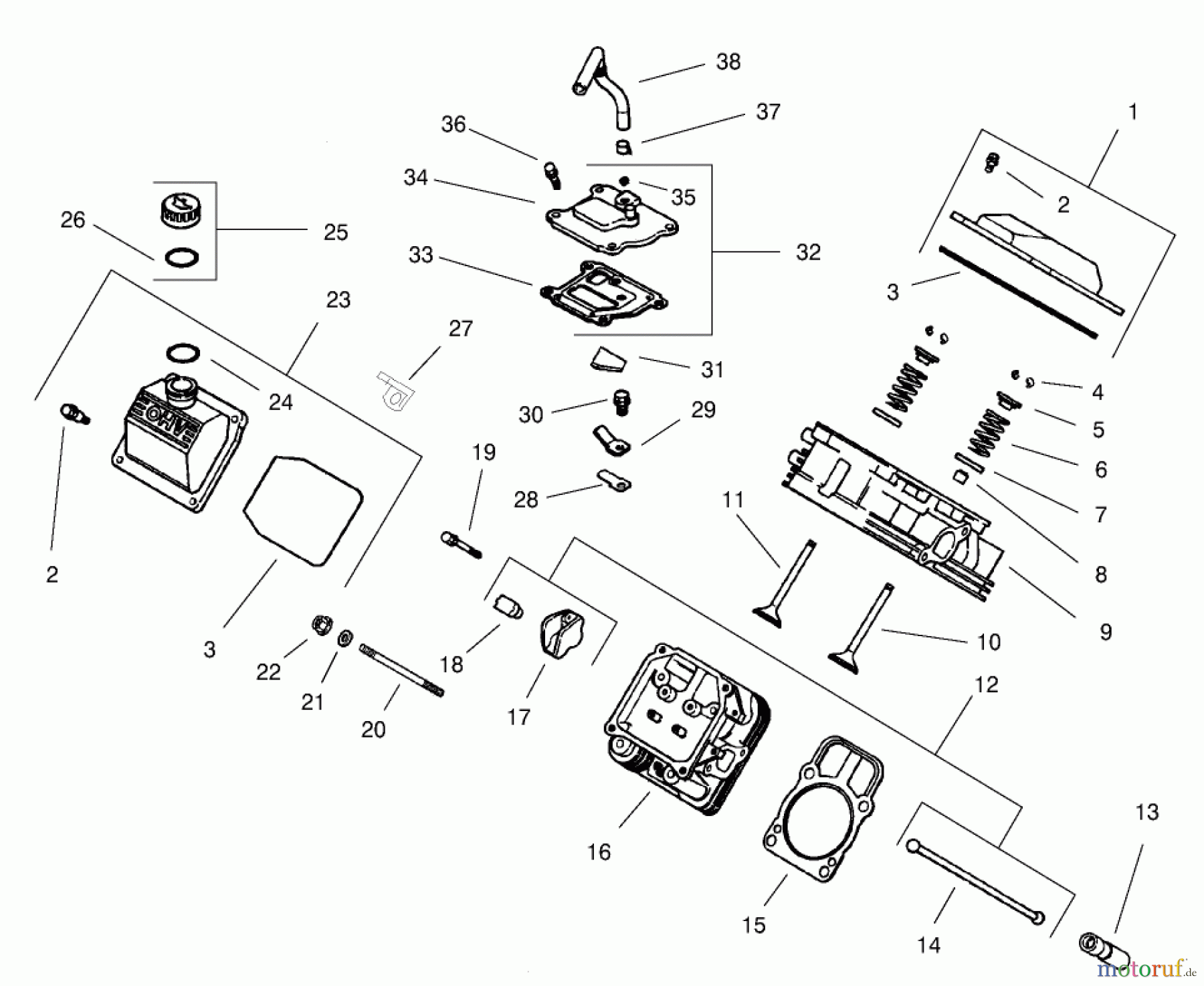

Compact Utility Loaders HEAD/VALVE/BREATHER (CH20S 64656 KOHLER) Listas de piezas de repuesto y dibujos

HEAD/VALVE/BREATHER (CH20S 64656 KOHLER) 22306 - Toro Dingo TX 420 Compact Utility Loader (SN: 220000401 - 220999999) (2002)

Pos	Número de artículo	Descripción
1	KH24755141-S	KIT, VALVE COVER-PLAIN
2	KH2408632-S	SCREW, SHOULDER
3	KH2415323-S	O-RING (BLACK)
4	KH1275503-S	KIT, RETAINER
5	KH2517328-S	CAP, VALVE SPRING
6	KH2408902-S	SPRING, VALVE
7	KH235011-S	RETAINER, SPRING
8	KH6603205-S	SEAL, VALVE STEM
9	KH24318107-S	KIT, #1 CYLINDER HEAD ASSEMBLY
10	KH2401701-S	VALVE, INTAKE (STD)
	KH2401702-S	VALVE, INTAKE (.25)
11	KH2401601-S	VALVE, EXHAUST (STD)
	KH2401602-S	VALVE, EXHAUST (.25)
12	KH2475566-S	KIT, VALVE TRAIN
14	KH2441105-S	ROD, PUSH
15	KH2484101-S	KIT, CYL HEAD GASKET (C17-22)
16	KH24318115-S	KIT, #2 CYLINDER HEAD ASSEMBLY
17	KH2518601-S	ARM, ROCKER
18	KH2459901-S	PIVOT, CYLINDRICAL ROCKER ARM-
19	KHM-640034-S	SCREW, FLG M6X1.0X34
20	KH2407209-S	STUD, M8X1.25
21	KH2446816-S	WASHER, FLAT 8.6 MM
22	KH2410010-S	NUT, FLG M8X1.25
23	KH24755140-S	KIT, VALVE COVER-OIL FILL
24	KH2415332-S	O-RING
25	KH2475546-S	KIT, OIL FILL CAP (YELLOW)
26	KH2515302-S	O-RING, DIPSTICK
27	KH2444501-S	STRAP, LIFTING-USE 25 445 03-S
28	KH2440203-S	REED, BREATHER
29	KH6601804-S	RETAINER, REED
30	KHM-545010-S	SCREW, FLG THD FRM M5X.8X10
31	KH2405011-S	FILTER, BREATHER
32	KH2403301-S	KIT, BREATHER ASSEMBLY
33	KH2404150-S	GASKET
34	KH2409686-S	USE 24 033 01-S KIT, BREATHER
35	KH2513960-S	PLUG, CTSK PIPE 1/8"
36	KH25086396-S	SCREW, THREAD FORMING
37	KH2523714-S	CLAMP, HOSE (KM)-USE 25 237 31
38	KH2432676-S	HOSE, BREATHER-USE 24 326 89-S
