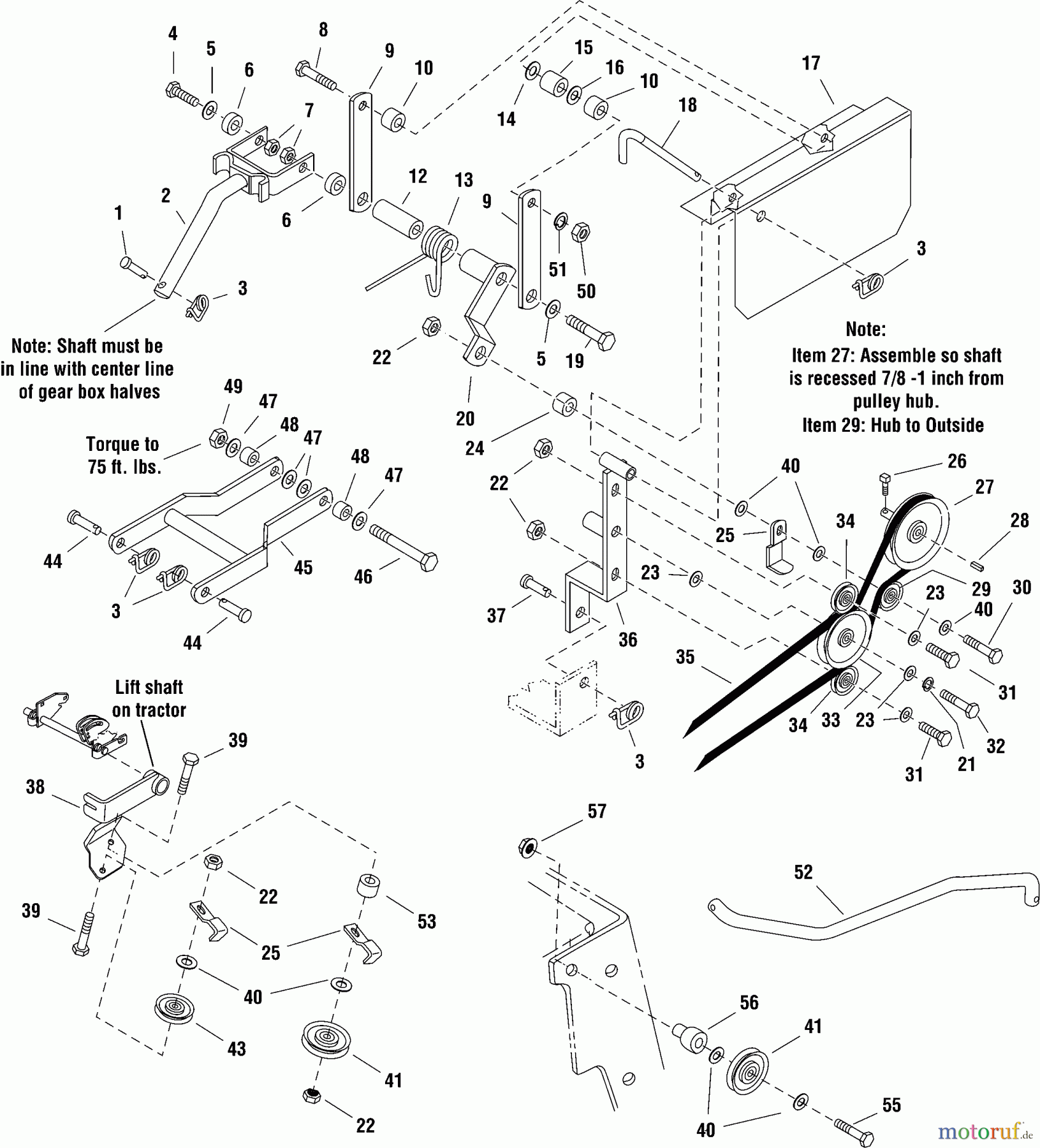

Snapper 1695419 - 36" Tiller Rear Drive Group (2987907) Listas de piezas de repuesto y dibujos

Drive Group (2987907) 1695419 - Snapper 36" Tiller Rear

Snapper Zubehör, Fräsen und Kultivierer 1695419 - Snapper 36
PosNúmero de artículoDescripción
1 BS2118053SMSICHERUNGSSTIFT 3
2 BS1707569ASM
3 BS703852PIN, 5/16 X 0.375
4 BS703579HHCS, 7/16-14X1.25
5 BS1925125SMWASHER-0.437(0.47IDX0
6 BS2105346SM
7 BS1930650SMBUNDMUTTER 7/16-1
8 BS7090831YPHHCS, 5/16C X2-3/4 GR
9 BS2105359A
10 BS1704716SM
12 BS2105339ASM
13 BS1707593SM
14 BS2860171SMWASHER-SPCL 0.641IDX1
15 BS703121BUCHSE
16 BS1921319SMABZIEHER-SCHEIBE
17 BS1707564ASM
18 BS1657562SM
19 BS1930585SMCAPSCREW-HEX HD 7/16-
20 BS2105295A
21 BS1916965
22 BS703158MUTTER
23 BS703878WASHER, FLAT
24 BS1709923SM
25 BS1708352ASMFEDERSCHUTZ SCHWARZ
26 BS1960474SMSET SCREW
27 BS1723854SM
28 BS2157427SMKEIL .187
29 BS1721133SMPULLEY, IDLER
30 BS703182HHCS, 3/8-16 X 3.500
31 BS704289
32 BS703871KOPFSCHRAUBE,3/8-16X1.25
33 BS1706510SMRIEMENSCHEIBE 04.00 OD
34 BS1706511SM
35 BS1723478SM
36 BS1708961ASM
37 BS1708298SMPIN-RND HD DRILLED .3
38 BS1735064A
39 BS703872KOPFSCHRAUBE,3/8-16X2.25
40 BS1922755SMABZIEHER-SCHEIBE
41 BS1724387SMRIEMENSCHEIBE
43 BS1721134SMROLLE, 3" OD
44 BS1753526
45 BS1651844ASM
46 BS1926159SMCAPSCREW-HEX HD 1/2-
47 BS1924361SMSCHEIBE-0500(0.53IDX1.
48 BS2105386SMSPACER-0.517IDX0.874O
49 BS1930644SMBUNDMUTTER 1/2-1
50 BS7091511SMMUTTER, 5/16C GR5 YZ
51 BS703116LCKWSHR
52 BS1735052SM
53 BS1667812SMDISTANZBUCHSE
55 BS703873KOPFSCHRAUBE,3/8-16X2.5
56 BS1706644SMSPACER,3/8X3/4X15/16
57 BS1928352SMNUT - HEX FLANGE
