Murray 425610x99B - B&S/ 42" Lawn Tractor (2001) (AAFES) Mower Housing Suspension Listas de piezas de repuesto y dibujos

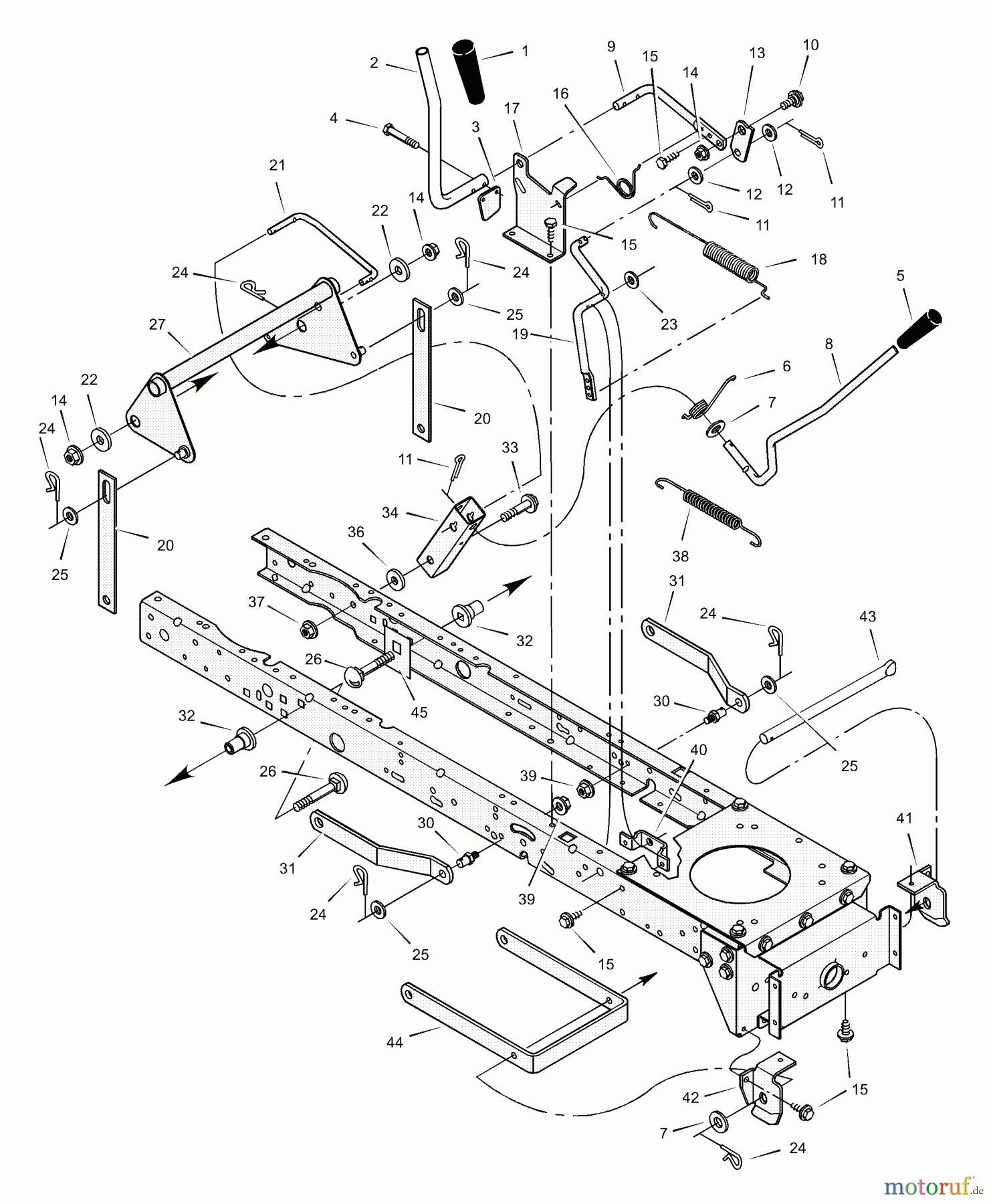

Mower Housing Suspension 425610x99B - B&S/Murray 42" Lawn Tractor (2001) (AAFES)

Murray Rasen- und Gartentraktoren 425610x99B - B&S/Murray 42
PosNúmero de artículoDescripción
1 BS092698MAGRIFF - .625 ID- SCHWARZ
2 BS094346ZMAPTO HANDLE - 3510 HOO
3 BS094022ZMAPADDLE-SWITCH
4 BS0025X3MASCHRAUBE-THD.FORM.HEX.
5 BS092697MAGRIP - .50 ID - BLACK
6 BS166X40MATORSIONSFEDER LINKS
7 BS17X103MAUNTERLEGSCHEIBE.53X1X.12 FLAT
8 BS690533MAHANDLE, LIFT
9 BS094017ZMALEVER - PTO
10 BS009X39MAANSATZBOLZEN .38-16 X .
11 BS030X20MAPIN-COTTER.09D-.750L
12 BS17X102MAUNTERLEGSCHEIBE-MAHER
13 BS094004ZMAPTO LINK
14 BS015X84MAMUTTER, CENTERLOCK .38-
15 BS26X249MASCREW-.312-18X.75
16 BS166X39MATORSIONSFEDER PTO
17 BS094018E701MAHALTERUNG-PTO
18 BS165X119MAZUGFEDER
19 BS690394E701MACRANK, PTO
20 BS690212E701MALIFT LINK (LT)
21 BS690122E701MALIFT HANDLE LINK
22 BS17X168ZMAUNTERLEGSCHEIBE.39-1.2-.11 FL
23 BS017X57MAUNTERLEGSCHEIBE.47.72 16G FLT
24 BS0031X4MAPIN, HAIR .56D - .09
25 BS017X91MAWASHER,FLAT .54.81
26 BS002X85MABOLT-CRG.37-16X2.25
27 BS1001111E701MAVERSTELLHEBEL KLOMPL.
30 BS094067MAANSATZGEWINDESTIFT
31 BS094055E701MAHALTER HECKAUFHANGUNG/HECKFEDE
32 BS690151MASPACER - LIFTER
33 BS009X53MABOLT,SHD .38-16X.565
34 BS094015E701MABRACKET-PIVOT
36 BS17X191MAUNTERLEGSCHEIBE - VORNUT
37 BS015X84MAMUTTER, CENTERLOCK .38-
38 BS165X131MAZUGFEDER LIFT - LT
39 BS015X68MAMUTTER.38-16 FLANSCHARRETIERUN
40 BS094005E701MAKULISSENBREMSE
41 BS094027E701MAHANGER - DECK LH
42 BS094026E701MAHANGER - DECK RH
43 BS094158ZMAROD - HANGAR
44 BS690539E701MABRKT-FRT SUSPENSION
45 BS690389E700MAPLATE,STIFFENING
