Echo SRM-2501 - String Trimmer, S/N:079352 - 098240 Gear Case, Shield, Metal, Harness Listas de piezas de repuesto y dibujos

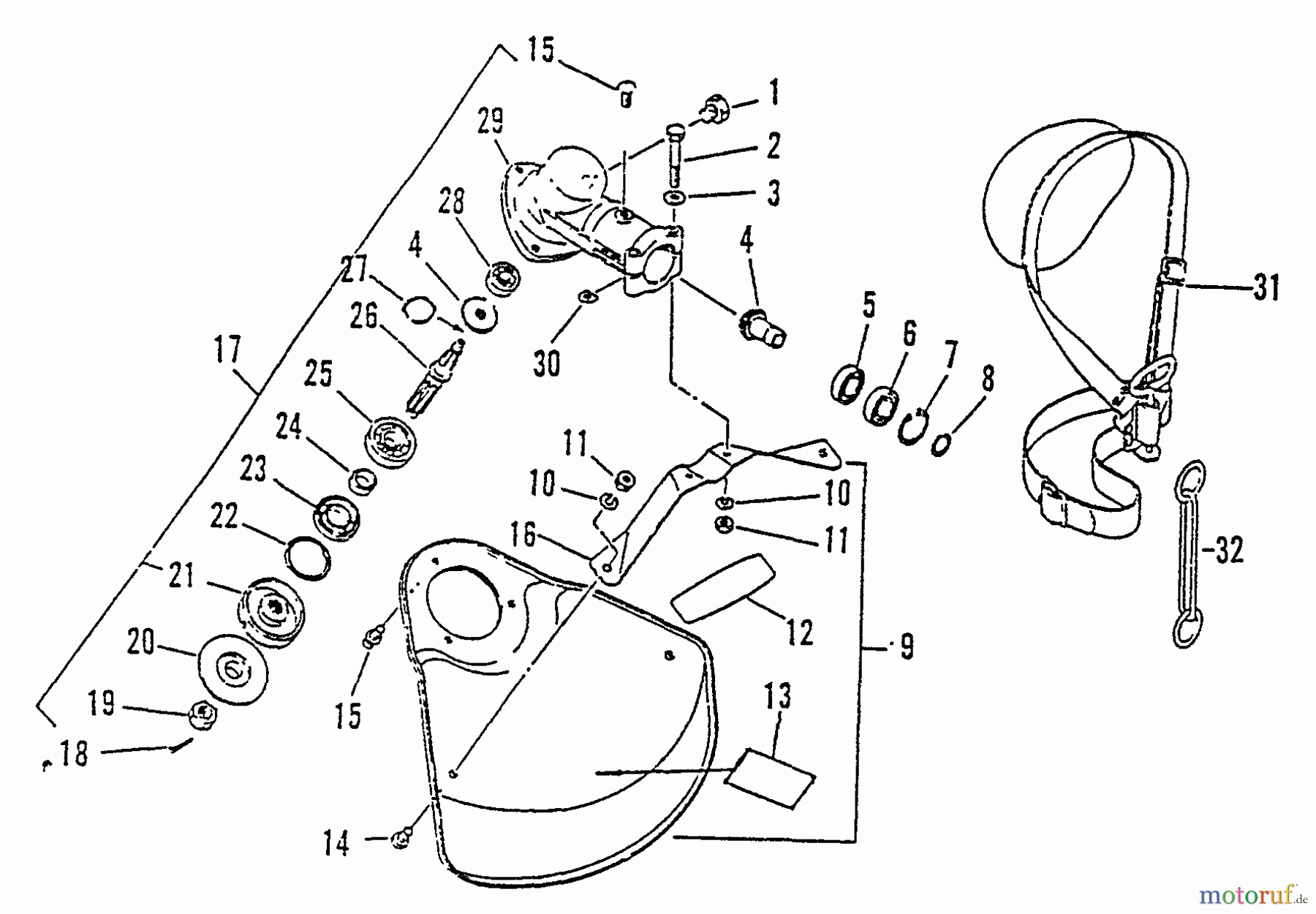

Gear Case, Shield, Metal, Harness SRM-2501 - Echo String Trimmer, S/N:079352 - 098240

Pos	Número de artículo	Descripción
1	16-900100-08008	Schraube(Eisen) (10)
2	16-900100-05035	Schraube
3	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
4	16-610300-44830	Getriebesatz Anbau-
5	16-900855-06900	Kugellager, NSK (Nippon
6	16-900858-06900	Kugellager,NSK (Nippon Seikkon
7	16-900702-00022	Seegerring, innen, 22mm HCA-
8	16-900706-00012	Haltering PPT-300ES
9	1669900023432
10	16-900605-00005	Scheibe PB-250/EC-7600
11	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
12	16X502000320
13	1689016841031
14	16-900220-05008	Schraube
15	16-900242-05010	Schraube PPT-300ES
16	1669901523431
17	1661040240932
18	16-900300-20022	Splint PAS-2400, RMA-2530, RM-
19	16-900511-00010	Linksgewindemutter f. Messer-
20	16C535000150
21	16C535000160
22	16-900702-00032	Seegerring, innen, 32mm
23	16-610413-07130	Simmering
24	16-610315-07130	Hülse RM-380, SRM-3150/-3800
25	16-94035-36201	Kugellager EA-410/SHR-170SI
26	16-610360-08931	Antriebsstück
27	16-900706-00010	Haltering
28	16-900800-00609	Kugellager PB-46LN
29	1661046027431
30	16-610239-04130	Scheibe
31	16C062000070
32	16-301305-24330	Halterung SRMF-3, SRM-2010/
