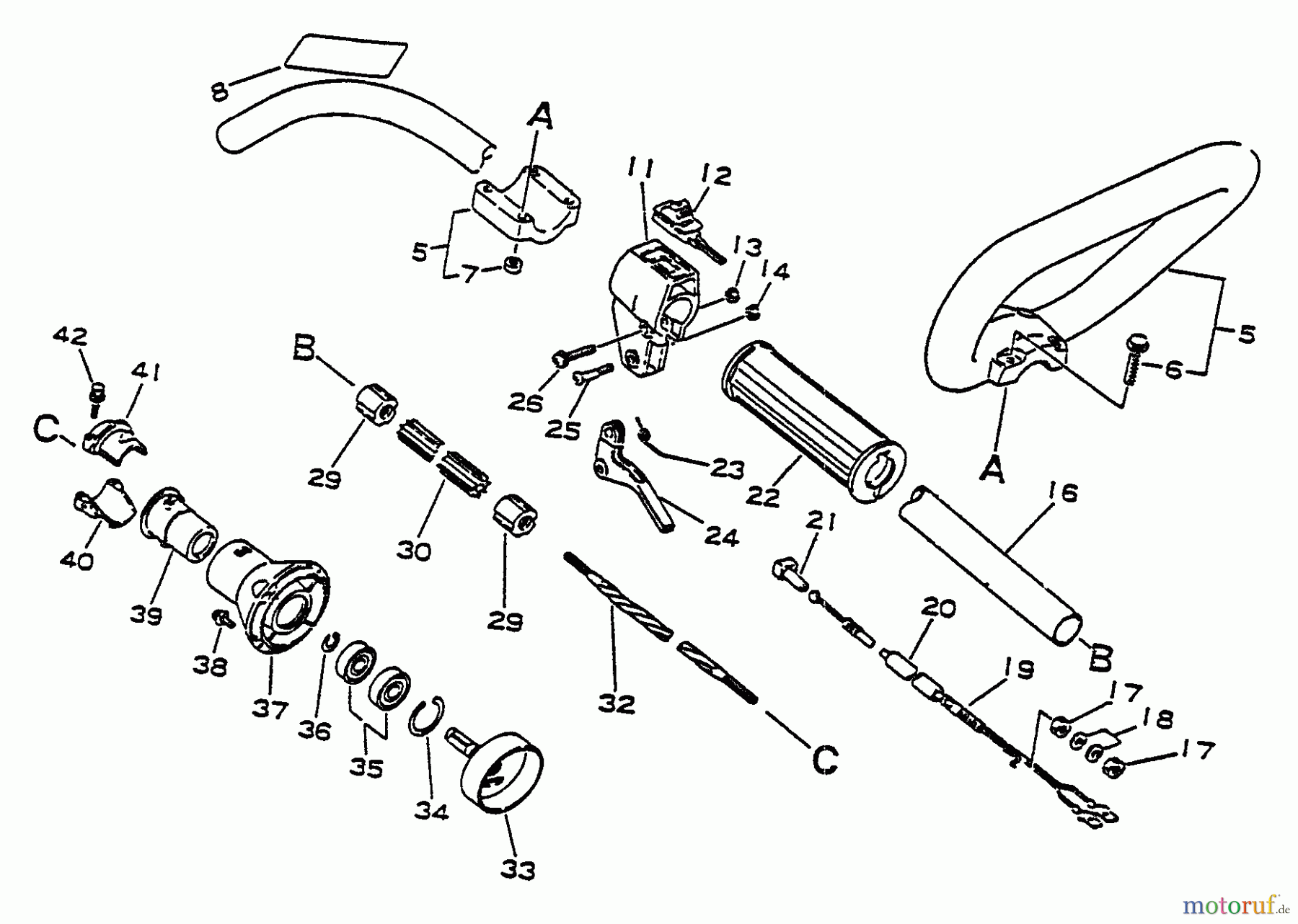

Echo PE-2201 - Edger Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Listas de piezas de repuesto y dibujos

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing PE-2201 - Echo Edger

Echo Kantenschneider PE-2201 - Echo Edger Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing
PosNúmero de artículoDescripción
5 16-351201-51730Handgriff kpl. (Rund) SRM
6 16-900500-00005Mutter PPT-300ES/T-226 EDR-
7 16-900242-05035Schraube SRM 4000 L/ 5000 L
8 1689016048030
11 1699999999999
12 1616340049130
13 16-900500-00005Mutter PPT-300ES/T-226 EDR-
14 16-900560-00005Mutter M5, selbstsichernd (10)
16 1661020649030
17 16-900502-00006Mutter SRMF-340 6 (3N)
18 16-900600-00006Scheibe
19 1617800140930
20 1617812740930
21 16-178048-05630Halterung RM-310, SRM-200AE,
22 1635101244730
23 16-178043-06930Feder RM-310, SRM-200AE, SRM-
24 16-C450-000070Feder, Gasgriff CS-2600
25 16-178110-05330Schraube
26 16-900242-05030Schraube
29 16-610246-44730Führung HCA-2400
30 16C507000260
32 16-C506-000390Antreibswelle flexibel C-225S
33 1617500551730
34 16-900702-00028Seegerring, innen, 28mm
35 169405106001
36 16-900701-00012Seegerring außen 12mm
37 1661022349230
38 16-900242-05016Schraube
39 16-610910-27832Gummilager SRM 2450
40 16-610922-27432Halter HCA-2410
41 16-610923-27432Halter
42 16-900142-05025Schraube HCA-2400, PAS-2400,
44 1689511300330
45 16-895112-00330Gabelschlüssel PPT-300ES
46 16-X602-000020Kombischlüssel PAS-2400/EA-410
