> Ride-on Mowers > Trac > OHV 6 > Trac OHV 6 > Operation mower elements, Height-adjustment

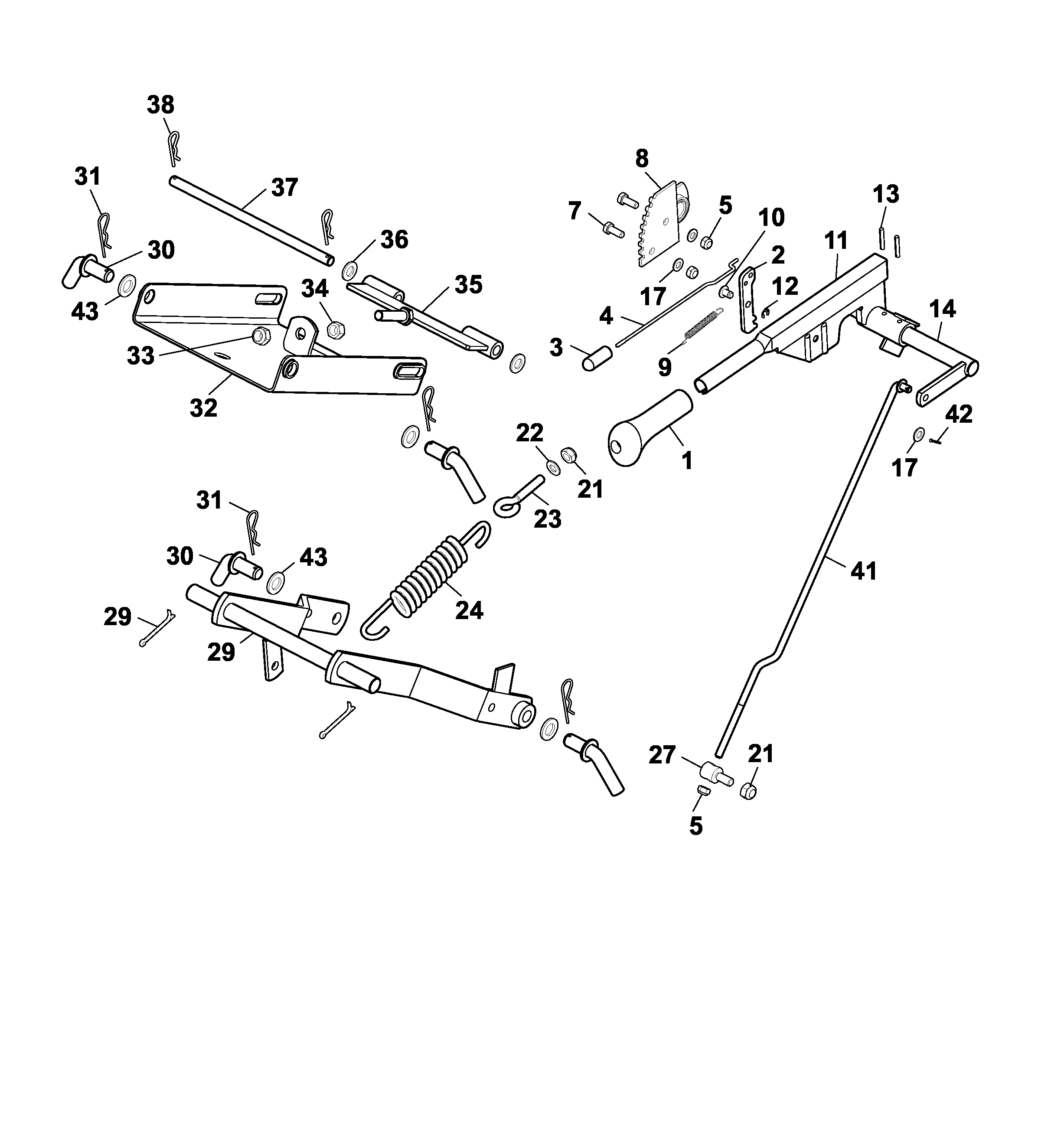

Lista de repuestos para Wolf Ride-on Mowers Operation mower elements, Height-adjustment

Lista de repuestos

pos.	descripción	Número de pieza
1	Handle Black	6205 320
2	Ratchet Pivot Plate	6205 103
3	Plunger Button - Black	6205 305
4	Connection Rod	6205 111
5	Hex. Nut	0016 312
7	Hex Screw M8 X 20 Din 933 8.8	0010 402
8	Gear Segment	6200 118
9	Tension Spring	6205 415
10	Arm Lever Pin	6205 480
11	Height Adjustment Arm Lever	6205 458
12	Clip For Pin 6 Din 6799	6205 585
13	Spring Pin 5X30 Din 1481	6205 571
14	Height Adjuster Shaft	6200 495
17	Washer A 8,4 Din 125	0017 123
21	Self-Locking Nut M10-Din 985 Cl.8	0016 316
22	Washer 10,5-Din 125A	0017 124
23	Screw	6205 455
24	Tension Spring	6205 419
25	Pivot Arm Assy.	6205 020
27	Bolt	6205 118
29	Cotter Pin 5X50 Din 94	6205 560
30	Bolt	6200 141
31	Clip	6205 107
32	Front Suspension Mower Deck	6205 324
33	Self-Locking Nut M12 Din 982 Cl.8	6205 564
34	Hex Nut M12 Din 934 Cl.8	6205 557
35	Front Holder	6205 456
36	Cog Pulley 28	0017 125
37	Bolt	6205 109
38	Clip	6205 120
41	Rod K3 200958673	6200 523
42	Cotter Pin 2X18 Din 94	6205 563
43	Rubber Washer	6200 142
