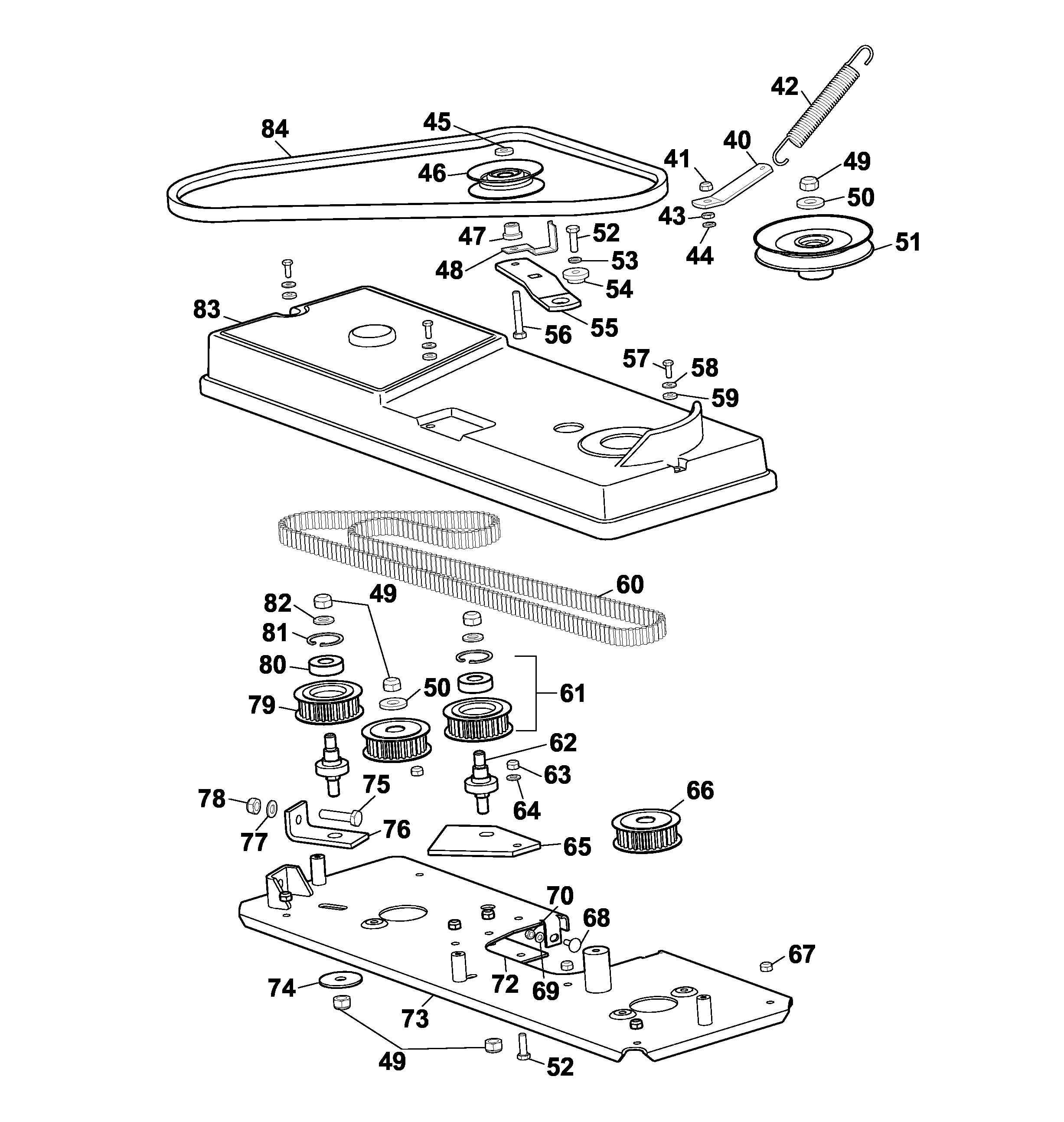

Lista de repuestos para Wolf Ride-on Mowers Cutting pan drive system




Lista de repuestos


pos.descripciónNúmero de pieza
40Adjusting Lever6205 102
41Hex. Nut0016 312
42Tension Spring6205 421
43Hex Nut M 8 Din439 B Cl.040016 110
44Washer Spring0017 909
45Washer0017 484
46Idler Pulley W3500 - 37126205 157
47Bush6205 163
48Belt Retainer6205 474
49Self-Locking Nut M12 Din 982 Cl.86205 564
50Flat Washer 21 Din 125 A0017 129
51Pulley6205 160
52Hex screw M8 x 25 DIN 933 8.80010 395
53Washer Spring0017 909
54Flanged Bush6205 152
55Idler Arm6205 475
56Screw0010 337
57Screw0010 400
58Flat Washer 6.4 Bn 7376205 540
59Rubber Washer 6.46205 328
60Cog belt 20DS 8M 1760 Bando6200 146
61Cog Pulley Assy6205 022
62Bolt6205 470
64Washer A 8,4 Din 1250017 123
65Supporting Sheet Metal6205 476
66Drive Cog Pulley 286205 162
67Hex. Nut0016 312
68Screw M6X16 Din 603 6.86205 582
69Washer0017 121
70Nut0016 311
72Washer6205 477
73Blade Drive Plate Assy6205 031
74Eccentric Bolt Washer 12.4X50X36205 545
75Hex Screw M10 X 45 Din 933 8.86205 577
76Holding Angle6205 478
77Washer 10,5-Din 125A0017 124
78Self-Locking Nut M10-Din 985 Cl.80016 316
79Bracket Idler6205 165
80Flat washer B 10.56200 147
81Self-Locking Nut M10 Din 985 Cl.80021 126
82Cog Pulley 280017 125
83Cover6205 325
84V-Belt6205 316
