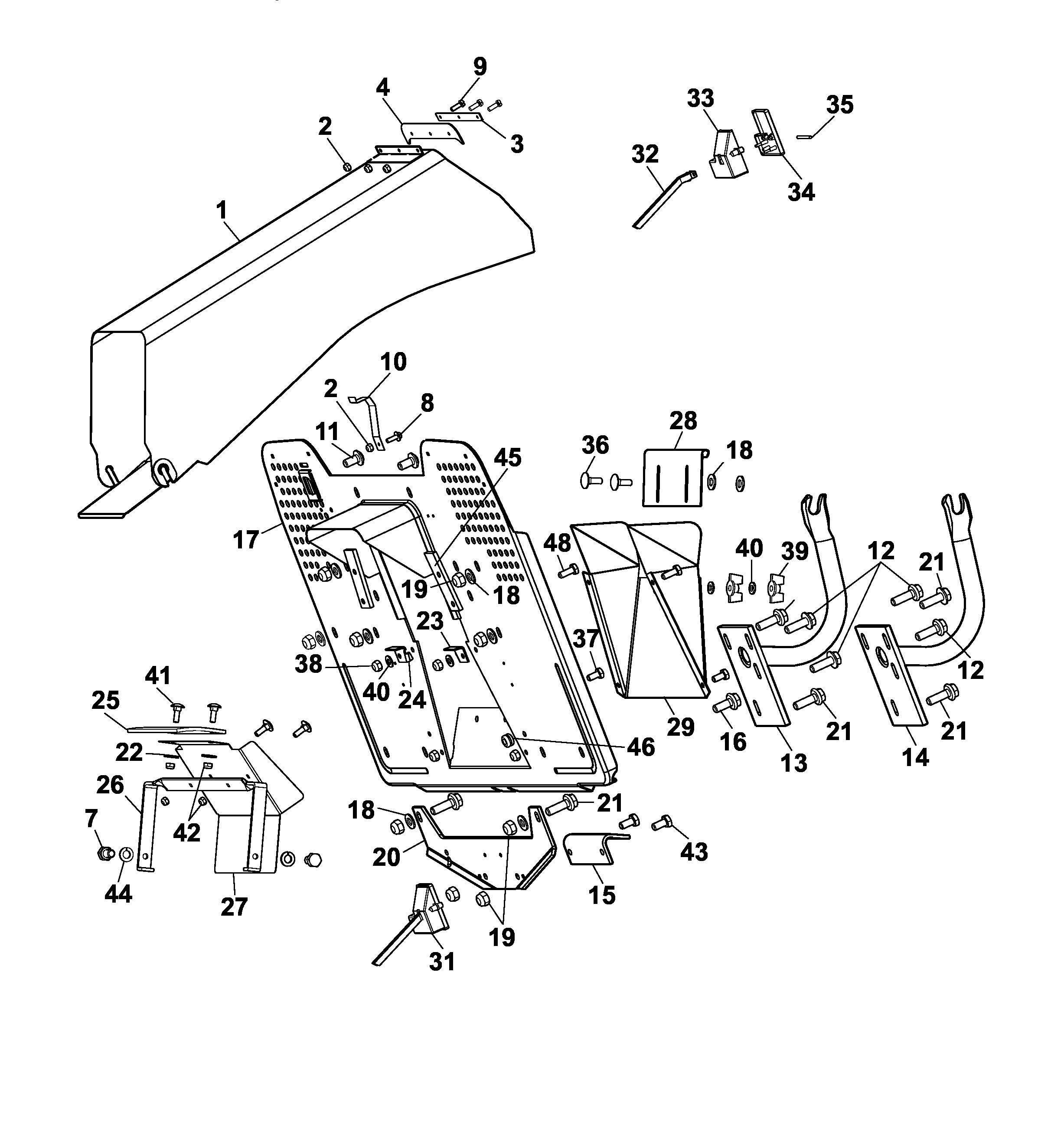

Lista de repuestos para Wolf Ride-on Mowers Chute - collector assembly

pos.	descripción	Número de pieza
1	Tunnel	6200 148
2	Self Locking Nut M 4	0016 309
3	Supporting Sheet Metal	6205 117
4	Rubber Seal	6205 301
7	Hex. Screw M8x12 DIN 933 8.8	6200 149
8	Ecofix Screw M4 X 12 Bn 4825H 4.8	6205 538
9	Head Slotted Screw M4 X 12 Din 84A 8.8	0012 164
10	Switch Cover	6205 331
11	Carriage Bolt M8 X 16 Bn 11252 10.9	6205 539
12	Screw M8 X 25 Verbus Ripp Bn 2797 Ci.100	6205 129
13	Collector Support, Right	6205 519
14	Collector Support, Left	6205 518
15	Tow Hitch	6205 502
16	Hex Screw M8X20-Din 933 8.8	0010 690
17	Collector Plate Assy	6200 017
18	Washer A 8,4 Din 125	0017 123
19	Hex. Nut	0016 312
20	Tow Hitch Support	6205 500
21	Screw	0010 403
22	Flat Washer 5.3 Din 9021 B	0017 287
23	Holder, left	6200 151
24	Holder, right	6200 152
25	Rupper Sheet	6200 153
26	Clip	6205 504
27	Guard-Flywheel	6200 502
28	Adjustable Shield	6200 503
29	Rear Plate Chute	6200 506
31	Overload Switch Assy, Complete	6205 057
32	Overload Switch Actuation Lever	6200 510
33	Upper Housing, Over-Load Switch	6200 338
34	Lower Housing, Over-Load Switch	6200 337
35	Pin-Counterweight	6205 511
36	Screw M6X16 Din 603 6.8	6205 582
37	Screw M6X12 Din 933 8.8	0010 383
38	Nut	0016 311
39	Wingnut	6205 321
40	Washer	0017 121
41	Screw	0013 631
42	Hex. Nut	0016 310
43	Hex Screw M8 X 20 Din 933 8.8	0010 402
44	Washer Spring	0017 909
45	Reinforcing	6205 535
46	Bush	6200 164
48	Screw	0010 400
