> Ride-on Mowers > Trac > OHV 6 > Trac OHV 6 > Body assembly - Fender seat

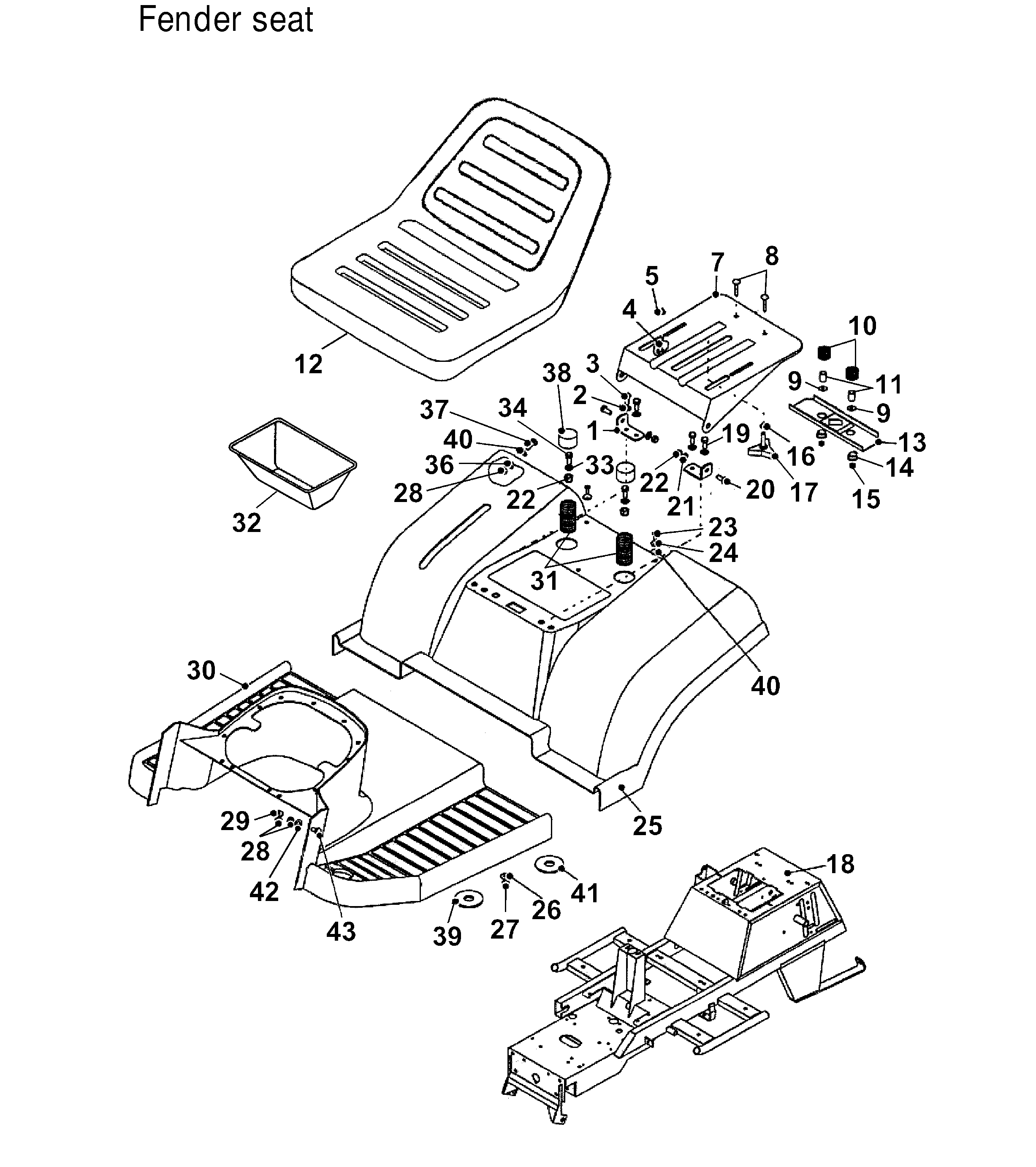

Lista de repuestos para Wolf Ride-on Mowers Body assembly - Fender seat




Lista de repuestos


pos.descripciónNúmero de pieza
1Supporting Angle6205 473
2Washer Spring0017 909
3Hex Screw M8X25-Din 933 8.80010 125
4Hex Screw M8X20-Din 933 8.80010 690
5Distance Disc6200 126
7Seat Support6205 472
8Screw0013 641
9Flat Washer 6.6 Zinc6205 567
10Spring6205 422
11Distance Bush Slitted6205 164
12Seat K3 5059001196200 347
13Bracket6205 471
14Bush6205 150
15Nut0016 311
16Spring washer 8 DIN 137 A0017 811
17Adj.Knob 285 5/16"18Ngx3/4Lg6205 124
18Chasis Frame6205 010
19Hex Screw M8X30 Din 933 8.80010 399
20Screw6205 119
21Washer A 8,4 Din 1250017 123
22Hex. Nut0016 312
23Carr. Bolt M5X20-Din 7991A46205 587
24Finishing Washer 5.3 Sn 2139126205 133
25Wheel Cover K3 2000570776205 352
26Washer 10,5-Din 125A0017 124
27Self-Locking Nut M10-Din 985 Cl.80016 316
28Hex. Nut0016 310
29Flat Washer 5.3 Din 9021 B0017 287
30Footrest Assy - Black6205 019
31Compression Spring6205 420
32Battery Box6200 320
33Flat washer 8.4 DIN 9021 B6205 568
34Hex Screw M8 X 20 Din 933 8.80010 402
36Flat Washer 5.3 Din 9021 B0017 287
37Screw0013 631
38Cap Black6205 307
39Rubber Washer 10,56205 329
40Rubber Washer 5,36205 327
41Rubber Washer 11,56205 330
42Washer0017 120
43Screw0012 955
