> Roth / TORO > Ride-On Mowers > Traktor > 13-32 XLE > 390/71209 > 220010001 > Starter Assy. Engine B&S Model 28M707-1125-E1

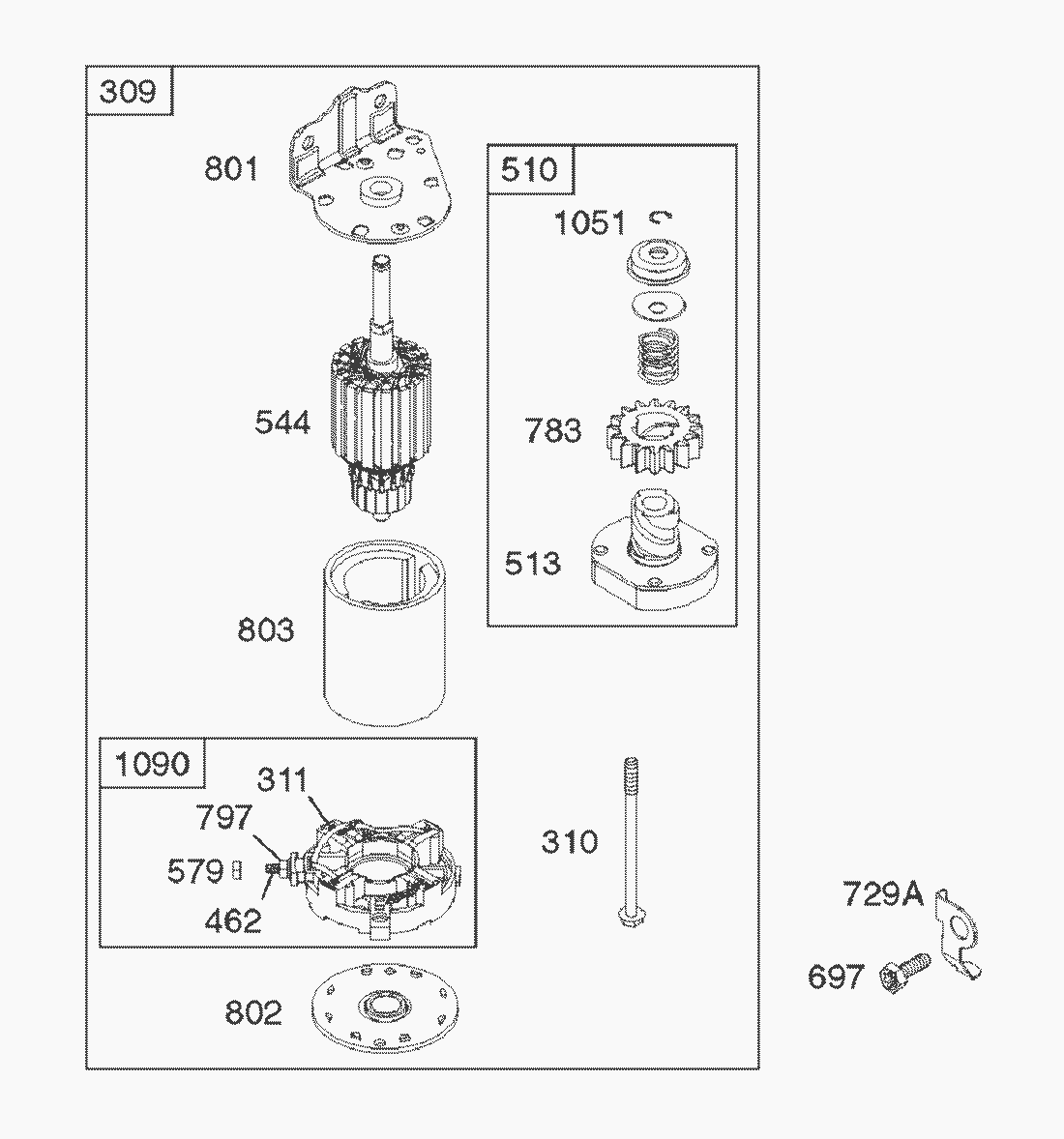

Lista de repuestos para Toro Roth / TORO Starter Assy. Engine B&S Model 28M707-1125-E1




Lista de repuestos


pos.descripciónNúmero de pieza
309Motor-Starter693551
310Bolt (Starter Motor)690323
311Brush Set497608
462Washer (Brush Retainer)691261
510Drive-Starter693699
513Drive Clutch692024
544Armature-Starter692034
579Nut (Brush Retainer)691029
697Screw (Starter Motor Mounting)690372
729Clip-Wire691224
783Starter-Pinion (Steel)693713
797Nut (Starter Terminal)693167
801Cap-Drive691283
802Cap-End691286
803Housing-Starter693757
1051Ring-Retaining691265
1090Retainer-Brush691293
