> Roth / TORO > Ride-On Mowers > Traktor > 13-32 XLE > 390/71209 > 220010001 >

Lista de repuestos para Toro Roth / TORO




pos.descripciónNúmero de pieza
100-6202

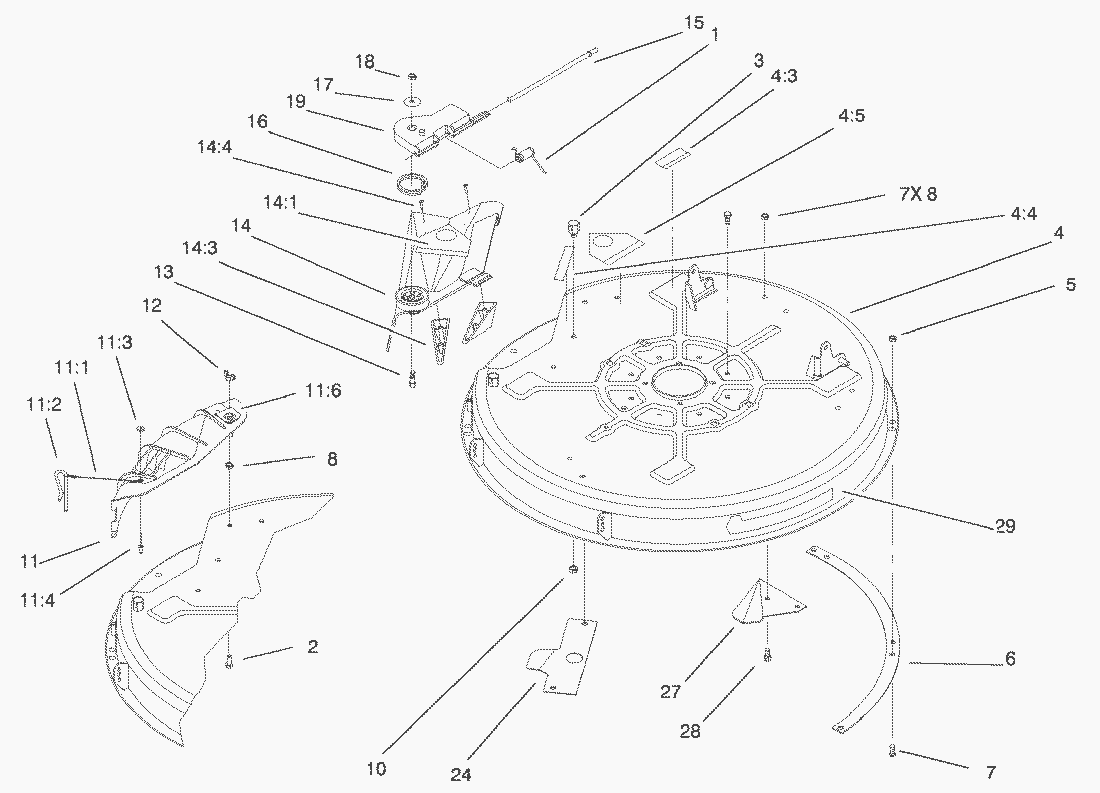

Lista de repuestos


pos.descripciónNúmero de pieza
1Spring-Torsion92-2493
2Capscrew322-6
3Post-Rear Pivot28-7350
4Deck Assembly (Only On: 71201)(Incl. Ref.95-7483
43Decal-Warning (Model No. 71200 Only)93-6674
44Decal-Deflector Danger (Model No. 71200 Only)93-7009
45Decal-Danger (Model No. 71200 Only)93-7010
5MUTTER3296-29
6Ring-Deck (Only On: 71201)80-4490-03
7Capscrew322-3
8MUTTER3296-29
10Nut-Lock3296-59
11Assy.-Cover, Discharge (Incl. Ref.82-6150
111Lanyard28-8070
112Pin-Chute, Locking28-8130
113Washer3256-49
114Rivet-Pop3290-282
116Brace-Cover (Only On: 71201)83-7010-03
12Nut-Wing32103-2
13Bolt-Shoulder92-8916
14Deflector Ass y (Incl. Ref.93-7694
141Decal-Danger (Model No. 71200 Only)93-7010
143Kicker-C.E.(Model No. 71200 Only)93-7696
144Screw-Pan Hd.93-0231
15Rod-Deflector Hinge88-6150
16Spring-Torsion88-6160
17Washer-Fender3256-58
18MUTTER3296-42
19Hinge-Deflector Danger88-4540
24Ramp-Deflector92-2494-03
27Kicker (Only On: 71201)80-2630-03
28Capscrew322-3
