> Roth / TORO > Ride-On Mowers > Traktor > 13-32 XLE > 390/71209 > 220010001 > Blower Housing Assy. Engine B&S Model 28M707-1125-E1

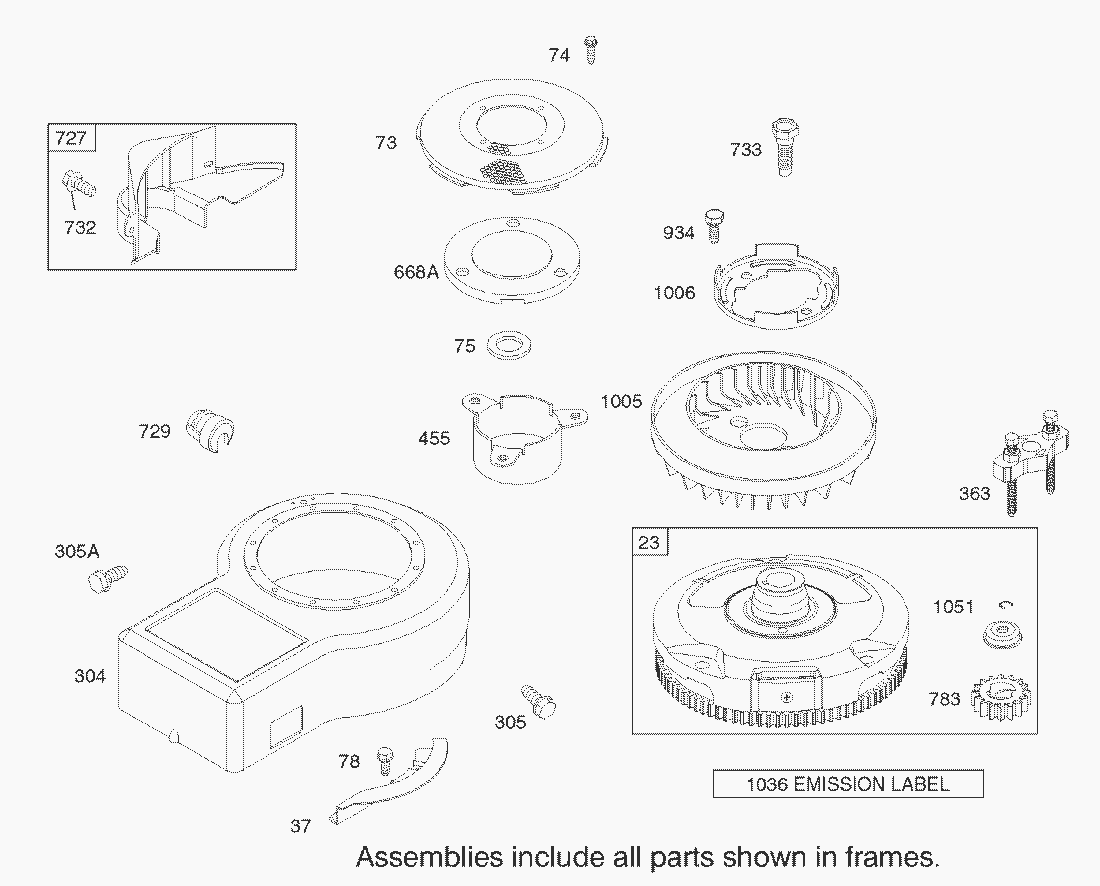

Lista de repuestos para Toro Roth / TORO Blower Housing Assy. Engine B&S Model 28M707-1125-E1




Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel693557
37Guard-Flywheel690456
73Screen-Rotating690492
74Screw (Rotating Screen)691655
75Washer (Flywheel)690582
78Screw (Muffler Deflector)690661
304Housing-Blower690847
305Screw-Hex. Head690960
305Screw-SternantriebêHex.692127
363Puller-Flywheel(Optional Accessory)19203
455Cup-Flywheel691173
668Spacer691323
727Cover-Starter490324
729Clip-Wire690596
732Screw (Dipstick Tube)691002
733Screw (Crankshaft Extension)691658
783Starter-Pinion (Steel)693713
934Screw (Starter Motor Mounting)690372
1005Fan-Flywheel695056
1006Retainer-Fan690452
1036Label-Emission696770
1051Ring-Retaining691265
