> Roth / TORO > Ride-On Mowers > Traktor > 13-32 XLE > 390/71209 > 220010001 > Carburetor Overhaul Kit Assy. Engine B&S Model 28M707-1125-E1

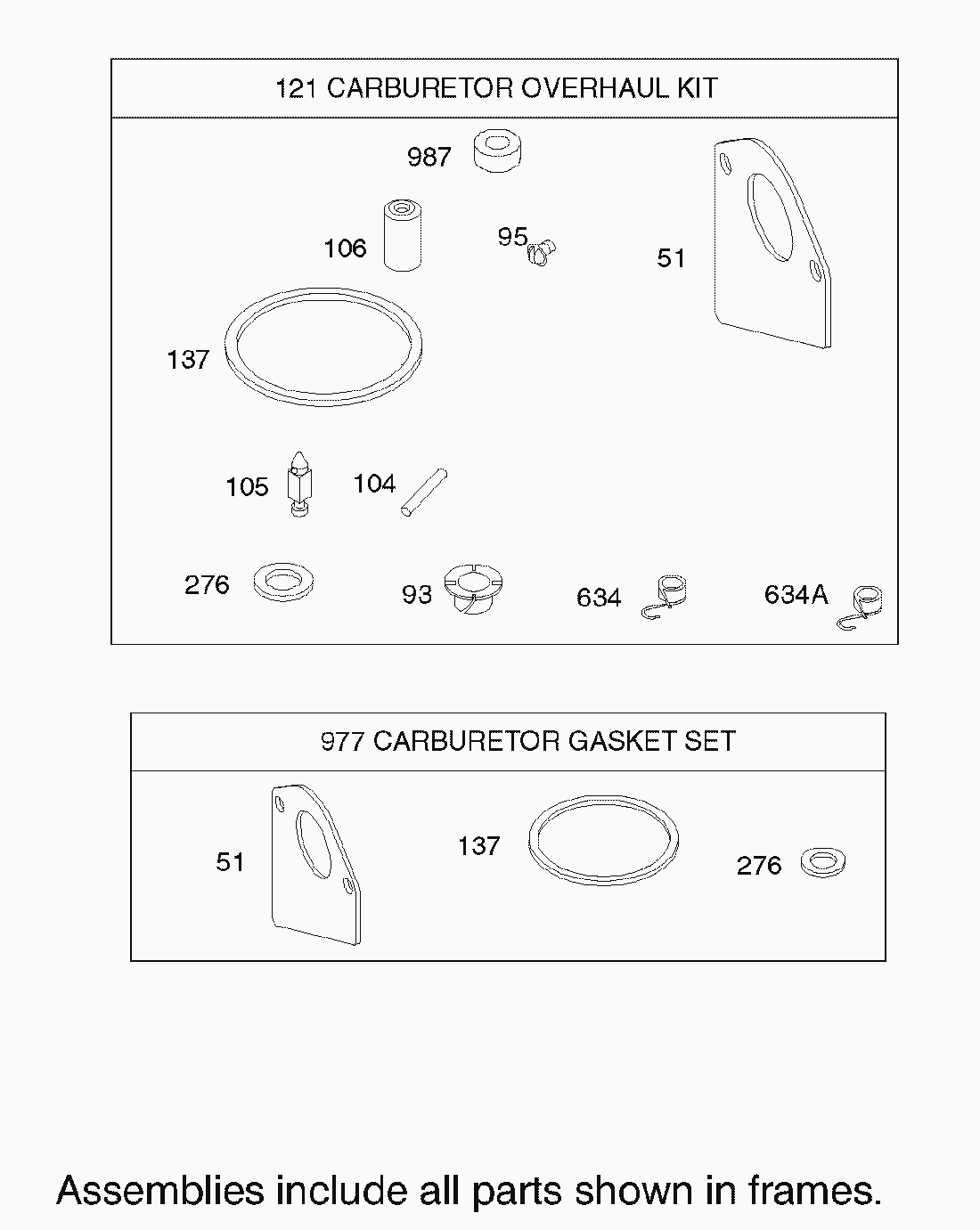

Lista de repuestos para Toro Roth / TORO Carburetor Overhaul Kit Assy. Engine B&S Model 28M707-1125-E1




Lista de repuestos


pos.descripciónNúmero de pieza
51Intake Gasket692284
93Bushing-Throttle Shaft690602
95Screw (Throttle Valve)691636
104Pin-Float Hinge690525
105Valve Assy.-Inlet Needle231855
106Seat-Inlet690577
121Carburetor Kit499220
127Plug-Welch695005
137Gasket-Float Bowl281165
276Sealing Washer692255
634Spring/Seal Assembly690801
634Spring/Seal Assembly690802
977Carburetor Gasket Kit494385
987Seal-Throttle Shaft691326
