volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
495/26620 BG
>
1000001
>

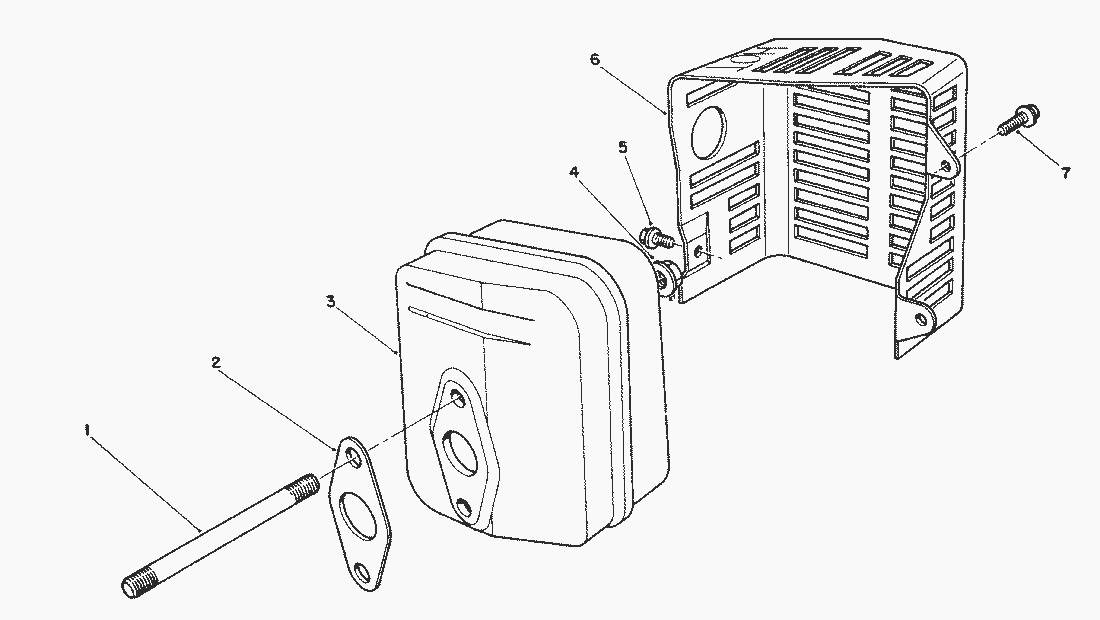

Muffler Assy. (Engine No. VM140)
Lista de repuestos para Toro Roth / TORO Muffler Assy. (Engine No. VM140)
pos.
descripción
Número de pieza
56-6730
pos.
descripción
Número de pieza
1
Stud-Muffler
81-4380
2
Gasket-Muffler
81-4390
3
Muffler
81-4400
4
Nut
50-0530
5
Screw
81-4420
6
Cover-Muffler
81-4430
7
SCHRAUBE
81-1170
