> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 9900001 > Liquid Cooled GAS Engine Assy. (Cont.)

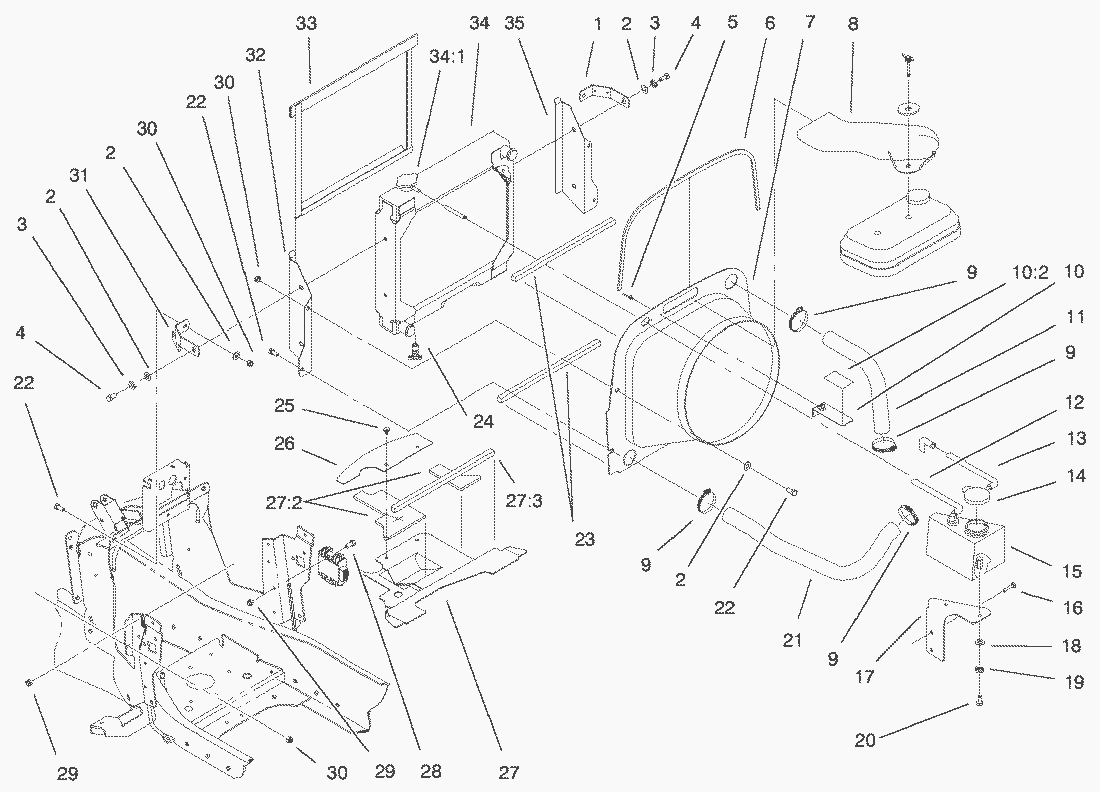

Lista de repuestos para Toro Roth / TORO Liquid Cooled GAS Engine Assy. (Cont.)




pos.descripciónNúmero de pieza
Trim-Loc98-7216
Lista de repuestos


pos.descripciónNúmero de pieza
2Washer3256-23
3Lockwasher3253-4
4Hex Hd. Capscrew322-2
5Rivet-Pop3269-13
7Shroud-Fan94-7911
8Duct-Air94-7891
9Clamp-Hose (Only On: 72043, 72103, 72063, 72083)2412-34
10Bracket ASM98-5024
102Decal-Warning95-4143
11Hose-Radiator95-4268
12Hose-Gas Line Long62-2470
13Hose-Overflow95-4227
14Cap-Coolant95-4191
15Bottle-Overflow95-4017
16Carriage Bolt3229-1
17Bracket-Bottle95-4080-03
18Washer3256-22
19Lockwasher3253-3
20SCHRAUBE321-3
21Hose-Radiator95-4269
22Hex Hd. Capscrew322-5
23Foam-Radiator95-4161
24Valve-Drain95-4142
25Rivet-Plastic95-4237
26Baffle-Tower Rear95-4170
27Baffle-Tower ASM99-8052
272Foam-Baffle98-5026
273Foam-Radiator95-4161
28Screw-Hex Hd.321-8
29Locknut3296-8
30MUTTER3296-29
31Bracket-Relay98-3590-03
32Support-Radiator RH94-7645-03
33Screen-Chaff98-1643-03
34Radiator94-7601
341Cap-Radiator93-5957
35Support-Radiator LH94-7646-03
