> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 9900001 > 20 HP Electrical Assy.

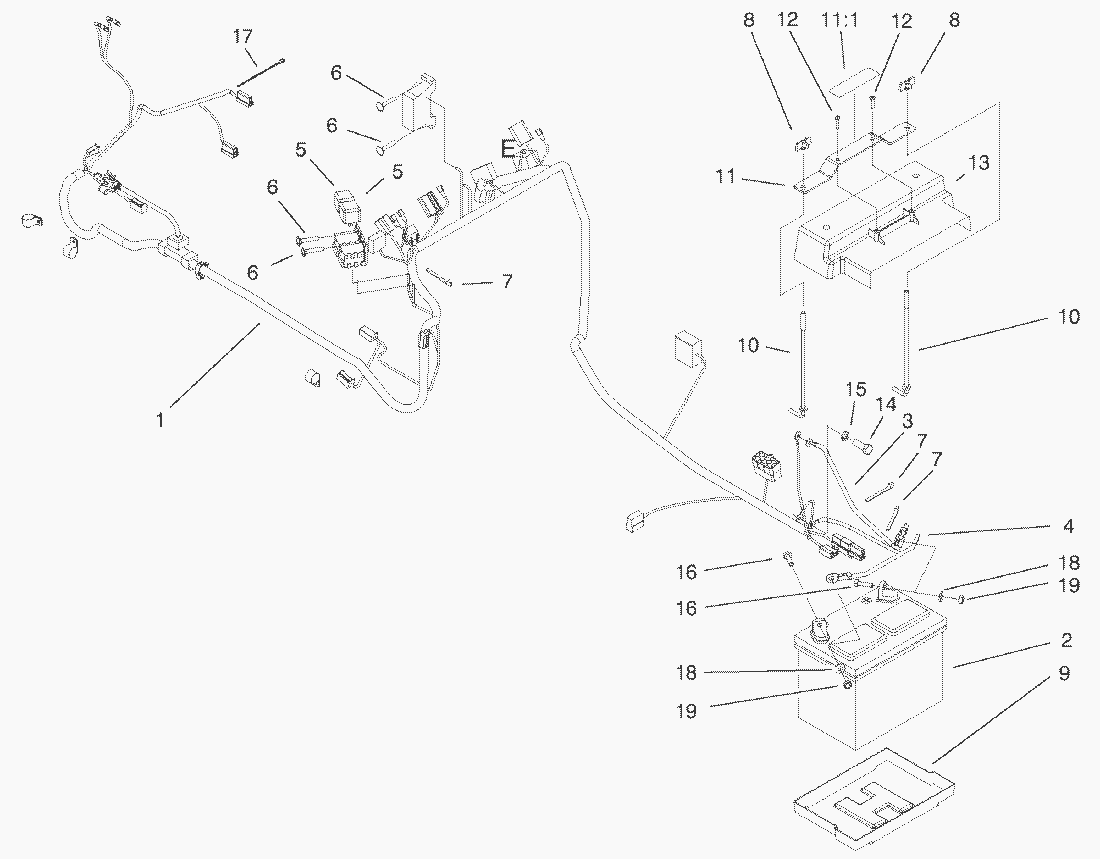

Lista de repuestos para Toro Roth / TORO 20 HP Electrical Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Harness-Main99-3724
2Battery (Only On: 72103)94-1867
3Cable-Battery95-7855
4Cable-Battery98-5011
5Relay (Only On: 73470)98-7249
6SCHRAUBE12-5450
7Tie Strap614249
8Nut-Wing32103-22
9Tray-Battery106948
10Hold Down-Battery (Only On: 73470)95-4042
11Strap ASM (Only On: 73470)98-5056
111Decal-Hot, Model 3859093-1265
12Screw94-4496
13Shield-Battery (Only On: 73470)95-4044
13Shield-Battery (Only On: 73546)95-4092
14Hex Screw323-4
15Washer-Lock3253-21
16Capscrew321-5
17Tie-Cable (Only On: 73470)98-5072
18Washer3256-22
19MUTTER3296-42
99Fuse-25 Amp.109102
99Fuse-10A218-578
99Fuse-30 Ampere (Only On: 73471)Nn10277
