> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 9900001 > Governor Assy.

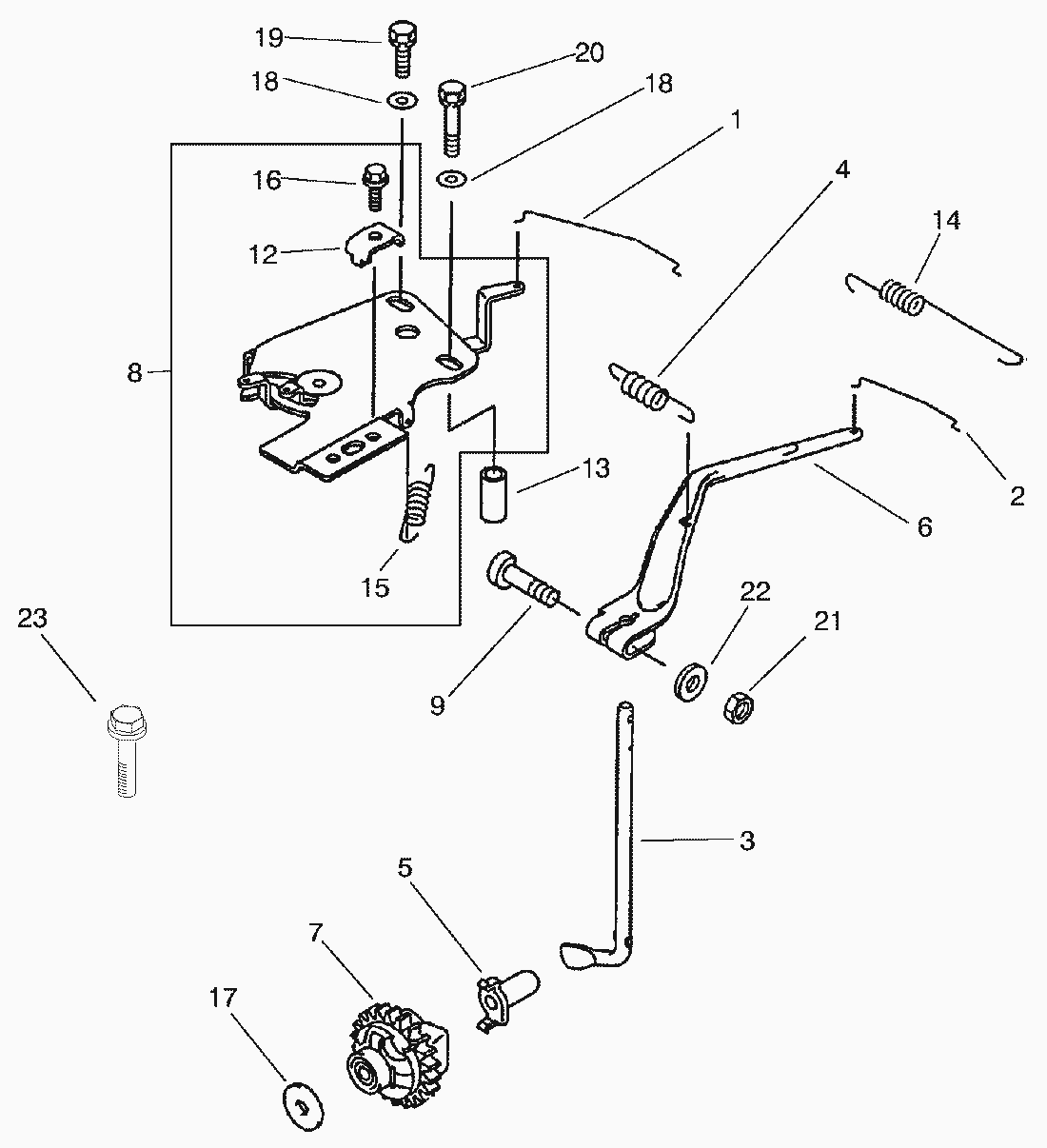

Lista de repuestos para Toro Roth / TORO Governor Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Link-Choke95-9840
2Link95-9841
3Arm-Pivot98-7362
4Spring-Governor98-7363
5SleeveKw10140
6Arm-Governor98-7364
7Governor ASM98-7365
8Panel-Comp-Control95-9846
9Bolt93-8606
12Clamp95-9849
13Collar95-9850
14Spring95-9851
15Spring95-9852
16Bolt (Only On: 73545)95-9853
16Screw-Sternantrieb (Only On: 73546)98-7374
17Washer93-8612
18Washer95-9854
19Bolt-Upset-Ws95-9855
20Bolt-Upset-Ws95-9856
21Nut-HexKw10101
22Washer93-8645
23Bolt-FlangedKw10028
