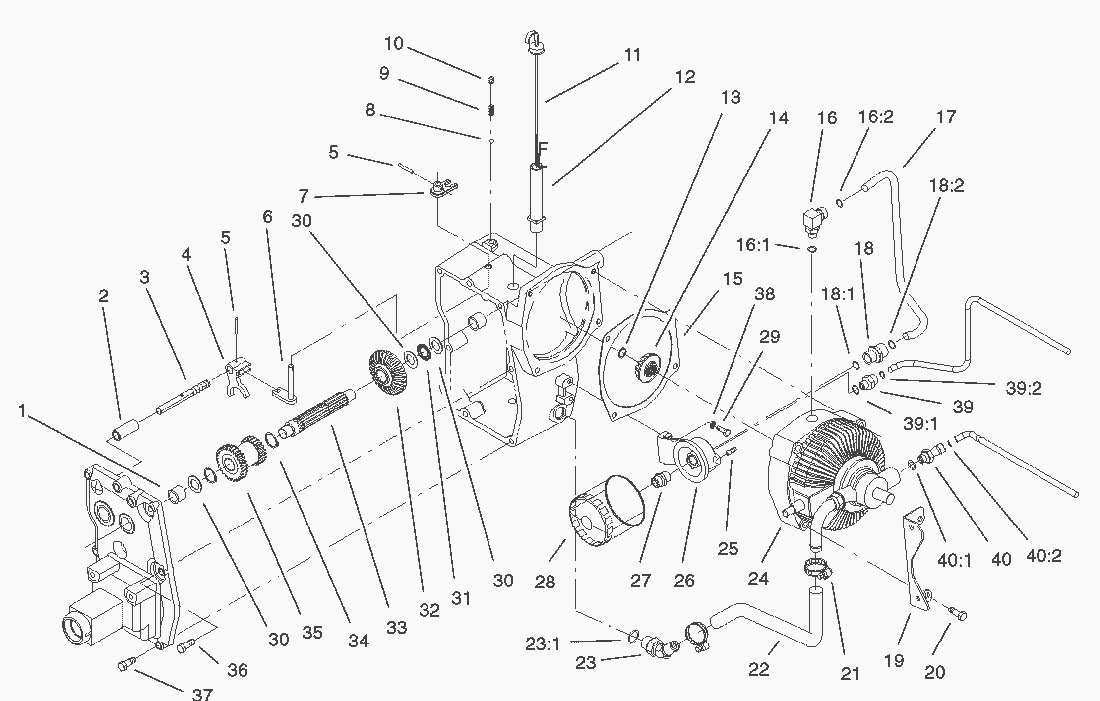

Hydro Transaxle Assy. (Cont.)
Lista de repuestos para Toro Roth / TORO Hydro Transaxle Assy. (Cont.)
pos.
descripción
Número de pieza
1
Bearing-Needle
1529
2
Tube-Shifter Rail
94-2014
3
Rail-Shift
94-2054
4
Fork-Hi Lo Shift
94-2015
5
Pin-Spirol
933154
6
Arm-Shifter
94-2143
7
Arm-Hi Lo
94-7510
8
Ball
3517
9
Spring-Shift
94-2024
10
Screw-Set
3247-2
11
Dipstick
94-7680-03
12
Tube-Dipstick
94-7559
13
Ring-External Retaining
32120-64
14
Pinion-Bevel
94-7565
15
Gasket-Pump & Motor
702062
16
Fitting-Hydraulic
94-7693
161
O-Ring
237-42
162
O-Ring
237-30
17
Tube-Hydraulic
94-7969
18
Fitting-Hydraulic
94-7694
181
O-Ring
237-42
182
O-Ring
237-30
19
Plate-Support Bracket
94-2148-03
20
Bolt
323-13
21
Clamp-Hose
2412-141
22
Hose-Suction
95-4133
23
Fitting-Hose
94-7692
231
O-Ring
237-80
24
Transmission
94-2003
25
Plug-Pipe
99-8551
26
Base-Filter
108323
27
Fitting-Filter
5991
28
Filter-Oil
79-5270
29
Capscrew
321-5
30
Washer-Thrust
1535
31
Bearing-Needle
8571
32
Gear-Bevel
94-7566
33
Shaft-Input
94-2010
34
Ring-Retaining
32151-29
35
Gear-Hi Lo
94-2011
36
Capscrew
323-9
37
Capscrew
323-8
38
Lockwasher
3253-3
39
Fitting-Hydraulic
95-4138
391
O-Ring
237-22
392
O-Ring
237-42
40
Fitting-Hydraulic 45
95-4135
401
O-Ring
237-42
402
O-Ring
237-22
