> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73570 > 220000001 > Electrical 22HP Assy.

Lista de repuestos para Toro Roth / TORO Electrical 22HP Assy.




pos.descripciónNúmero de pieza
Cable-Battery Red (Only On: 73470)95-7854

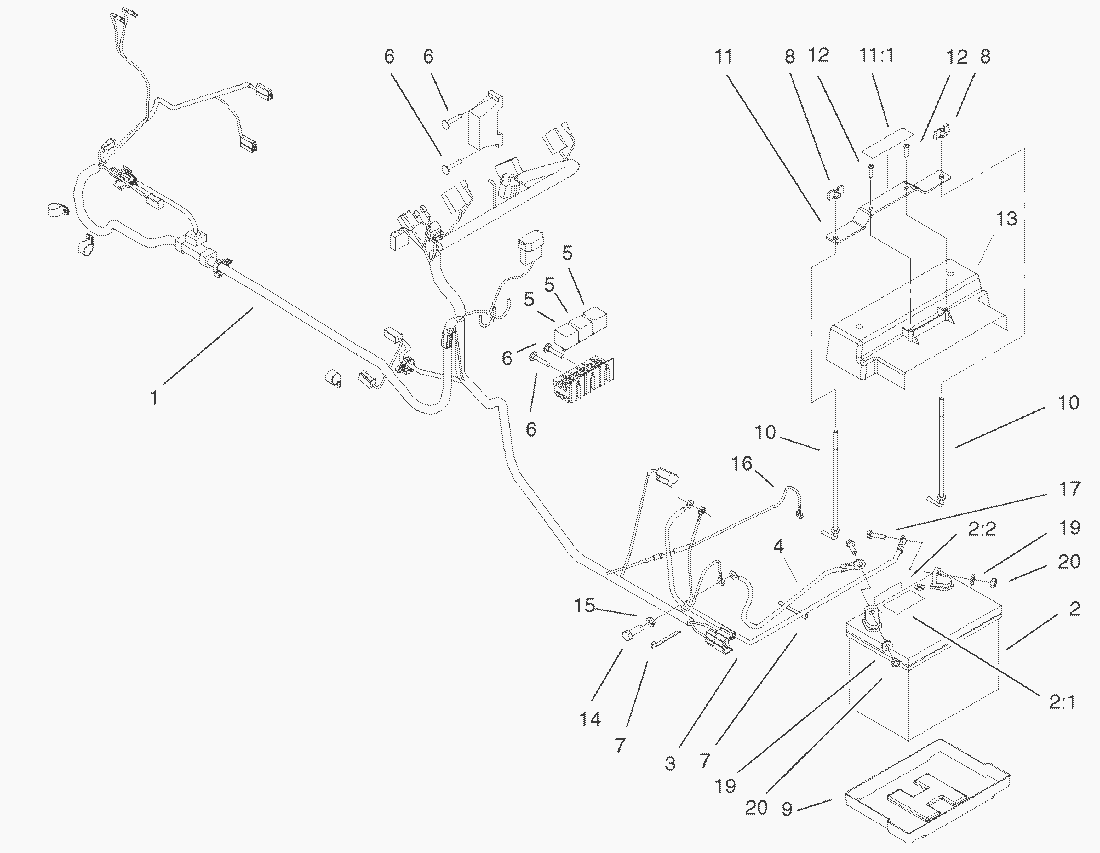

Lista de repuestos


pos.descripciónNúmero de pieza
1Wire Harness-20/22 HP (only on: 73542, 73570)99-3723
2Battery (only on: 73471)104-2492
21Decal-Battery104-4163
22Decal-Battery (only on: 73471)104-5091
4Cable-Battery Black (Only On: 73470)95-7873
5Relay (Only On: 73470)98-7249
6SCHRAUBE12-5450
7Tie Strap614249
8Nut-Wing32103-22
9Tray-Battery106948
10Hold Down-Battery (Only On: 73470)95-4042
11Strap ASM (Only On: 73470)98-5056
111Decal-Hot, Model 3859093-1265
12Screw94-4496
13Shield-Battery (Only On: 73546)95-4092
13Shield-Battery (Only On: 73470)95-4044
14Screw-HHF33104-020
15Lockwasher3253-4
16Wire (Only On: 73470)98-1492
17Capscrew321-5
19Washer3256-22
20MUTTER3296-42
Fuse-30 Amp.NN10277
