> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73570 > 220000001 > Hydro Lift Lower Assy.

Lista de repuestos para Toro Roth / TORO Hydro Lift Lower Assy.

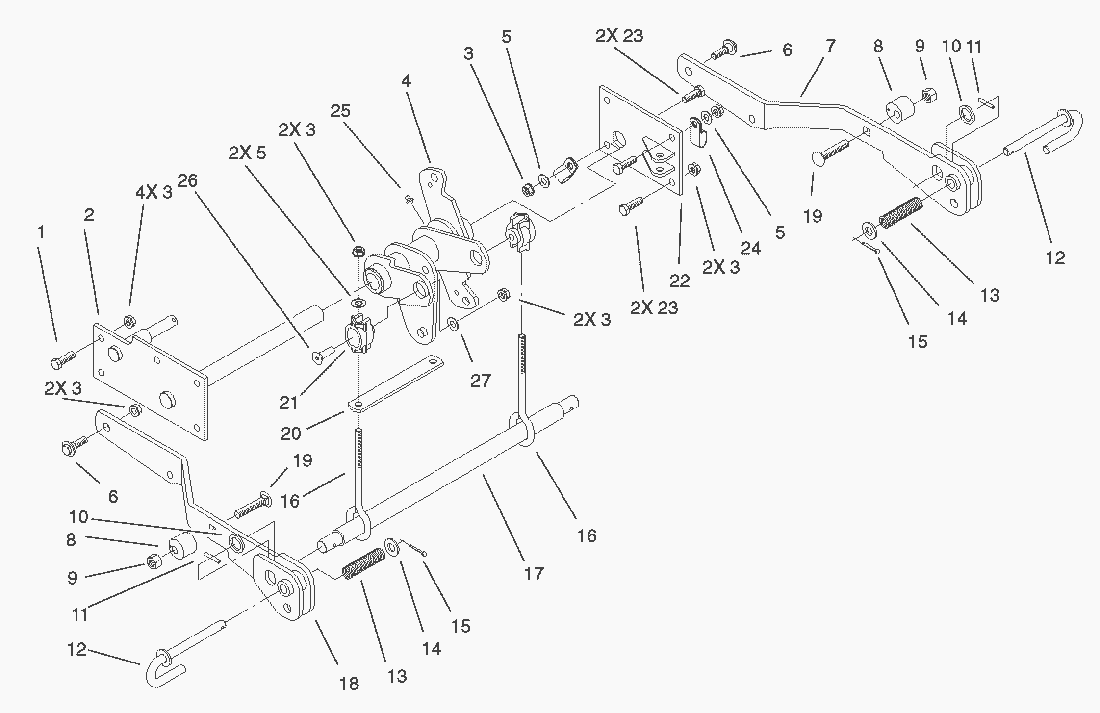

Lista de repuestos


pos.descripciónNúmero de pieza
1Screw-Cap Hex Hd.323-7
2Support-Deck Lift94-2263-03
3Locknut3296-39
4Bellcrank And Bushing ASM99-4430
5Flat Washer3256-24
6Bolt-Shoulder614672
7Lift Arm ASM-LH94-2279-03
8Stop-Lift Adj.94-2411
9Locknut3296-48
10Washer3256-28
11Roll Pin32121-79
12J Pin94-2301
13Spring-Compression95-4256
14Washer3256-26
15Pin-Cotter3272-10
16Rod-Lift104-5079
17Bar-Lift94-2277-03
18Lift Arm ASM-RH94-2278-03
19Screw-CARR3232-5
20Spacer-Strap94-7600-03
21Sleeve-Lift99-2344
22Plate-Support LH94-7578-03
23Screw-HH323-18
24Clamp-Tube (Only On: 73551, 73550)98-1617
25Grease Fitting302-5
26Screw99-8051
27Washer-Flat99-6496
