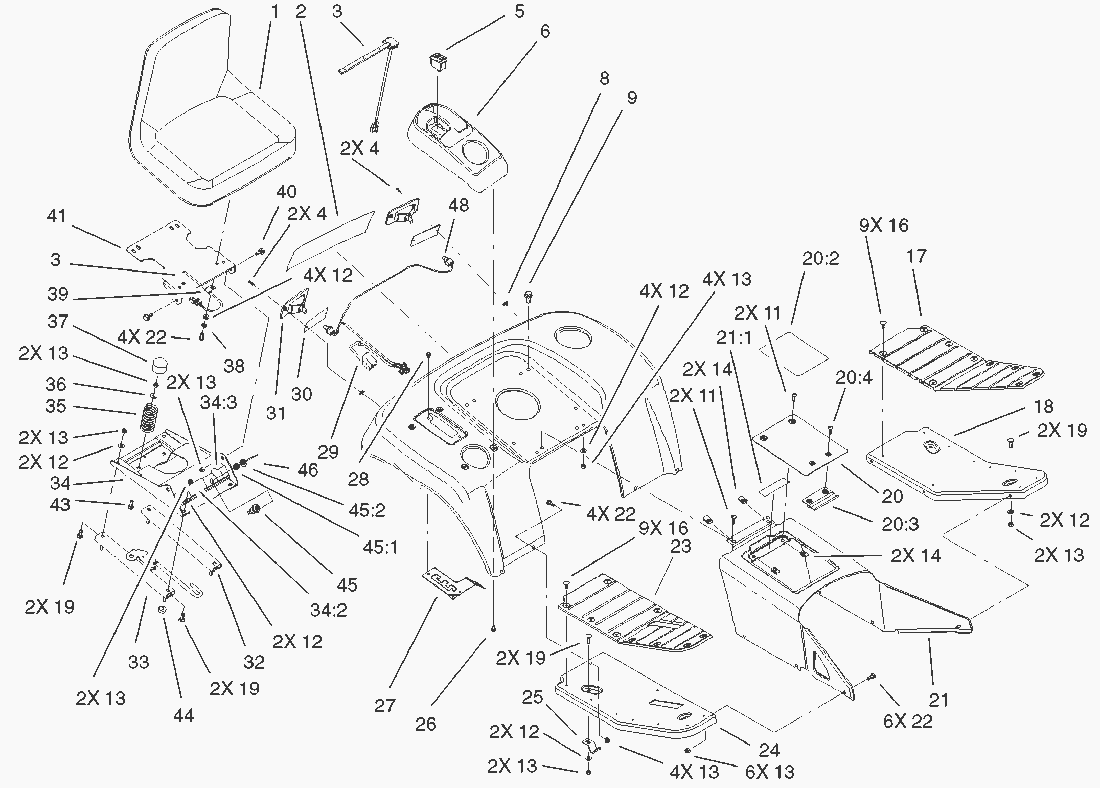

Lista de repuestos para Toro Roth / TORO Fender, Footrest, & Seat Assy. (Cont.)

pos.	descripción	Número de pieza
27	Gate-Hi Lo Shift	98-8711-03
28	Screw Thread Forming	32144-4
29	Harness-Rear (Only On: 73542, 73570)	99-3726
30	Gasket-Tail Light (Only On: 73470)	95-4123
31	Lamp-Taillight (Only On: 73540, 73541)	94-2124
31	Reflector (Only On: 73470)	95-4089
32	Slide-Seat	94-2112
33	Seat Slide-Latch	94-2177
34	Seat Base ASM, Intl Decal (only on: 73570)	104-5074
34	Seat Base ASM (only on: 73471, 73542)	104-2495
342	Decal-Danger (Only On: 72048)	99-2985
342	Decal-Danger Intl (Only On: 72070)	99-2986
343	Decal-Nmir Switch Intl (Only On: 72070)	99-5340
343	Decal-Nmir Switch (Only On: 72048)	99-5339
35	Spring-Compression	94-2106-03
36	Bushing	105503
37	Cap-Seat Spring	95-4242
38	Lockwasher	3253-4
39	Clamp-R	98-2390
40	Bolt-Shoulder	37-8771
41	Mount-Seat	104-4345-03
43	Bolt-Carriage	3230-22
44	Spacer	4-2390
45	Switch-Starter (Incl. Ref.	46-5780
451	Lockwasher	3254-5
452	Hex Nut	218-461
46	Key-Switch	62-7770
48	Light Bulb	109045
