> Roth / TORO > Hand operated > Lawnmower > 2-stroke SP > 237/22036 > 0000001 > Housing Assy.

Lista de repuestos para Toro Roth / TORO Housing Assy.




pos.descripciónNúmero de pieza
12-6679

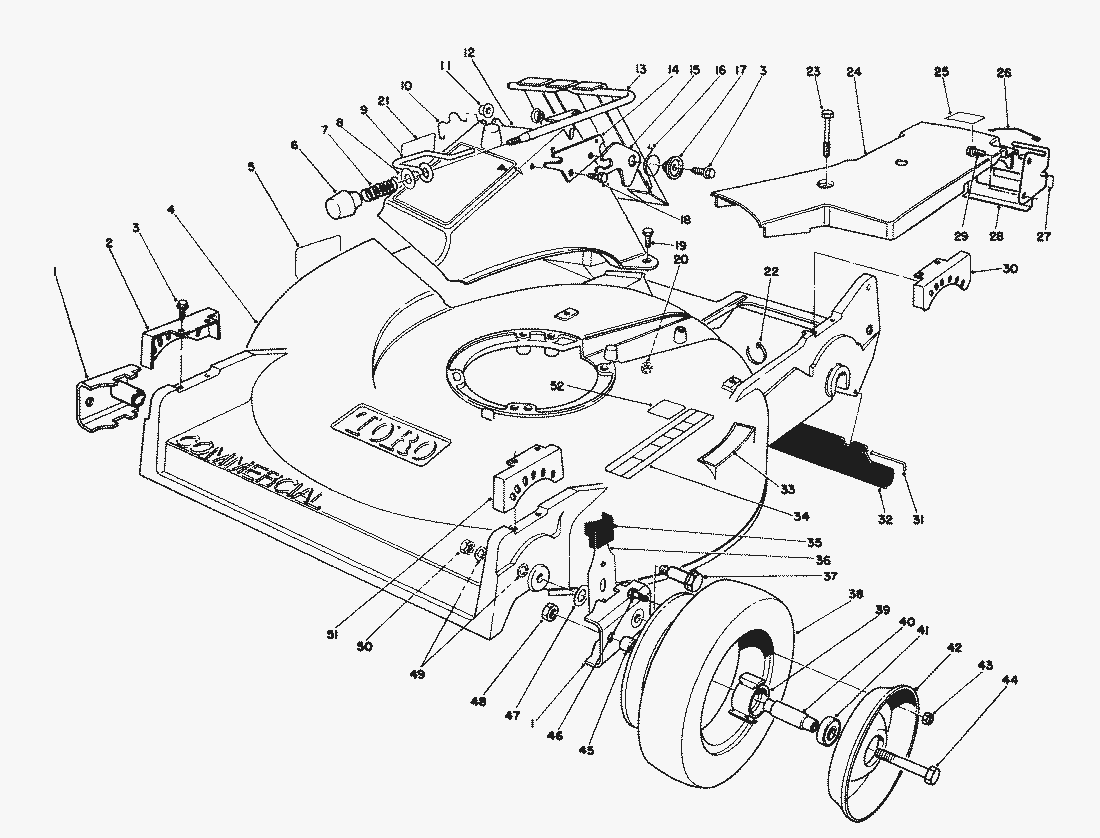

Lista de repuestos


pos.descripciónNúmero de pieza
1Pivot Arm Assembly61-8300
2Quadrant-Front R.H.49-8770
3Screw-Self Tapping49-2040
5Decal-Danger62-3860
6Knob233-37
7Spring-Compression23-0920
8Washer-Flat3256-25
9Latch-Door23-0940
10Retainer-Door33-4830
11Bushing23-0880
12Chute-Discharge36-1350
13Door Handle33-5660
14Latch Plate23-1040
15Latch-Safety42-4010
16Spring-Torsion33-4860
17Latch-Spacer43-4840
18Screw-Cap, Hex Hd.32104-17
19Screw-Cap, Hex Hd.321-7
20MUTTER3296-42
21Decal-Danger62-4060
22Tie Wrap3290-378
23Screw-Special37-7260
24Cover-Belt74-1770
25Label-Grease62-7580
26Retainer-Cable46-7030
27Decal-Traction Drive74-1970
28Bracket-Traction Adj.74-1740
29Self Tapping Screw32144-70
30Quadrant-Rear L.H.49-8740
Quadrant-Rear R.H.49-8750
