Roth / TORO
>
Hand operated
>
Lawnmower
>
2-stroke SP
>
237/22036
>
0000001
>

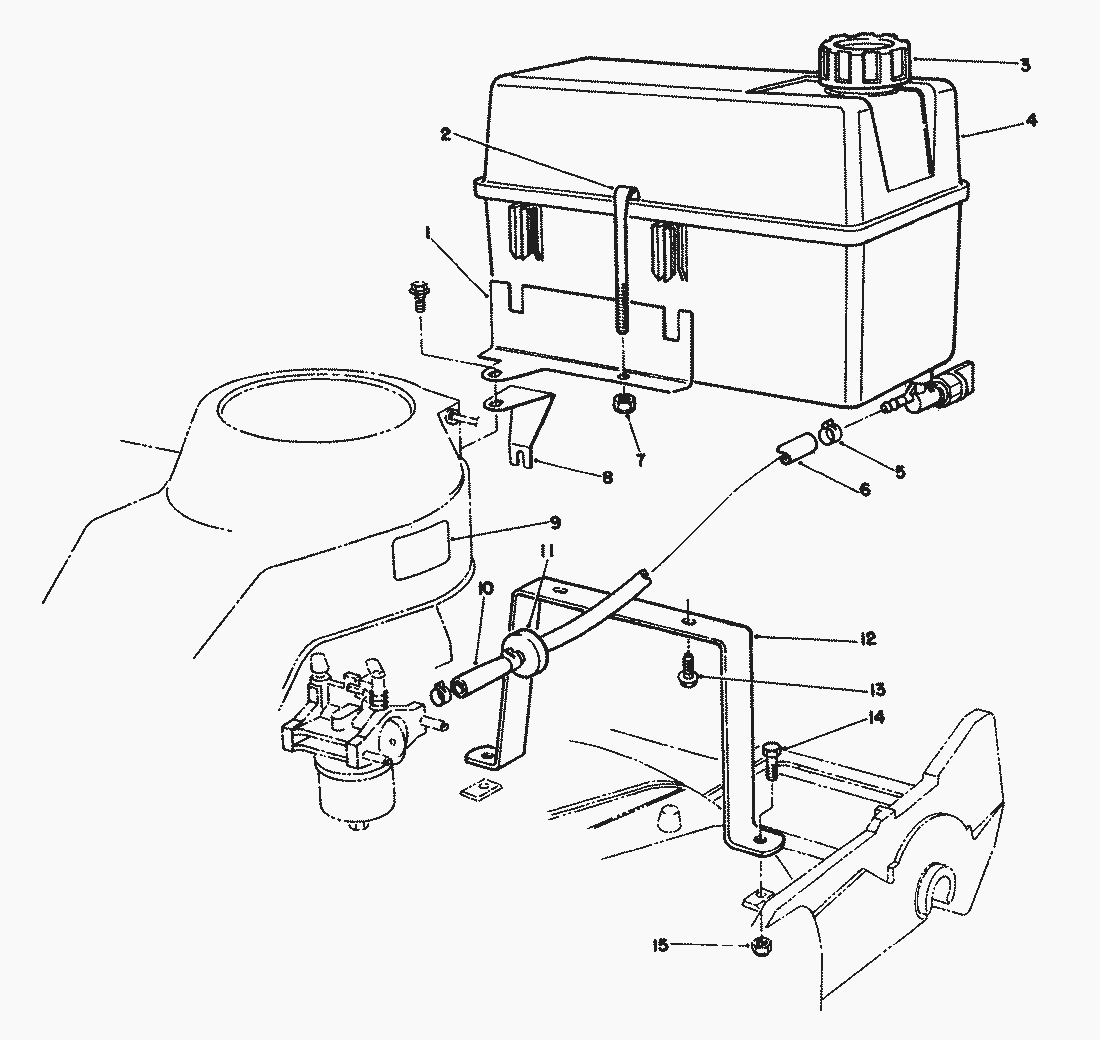

Fuel Tank Assy.
Lista de repuestos para Toro Roth / TORO Fuel Tank Assy.
pos.
descripción
Número de pieza
1
Bracket-Tank
74-2110
2
Retainer-Tank, Fuel
77-2840
3
TANKDECKEL
55-3575
4
Tank-Gas
71-9010
5
SCHLAUCHKLEMME
2412-95
6
Fuel Line
51-3214
7
MUTTER
3296-42
8
Support-Bracket
77-0520
9
Decal-Fuel
62-7600
10
Line-Fuel
51-3211
11
BENZINVORFILTER
56-6360
12
Mount-Tank, Bottom
74-2000
13
Screw-Handle
46-8091
14
Hex Hd. Capscrew
322-5
15
MUTTER
3296-29
