Bag Assy. No. 11-5609

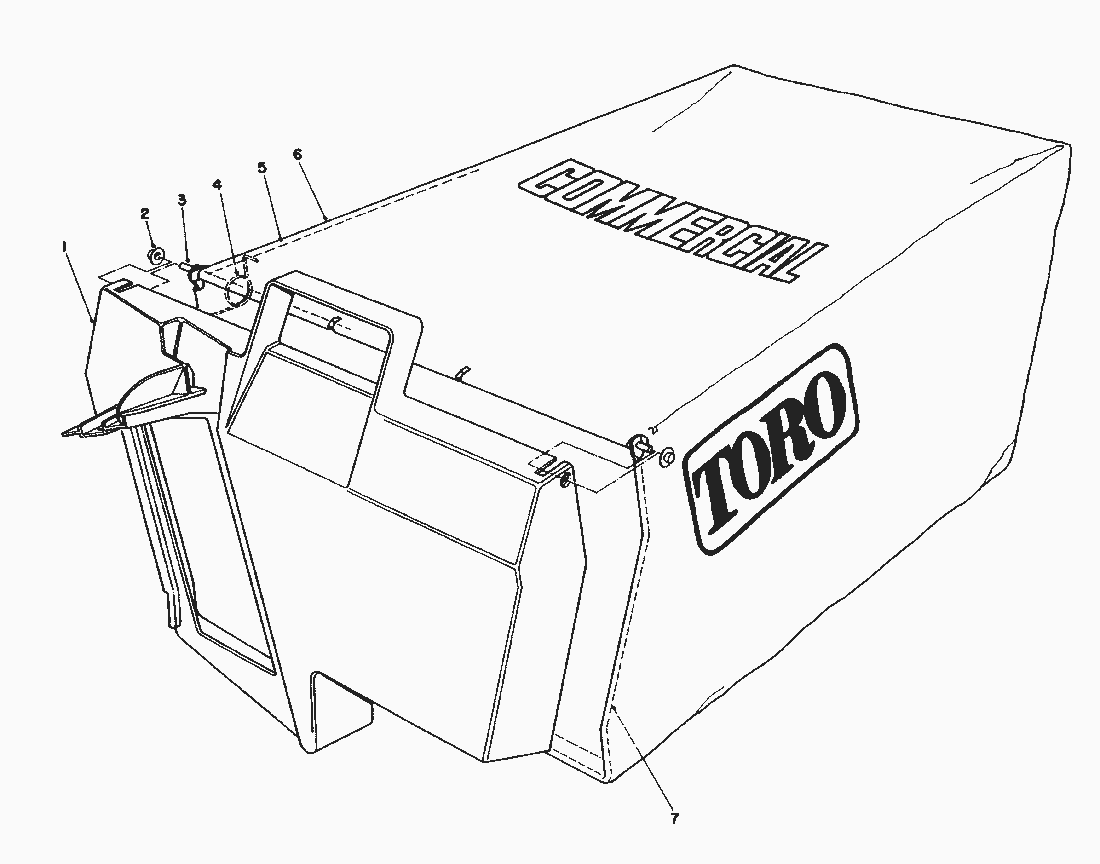

Lista de repuestos para Toro Roth / TORO Bag Assy. No. 11-5609
pos.
descripción
Número de pieza
1
Door-Grass Bag
48-2840
2
Push Nut-Washer Cap
3290-422
3
Hinge-Bag Door
33-4820
4
Spring
36-6910
5
Frame-Bag Upper
42-4030
6
Bag-Grass
8-2759
7
Frame-Bag
42-4020
