> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 496/26625 BG > 1000001 > Handle Assy.

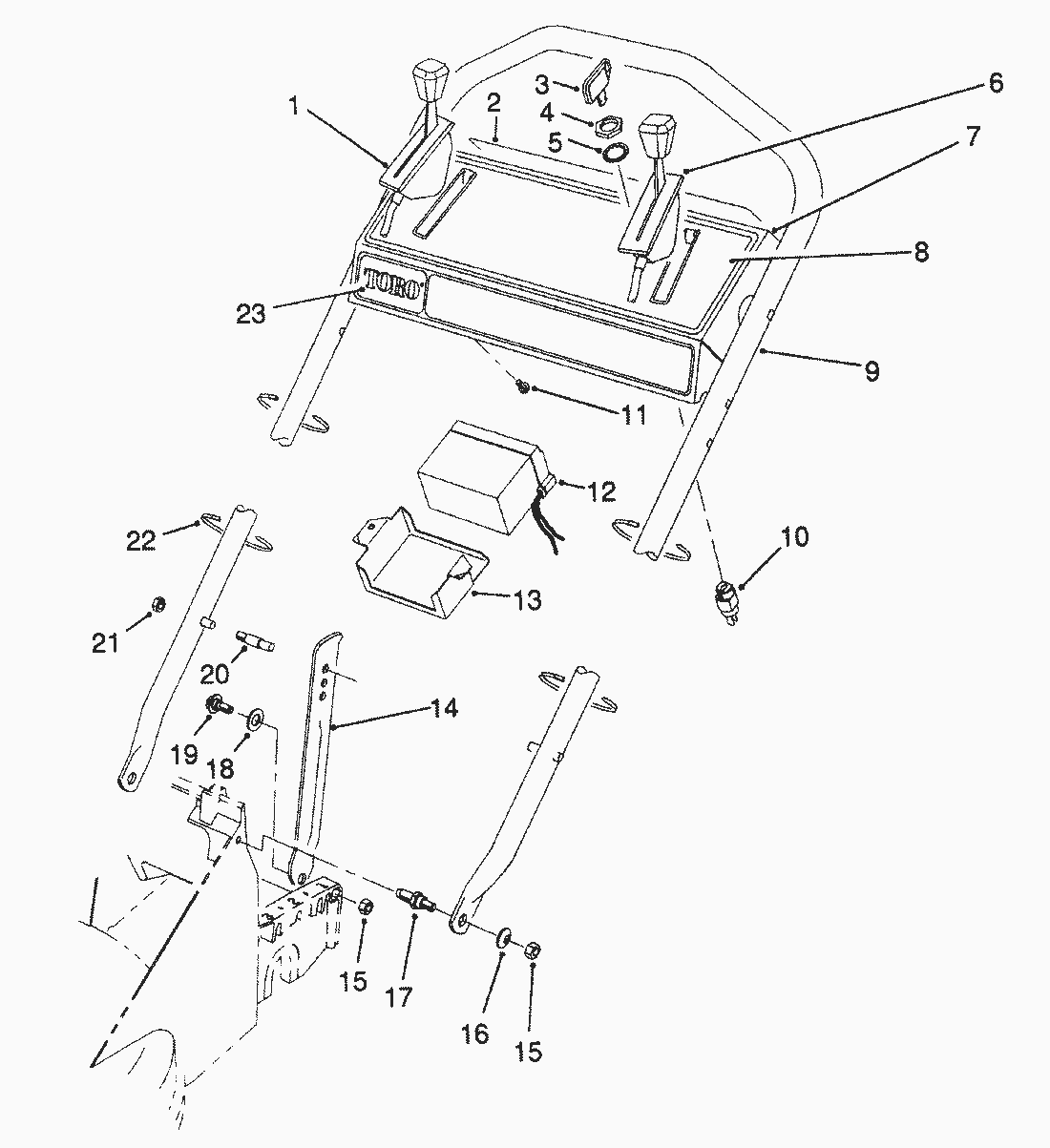

Lista de repuestos para Toro Roth / TORO Handle Assy.




pos.descripciónNúmero de pieza
76-2710
66-0230
Lista de repuestos


pos.descripciónNúmero de pieza
2Decal-Danger66-1790
Decal-Danger (Model 26620BG Only)72-8030
3Key-Ignition63-8360
4Hex Nut218-461
5Lockwasher3254-5
7Panel-Control (Incl. Ref.13-5859
8Decal-Instruction66-0280
9Handle66-0320
10Switch-Starter (Incl. Ref.46-5780
11Self Tapping Screw32104-76
12Battery55-7520
13Retainer-Battery55-8180
14Latch-Handle65-5730
15MUTTER3296-29
16Washer3256-23
17Screw-Shoulder Stud66-0450
18Washer-Nylon256-313
19Bolt-Shoulder5-2490
20Pin-Handle49-2750
21Nut-Lock3296-47
22Tie Wrap3290-378
23Decal-TORO65-5650
Wire Harness49-8312
Charger-Battery (220V)22-4710
