> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 496/26625 BG > 1000001 > Engine Assy.

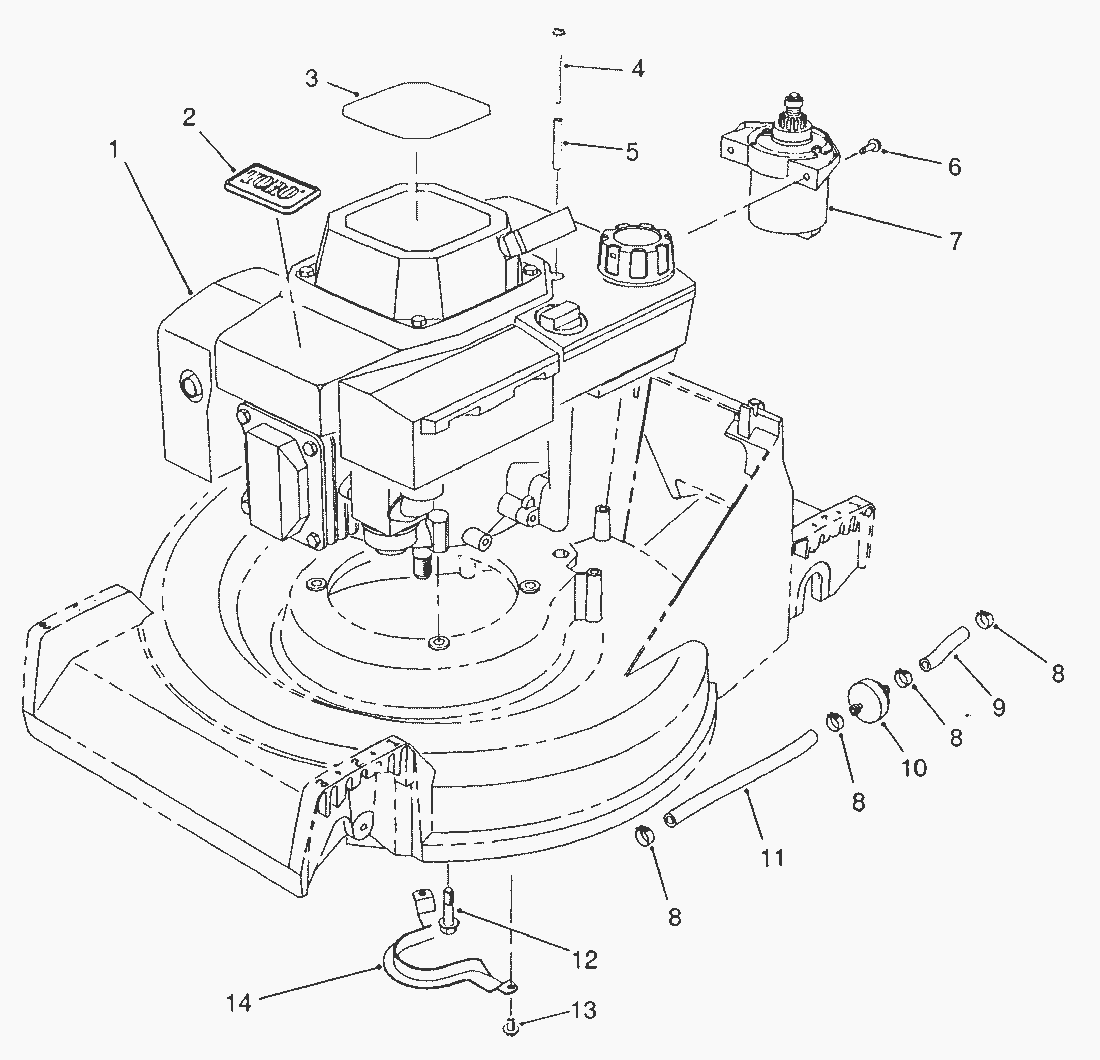

Lista de repuestos para Toro Roth / TORO Engine Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Engine-OHV KE72-4142
2TORO SCHILD46-8290
3Decal-Recoil57-3120
Decal-Recoil (Model 26620BG Only)55-8070
4Screw-Thread Forming56-6610
5Spacer-Tubular57-3830
6Screw, M856-6380
7Starter Motor Assembly53-4500
8SCHLAUCHKLEMME2412-95
9Line-Fuel51-3211
10BENZINVORFILTER56-6360
11Fuel Line51-3214
12Screw-Cap Hex Hd.11-0590
13Self Tapping Screw32144-70
14Guide-Belt66-0570
Tube-Oil Drain75-9850
Wrench-Oil Drain66-1970
Wrench-Spark Plug46-9620
