Roth / TORO
>
Ride-On Mowers
>
Traktor
>
244-5
>
308/72060
>
3900001
>
Dash Assy.

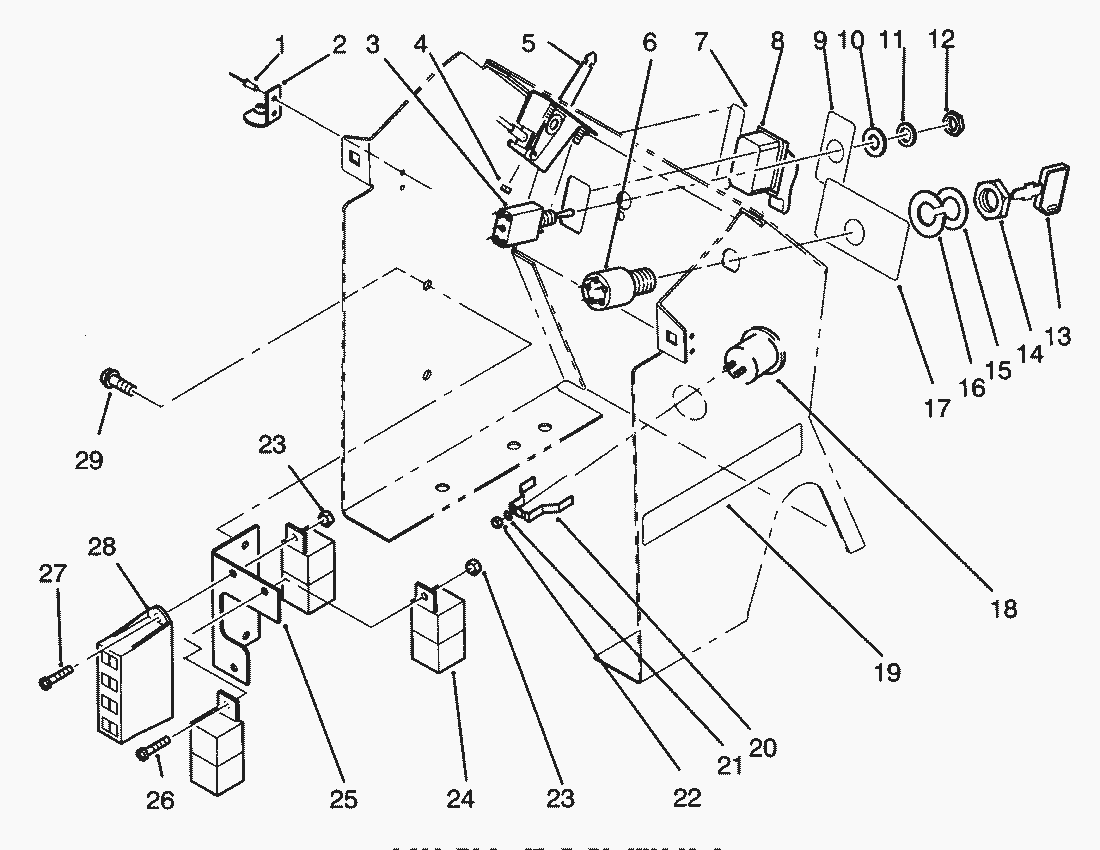

Lista de repuestos para Toro Roth / TORO Dash Assy.
pos.
descripción
Número de pieza
1
Rivet-Pop
117431
2
Keeper-Latch
117343
3
Switch-Light (Incl. Ref.
102138
4
Nut-Hex
915740
5
Control-Throttle
79-3330
6
Switch-Ignition (Incl. Ref.
116338
7
Decal-PTO Clutch
78-8440
8
Switch-PTO
78-3030
9
Decal-Lights
78-8490
10
Washer
102250
11
Washer-Special
920259
12
Nut-Hex.
113179
13
Key-Switch
62-7770
14
Nut-Switch
101884
15
Washer-Special
920262
16
Washer-Lock
920160
17
Decal-Ignition
78-8480
18
Meter-Hour (Incl. Ref.
78-0021
19
Decal-5-Speed
117512
20
Clamp-Hourmeter
78-3320
21
Washer-Lock
3253-15
22
Nut-Hex.
915564
23
Nut-Hex
915740
24
Relay
116397
25
Bracket-Fuse Holder
75-5030
26
Screw-Pan Hd.
3250-14
27
Screw
910796
28
Holder-Fuse
120930
29
Screw-Hex. Washer Hd.
79-1590
