> Roth / TORO > Ride-On Mowers > Traktor > 244-5 > 308/72060 > 3900001 > Carburetor and Fuel Pump

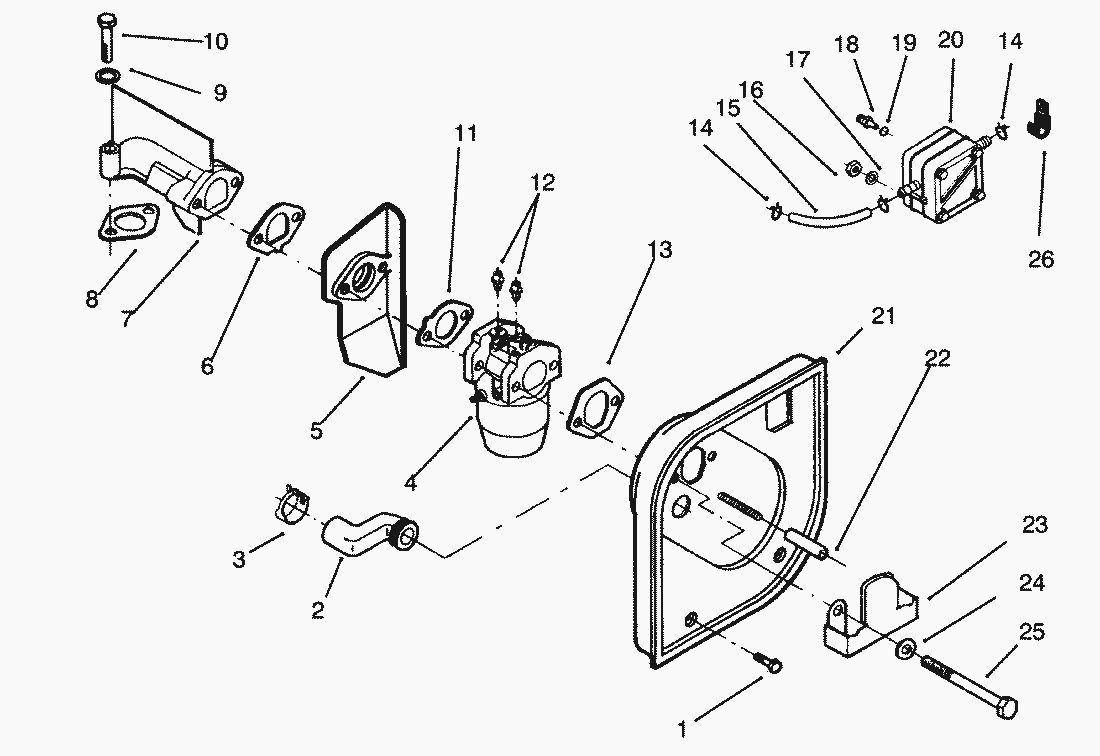

Lista de repuestos para Toro Roth / TORO Carburetor and Fuel Pump




Lista de repuestos


pos.descripciónNúmero de pieza
1Bolt-Hex. Hd.82-1540
2Tube Breather92-5930
3Clamp-HoseNN10812
4Carburetor92-5909
5Insulator-Carburetor92-5906
6Gasket-Insulator92-5908
7Elbow-Intake92-5922
8Gasket-Intake92-5905
9Washer-Flat79-5830
10Screw-Cap Hex. Hd.79-5820
11Gasket-Insulator92-5907
12Clip-Link92-5920
13Gasket-Air Cleaner92-5895
14Clamp-Hose82-1080
15Hose-Fuel92-5868
16Nut92-5871
17Washer-Lock82-1660
18Spud-Fuel Pump92-5929
19Grommet-Fuel Pump92-5869
20Pump-Fuel92-5912
21Pan-Air Cleaner92-5897
22Seal-Air Cleaner92-5931
23Plate-Air Deflector92-5866
24Washer-Flat82-1340
25Screw92-5870
26Clip-WireNN10348
Kit-Carburetor, Float92-5910
Kit-Carburetor, Repair92-5911
