Clutch Assy. 92-1686

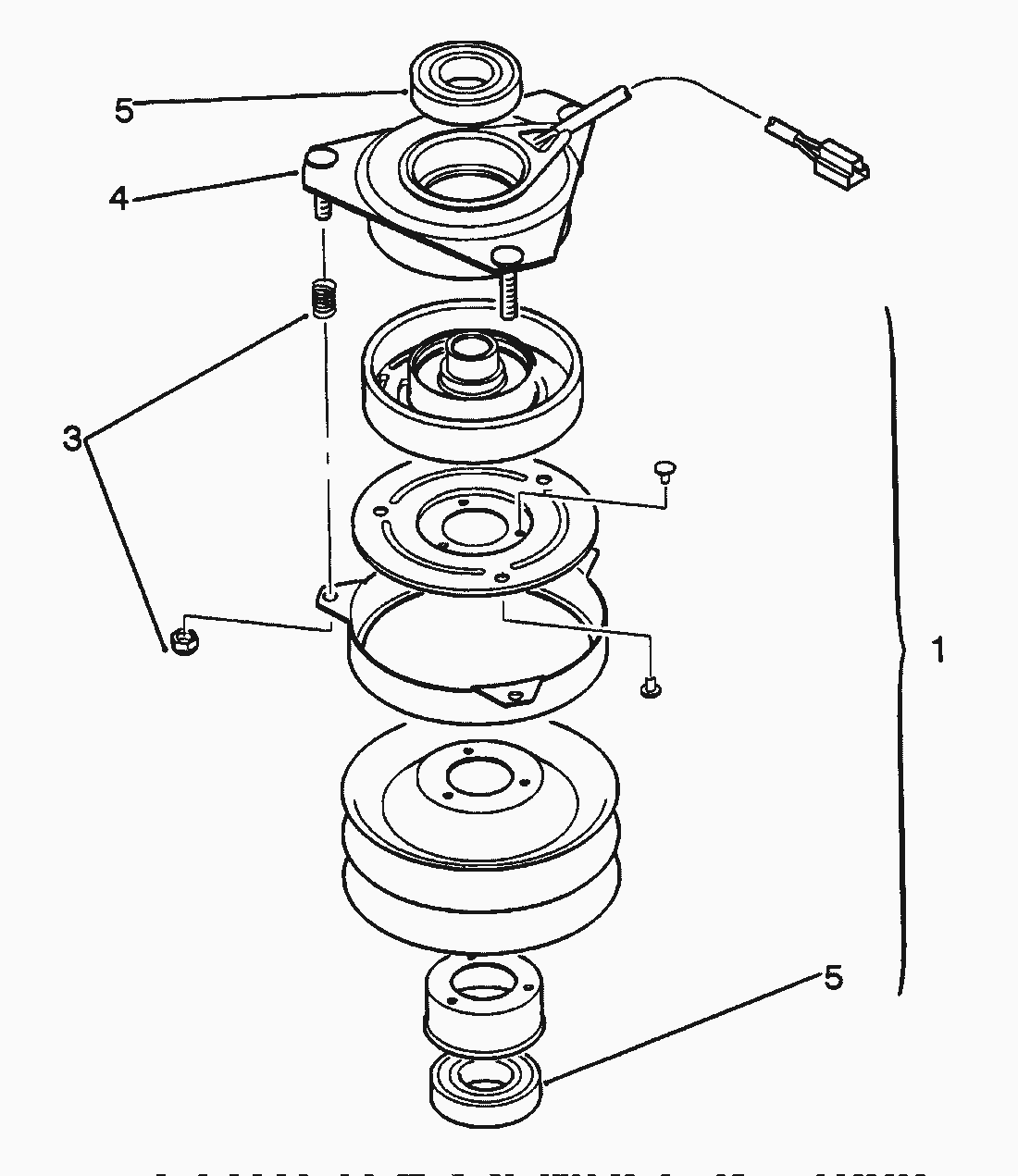

Lista de repuestos para Toro Roth / TORO Clutch Assy. 92-1686
pos.
descripción
Número de pieza
1
Rotor & Armature Assembly Incl. Ref.
92-3015
3
Nuts & Springs (Pkg. of 3 each)
92-3014
4
Assembly-Field (Incl. Ref.
92-3016
5
Ball Bearing
114064
