> Reel-mowers > Accu > TC 32 MAC > Motor, Covers, Battery

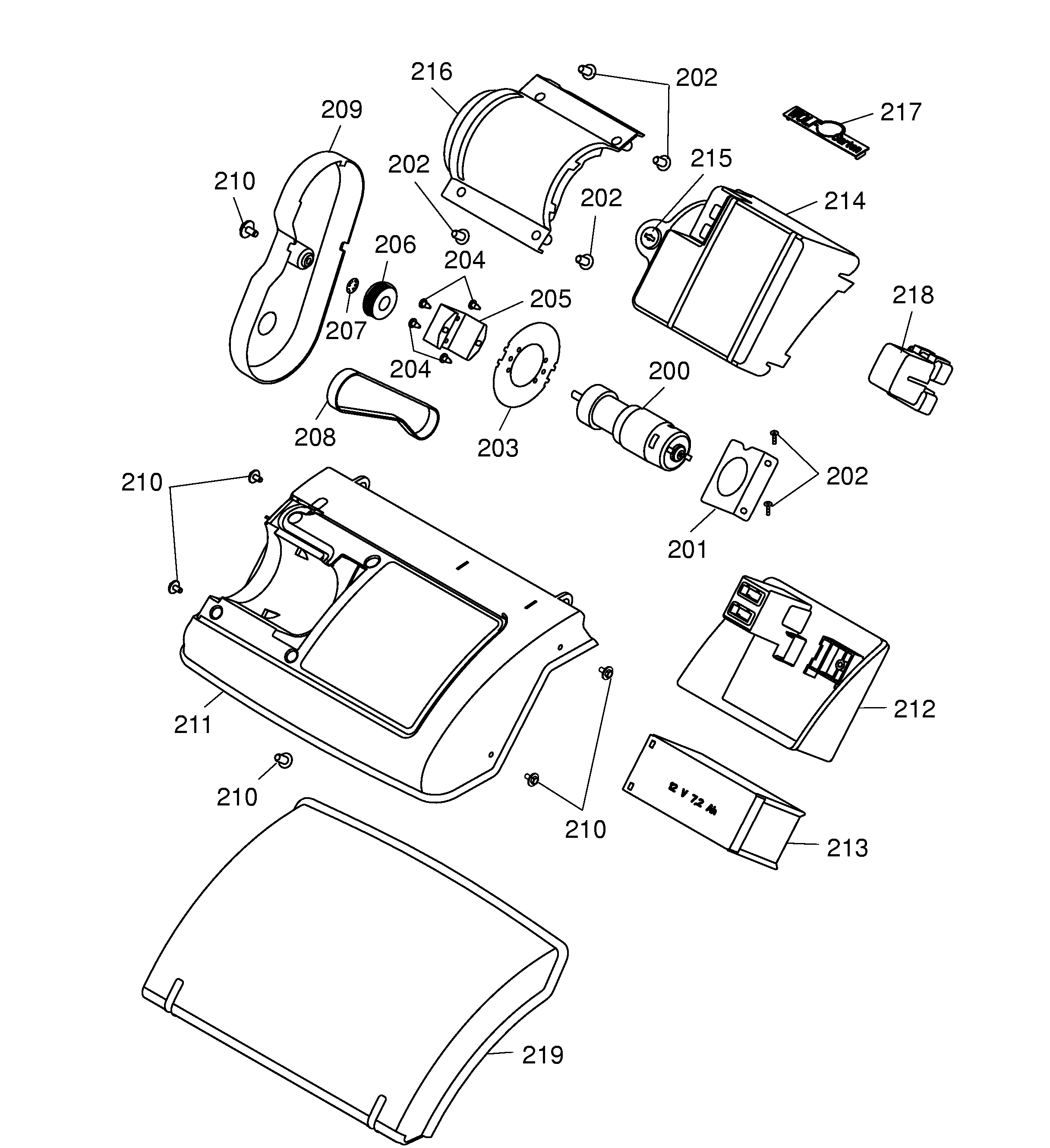

Lista de repuestos para Wolf Reel-mowers Motor, Covers, Battery




Lista de repuestos


pos.descripciónNúmero de pieza
200Planetary Back Geared Motor1068 000
201Motor Holder, Rear3617 108
202Screw0012 630
203Motor Holder, Front3617 103
204Screw0012 854
205Motor Holder3617 150
206Crowm Gear3817 315
207Speedfix Retainer0020 694
208Toothed Belt0039 010
209Cover For Toothed Belt3617 305
210Sheet Metal Screw 4,8X160015 962
211Chassis Cover3617 300
212Battery Case Lower3617 311
213Battery 12 V / 7,2 Ah3617 060
214Battery Case Upper3617 310
215Turn-Lock Fastener3617 317
216Motor Covering3617 303
217Wolf-Garten - Label0051 115
218Connector4911 070
219Rear Flap3620 303
