> Reel-mowers > Accu > TC 32 MAC > Chassis, Wheels, Blades

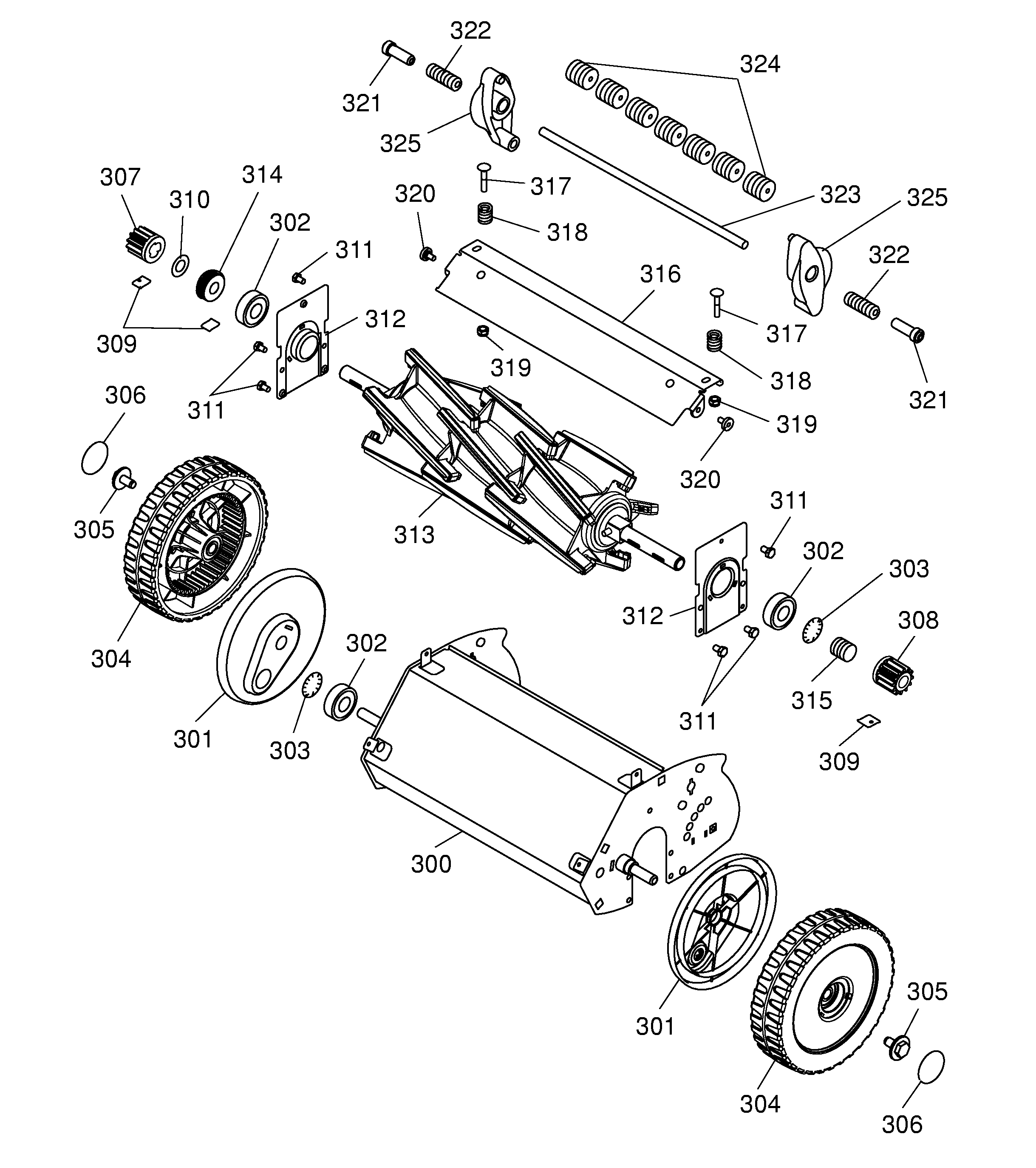

Lista de repuestos para Wolf Reel-mowers Chassis, Wheels, Blades




Lista de repuestos


pos.descripciónNúmero de pieza
300Chassis3617 020
301Protecting Wheel Cap3617 327
302Bearing0023 148
303Circlip0020 701
304Driving Wheel3628 060
305Screw0010 893
306Yellow3625 355
307Pinion, Right3628 108
308Pinion, Left3628 109
309Woodruf Key3628 106
310Washer0017 217
311Hex. screw M6x10 (6 p.)0010 375
312Bearing Shield3616 103
313Cutter Block3617 050
***Tc-M 15 Repl. Blades3628 094
314Crowm Gear3617 316
315Protecting Tube3617 309
316Counter Blade3628 405
317Screw0013 642
318Compression Spring3625 107
319Nut0016 311
320Screw3625 112
321Screw3620 112
322Compression Spring7031 405
323Pivot Pin3620 108
324Roll3628 308
325Screw3628 112
