Scarifiers / Aerators
>
Scarifiers
>
Petrol
>
UV 32 B
>
Handlebar, Height-adjustment

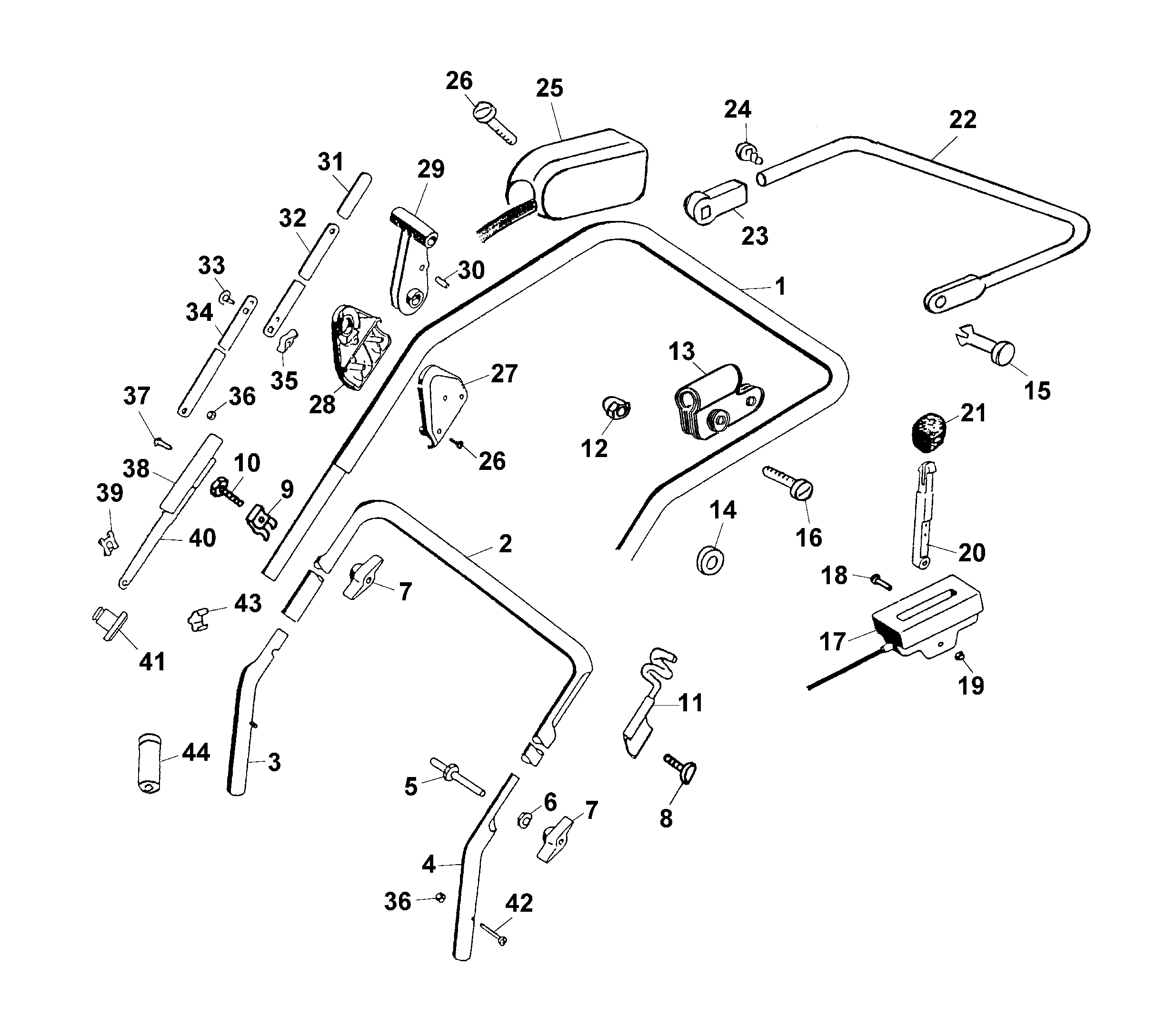

Lista de repuestos para Wolf Scarifiers / Aerators Handlebar, Height-adjustment
pos.
descripción
Número de pieza
1
Upper Handlebar
3586 020
2
Lower Handlebar
3586 120
3
Pipe, Right
3634 127
4
Handlebar Support, Left
3634 125
5
Bolt
3568 520
6
Hollow Disk
0017 275
7
Wingnut
0016 718
8
Screw
0013 525
9
bend protection
4950 308
10
Screw
0010 340
11
Guide-Rope
6340 014
12
Nut
0016 641
13
Clamp-Casing
4720 105
14
Distance Disc
4240 205
15
Bolt
4720 109
16
Screw
0012 211
17
Bowden Wire With Case
3586 055
18
Screw
0012 244
19
Hex. Nut
0016 310
20
Gear Lever
6340 110
21
Button
4180 115
22
Bracket Bracket
4940 107
23
Bushing
4940 105
24
Screw
0015 820
25
Switch
3586 056
26
Screw
0012 625
27
Case, Left
3632 323
28
Case, Right
3632 322
29
Lever(Replaces 6930506)
3568 318
30
Bolt
3568 213
31
Insulator
3835 212
32
Connecting rod, upper
3568 133
33
Screw
0013 640
34
Connecting Rod, Middle
3568 132
35
Wingnut
3568 308
36
Hex. Nut
0016 310
37
Screw
0012 864
38
Connector
3568 111
39
Retaining Clip
0020 981
40
Connecting Rod, Lower
3568 134
41
Bolt
3568 524
42
Screw M 5X40
0012 867
43
Cable Clamp
4950 307
44
Closing Cap
6340 125
